The 5030 a easily accommodates the inspection of hand baggage and parcels.

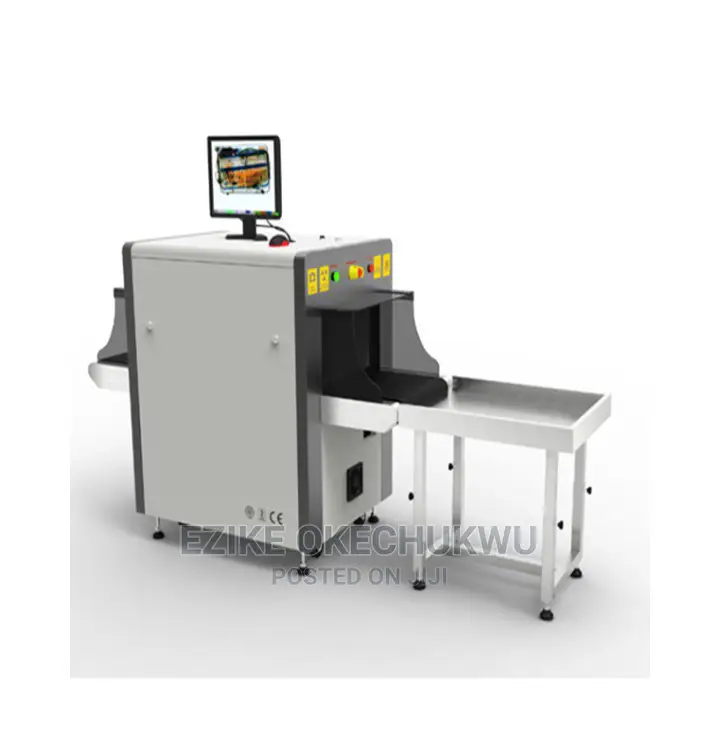

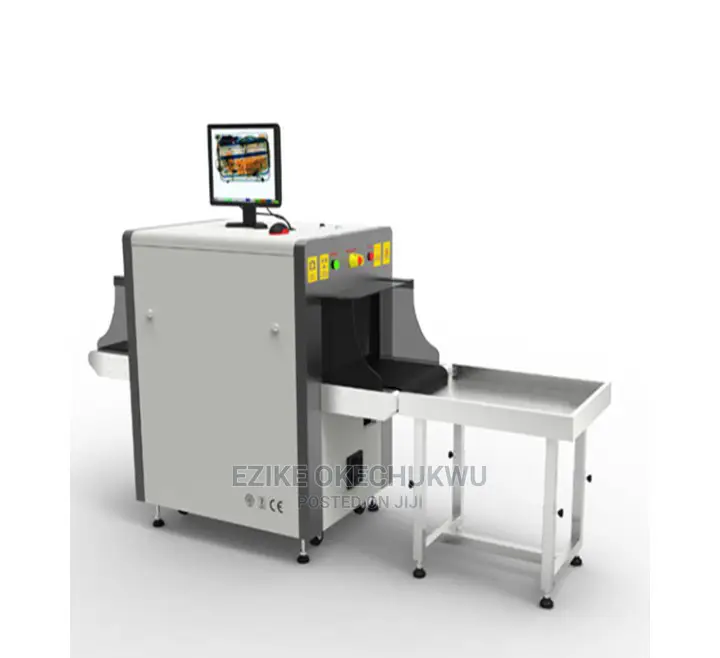

this small and light baggage x ray scanner 5030 a is designed for quick and easy use where small parcels and bags needs to be scanned. it is very cost-effective and compact mobile conveyor type system. it is best model for use in events, schools, small offices, institutes and hospitals etc.
general specification
unpacked dimension: 1660(l)*746(w)*1165(h)mm
weight: 400kg
tunnel size: 500(w)*300(h)mm
conveyor speed: 0.22m/s
conveyor max load: 150kg
conveyor belt direction: bi-direction
conveyor height: 663mm
wire resolution: 38awg standard, 40awg typical
steel penetration: 10mm typical
film safety: guarantee iso1600 film
x-ray leakage:<1μsv/h (at a distance of 5cm from external housing)
