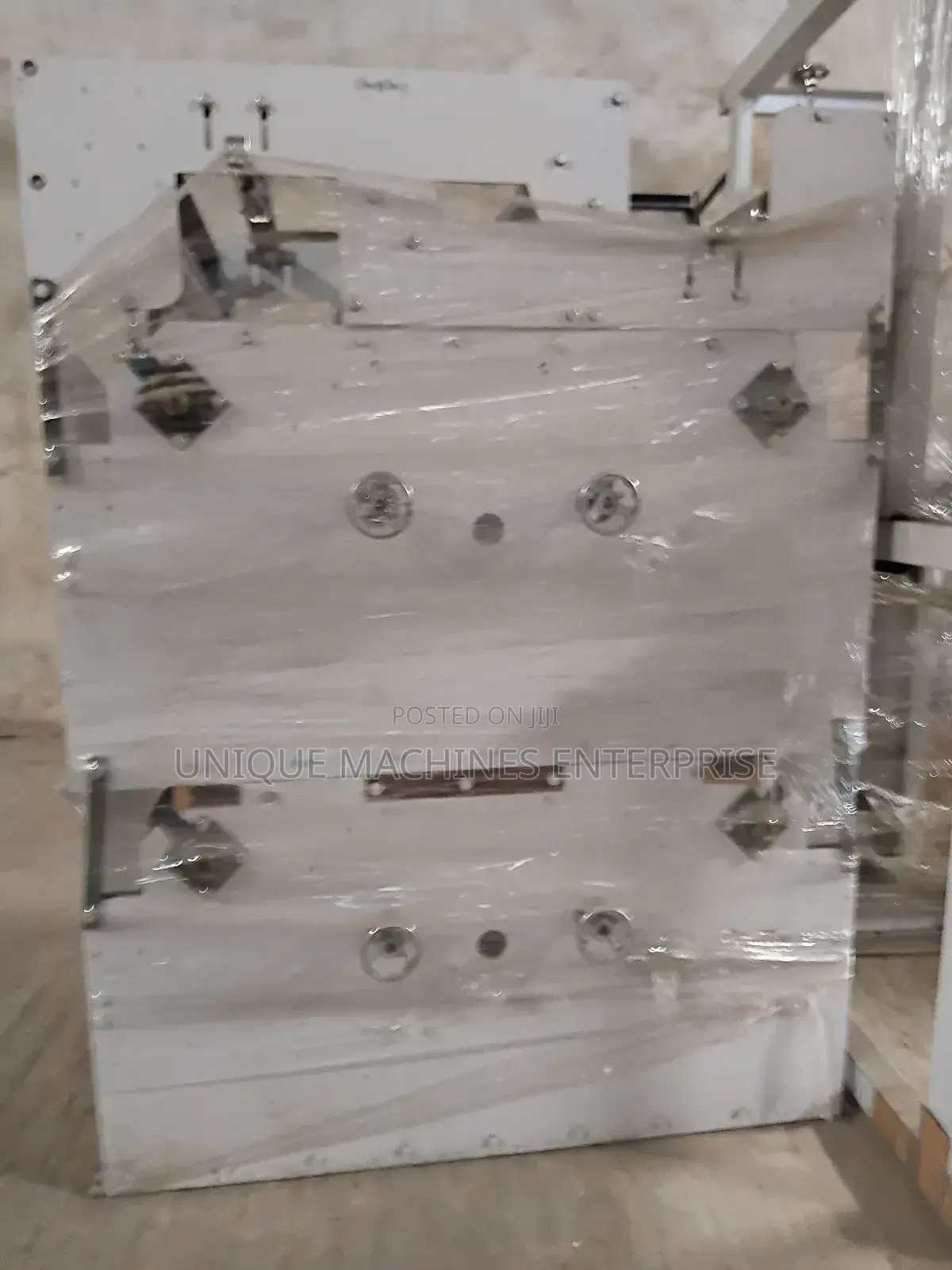

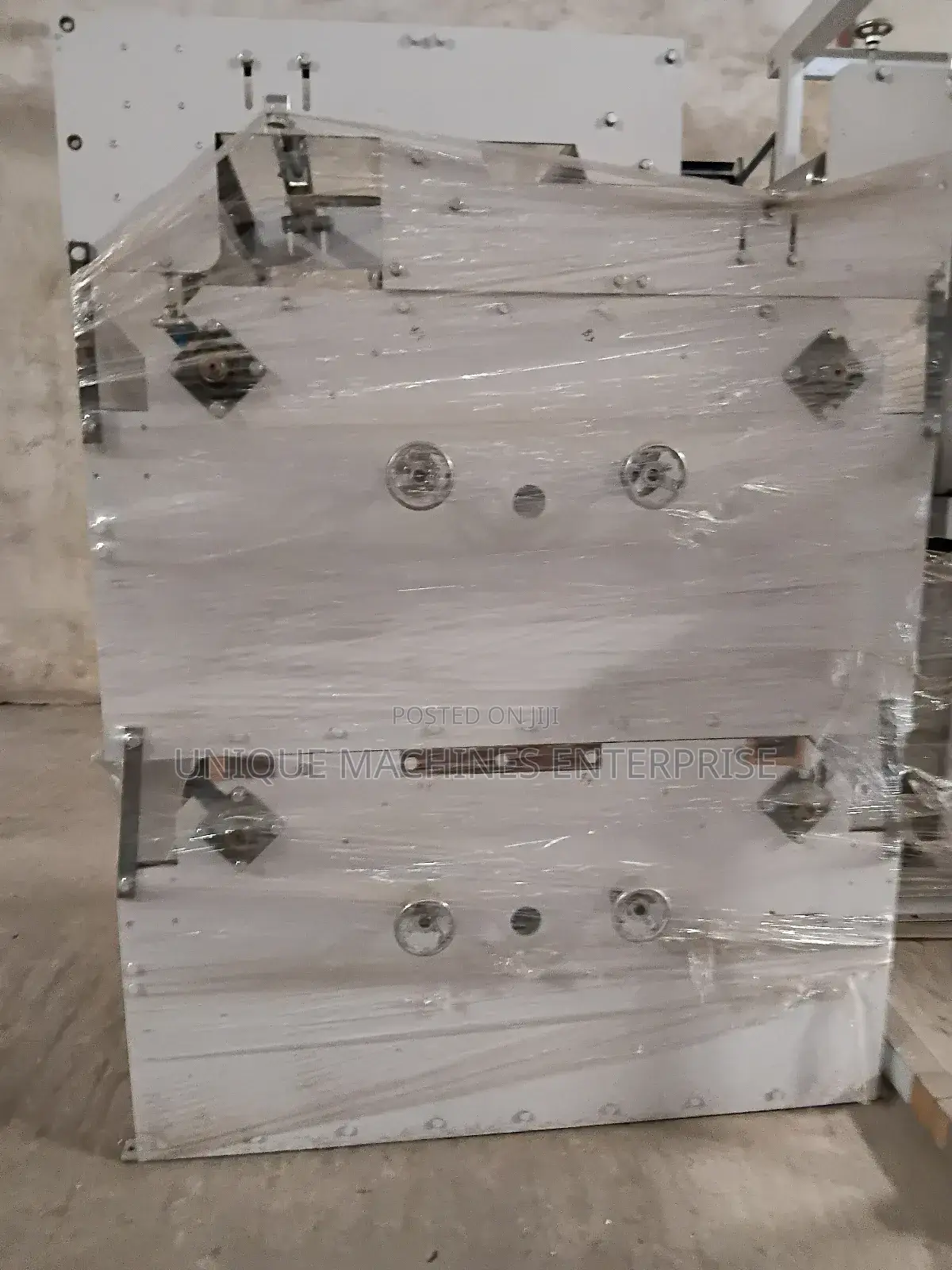

Gravure Printing Machine Nylon Printing

+1

Graveure nylon

Type

Brand New

Condition

Store address

4

+1

images

Lagos State • Ojo

448 Satelite Town Old Ojo Road Opposite tradefair Lagos

Abuledo Bustop divert into Old Ojo Road Stop at Divas Cake then call me

Closed now

• Mon - Sat, 09:00-18:00

Gravure Printing Machine is used in flexible packaging manufacturing and printing process including polyester, Nylon, Bopp, Foil, low and high density polyethylene polypro plane and paper with two sided printing facilities with high speed hot air dryers. Main Parameter Printing color: 2 Max. Material roll width:1030mm Max. Printing width:1000mm Max. Machine speed:60m/min Max. Printing speed:10-50m/min(decided by the material, platen diameter, ink characteristics and worker level) Rewinding and unwinding max. dia:600mm Printing platen dia.:100mm-270mm accuration:lengthways 0.15mm Crosswise 0.15mm tension scale:3-50kg 10. tension accuration : 0.5kg 11. drying way:electric heating, each group 9kw 12.Main motor:frequency motor 13. Machine total power:30kw
