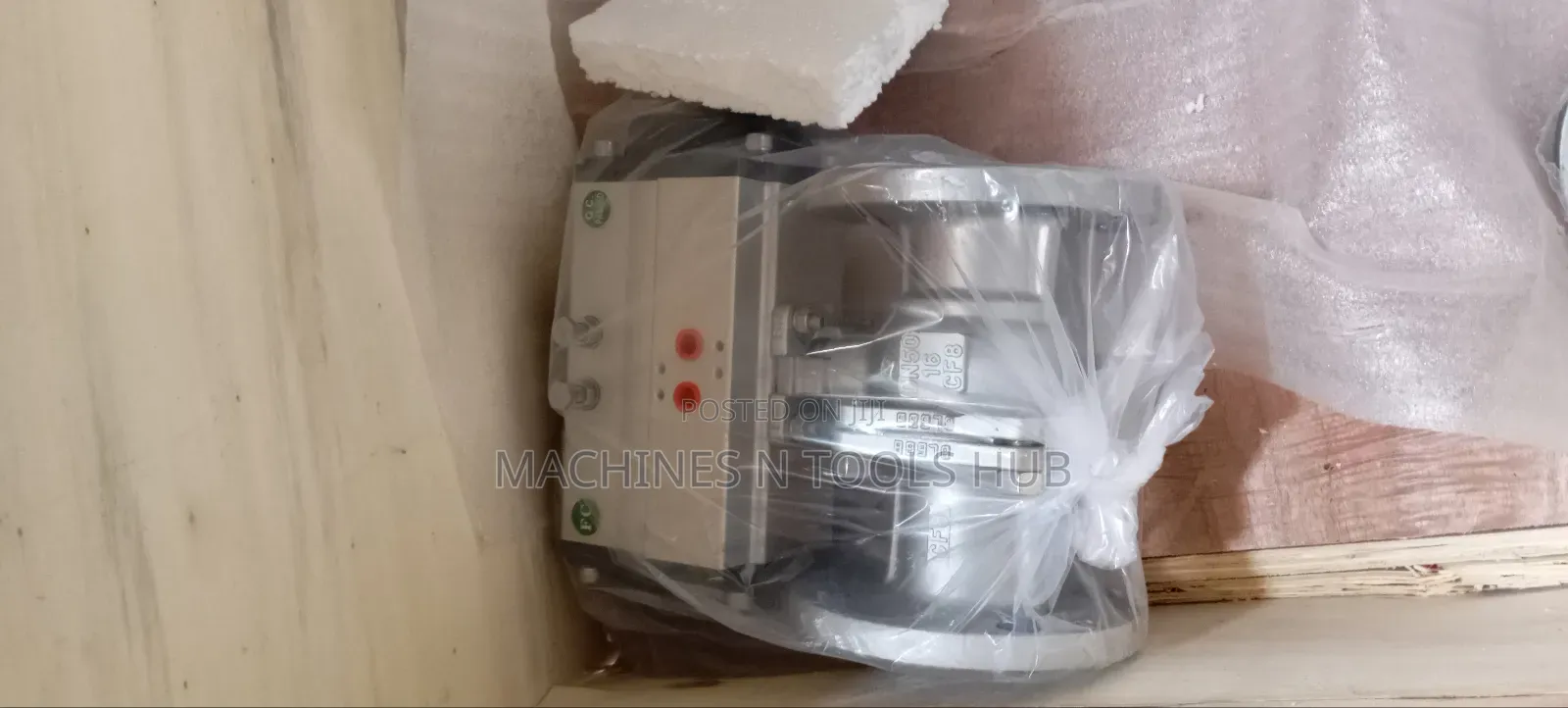

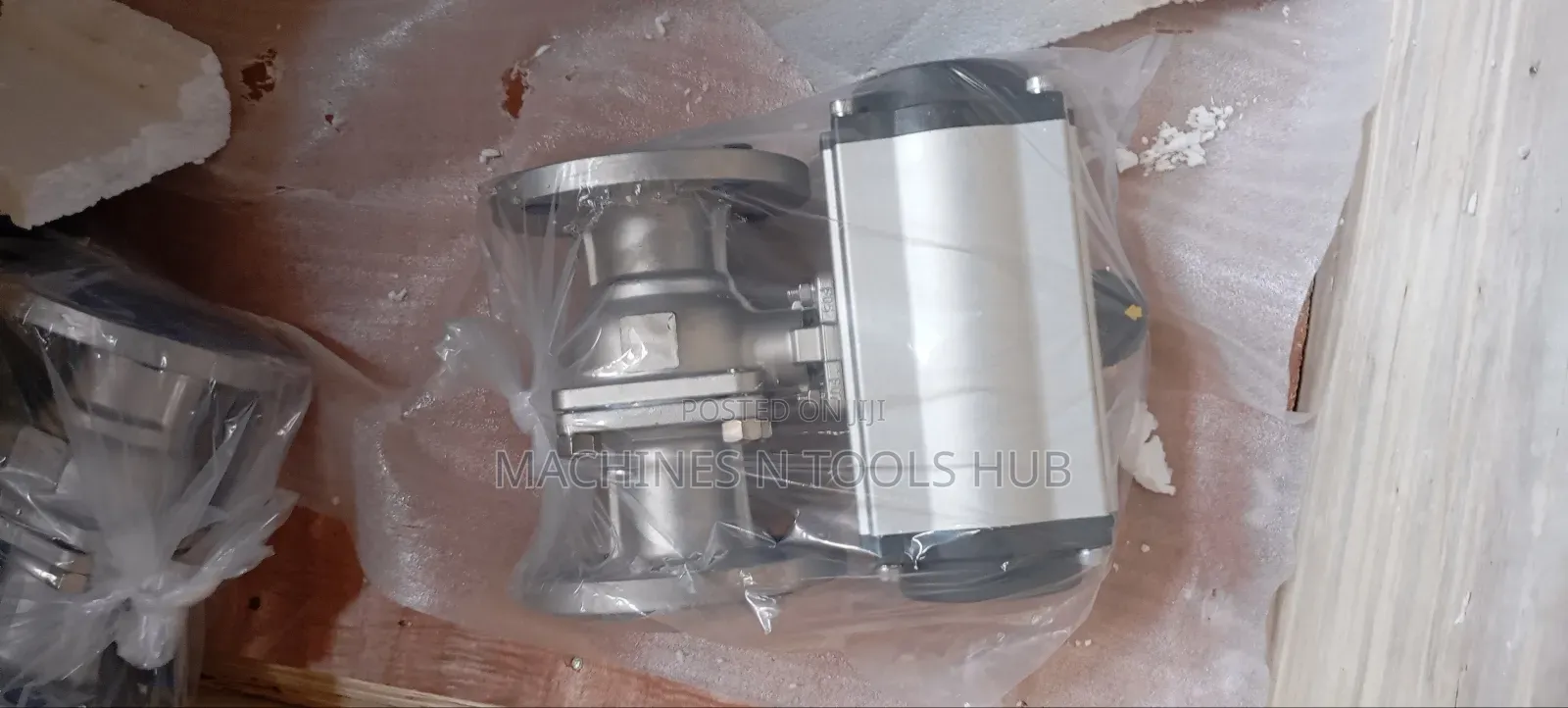

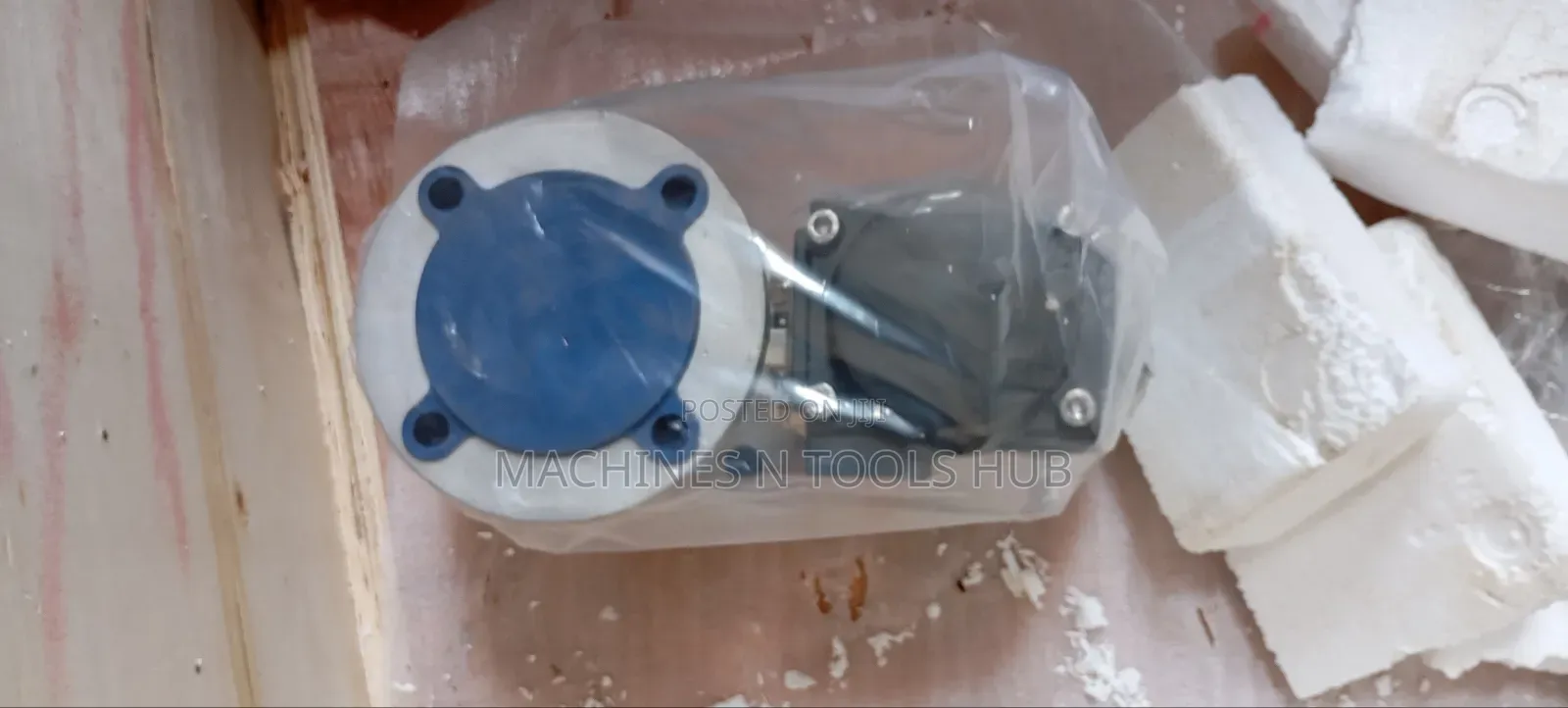

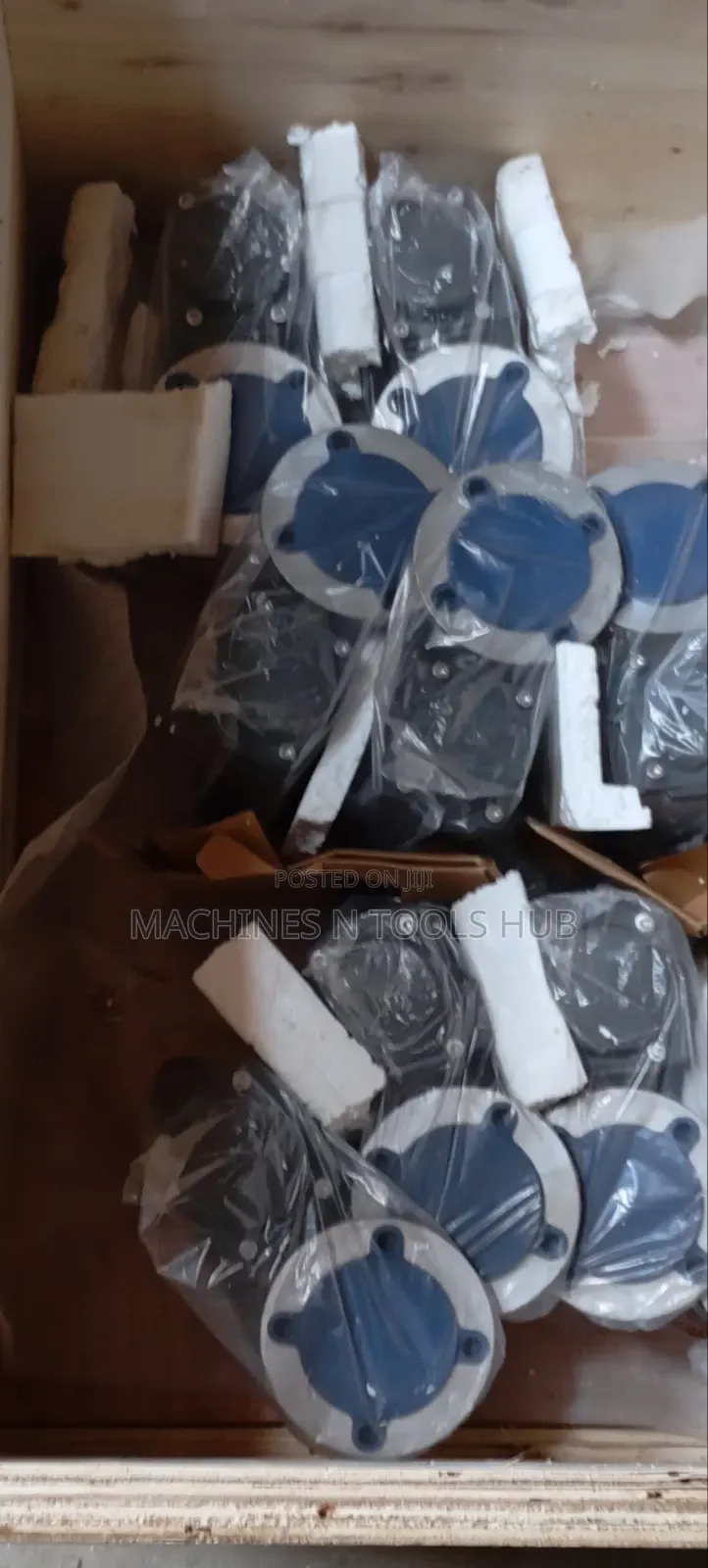

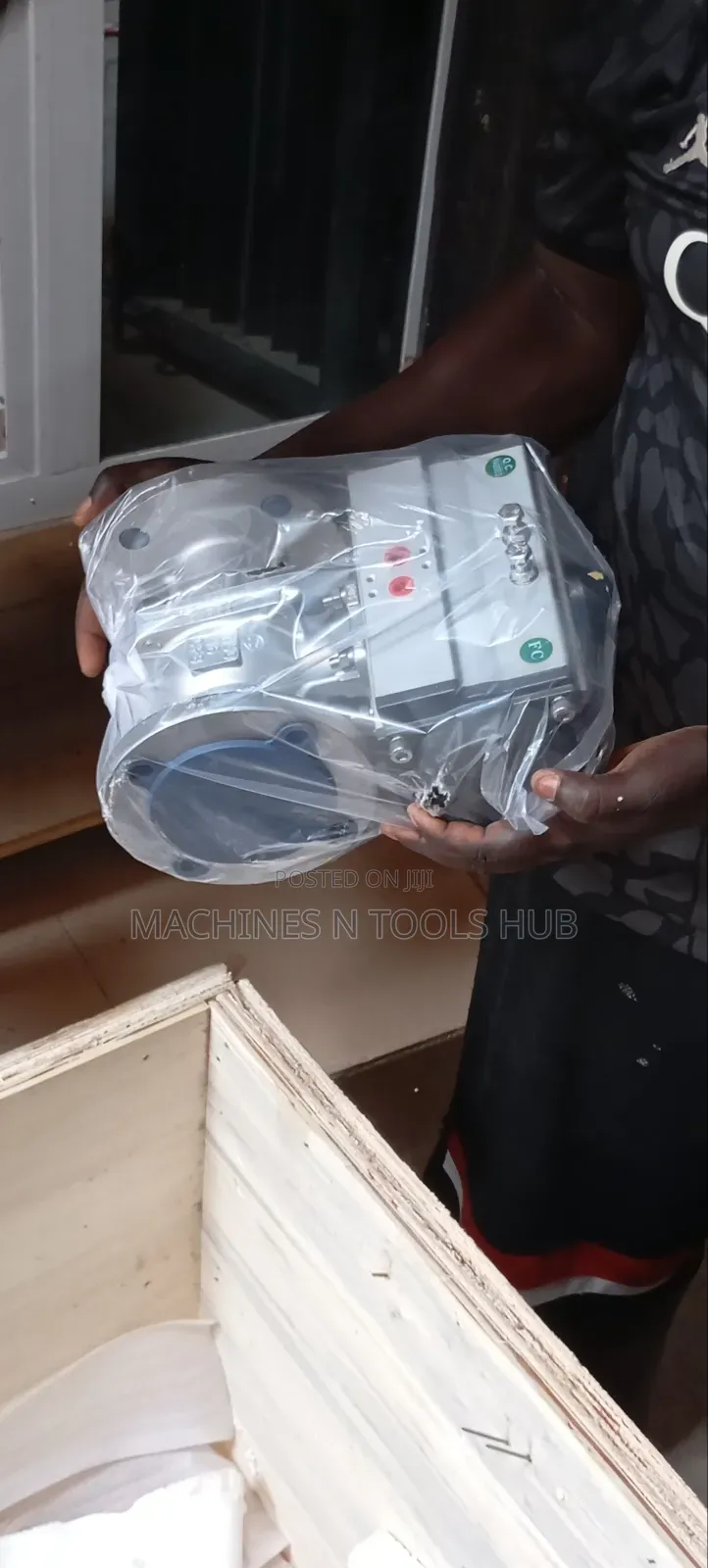

Dn50 2 Inches Ball Valve Actuator 8 Bar
Valve Actuator
Type
Brand New
Condition
13kg
Weight
Store address
Verified
Verified
4
Lagos State • Ojo
F304 & F62up F line Alaba int'l market.
Open now
• Mon - Sat, 08:00-18:00
Verified
4
Lagos State • Ojo
Alaba Market/ f304 alaba international market
Open now
• Mon - Sat, 08:00-18:00
DN50 Ball Valve Actuator 8 bar
Key Specifications:
Nominal Diameter (DN): 50mm (2 inches)
Pressure Rating (PN): PN40
Temperature Range:
Ball valve: -20°C to +180°C, but this can vary based on pressure and media.
Pneumatic actuator: -20°C to +80°C.
Actuator Type: Pneumatic (air-operated) or Electric.
Control Options:
Pneumatic: Single-acting (spring return) or double-acting.
Electric: 2-position (on/off), 0-10V, 4-20mA, KNX, or Modbus.
Applicable Media: Water, petroleum, acids, slurries, and various other fluids depending on the valve and seal material.
Aluminum with various seal options like NBR or FKM, depending on temperature requirements.
Interface: Namur interface (VDI/VDE 3845) for solenoid valve mounting.
Spring Return: Pneumatic actuators can be spring-loaded for fail-safe operation (e.g, spring-open or spring-closed).
