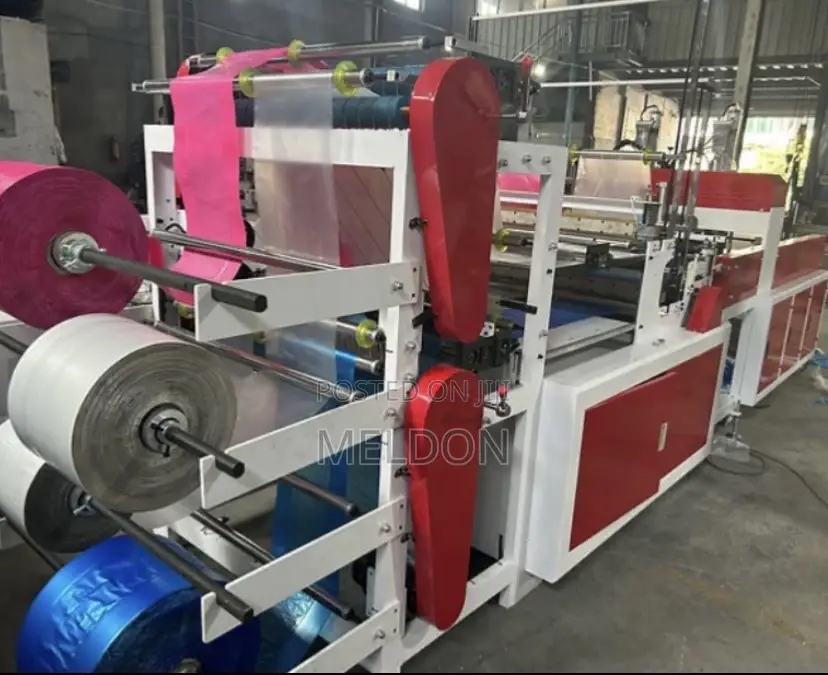

This machine is equipped with photoelectric eye tracking, the main motor is frequency-converted and speed-regulated, and the operation is stable and the bag-making precision is high.
1. The whole machine is controlled by a computer touch screen, the length is fixed by a stepping motor, and the material is fed by a DC motor.
2. Arbitrary fixed length, step length photoelectric tracking, accurate and stable.
3. It has automatic functions such as feeding, sealing and cutting, counting, discharging, and alarming.
Parameter
Model
HC-LQ900X4
Bag Width
50-400mm
Bag Length
50-800mm
Bag Thickness
0.02-0.15mm
Speed
20-120 pcs/min
Main motor power
1.1KW 6 grade
Heating power
6.0KW
Stepping motor power
50NM
Unwinding motor power
0.4kWX4
Total power
10KW
Voltage
380V 50Hz
Machine weight
1800KG
Dimension
5520x1490x2100mm
