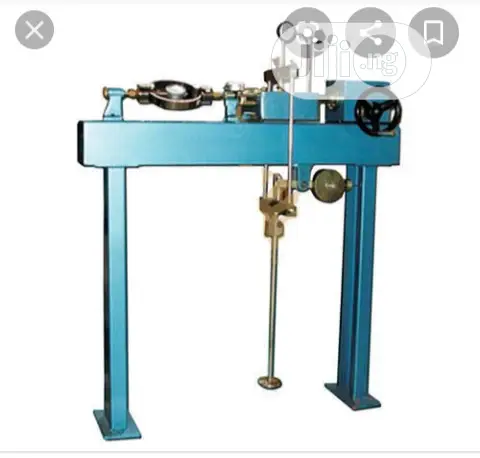

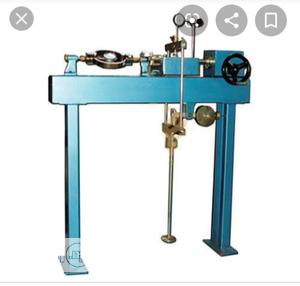

Direct Shear Test Apparatus

+1

2

Store address

Lagos State • Amuwo-Odofin

23 Prudence Plaza Tools & Hardware Center Ojo Trade fair Complex Badagry Exp way Lagos

From Lagos island or ikeja get to mile 2, from mile 2 get to trade fair Complex Badagry Exp way Lago

Closed now

• Mon - Sat, 09:00-18:00

4

+1

images

Lagos State • Surulere

Shop12 Justice plaza tools and hardwares trade fare international market

Closed now

• Mon - Sat, 09:00-17:00

The Direct Shear test is carried out with an apparatus consisting of a square divided into two halves. The specimen, contained in the box, is subjected to a constant normal load while an increasing horizontal force is applied to one of the sections of the shear box. This force causes a shear failure along the junction between the box sections. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has V-strips on which the shear box housing rests. Suitable for specimens of size 60x60x25mm. The precalibrated load yoke helps counter balance the loading system. The load yoke with direct and through lever system for applying normal load upto 3 kg/cm2 capacity, fixtures for proving ring, brackets for holding consolidation and strain dial gauges are provided. The lead screw connected to the shear box housing helps application of shear stress.
