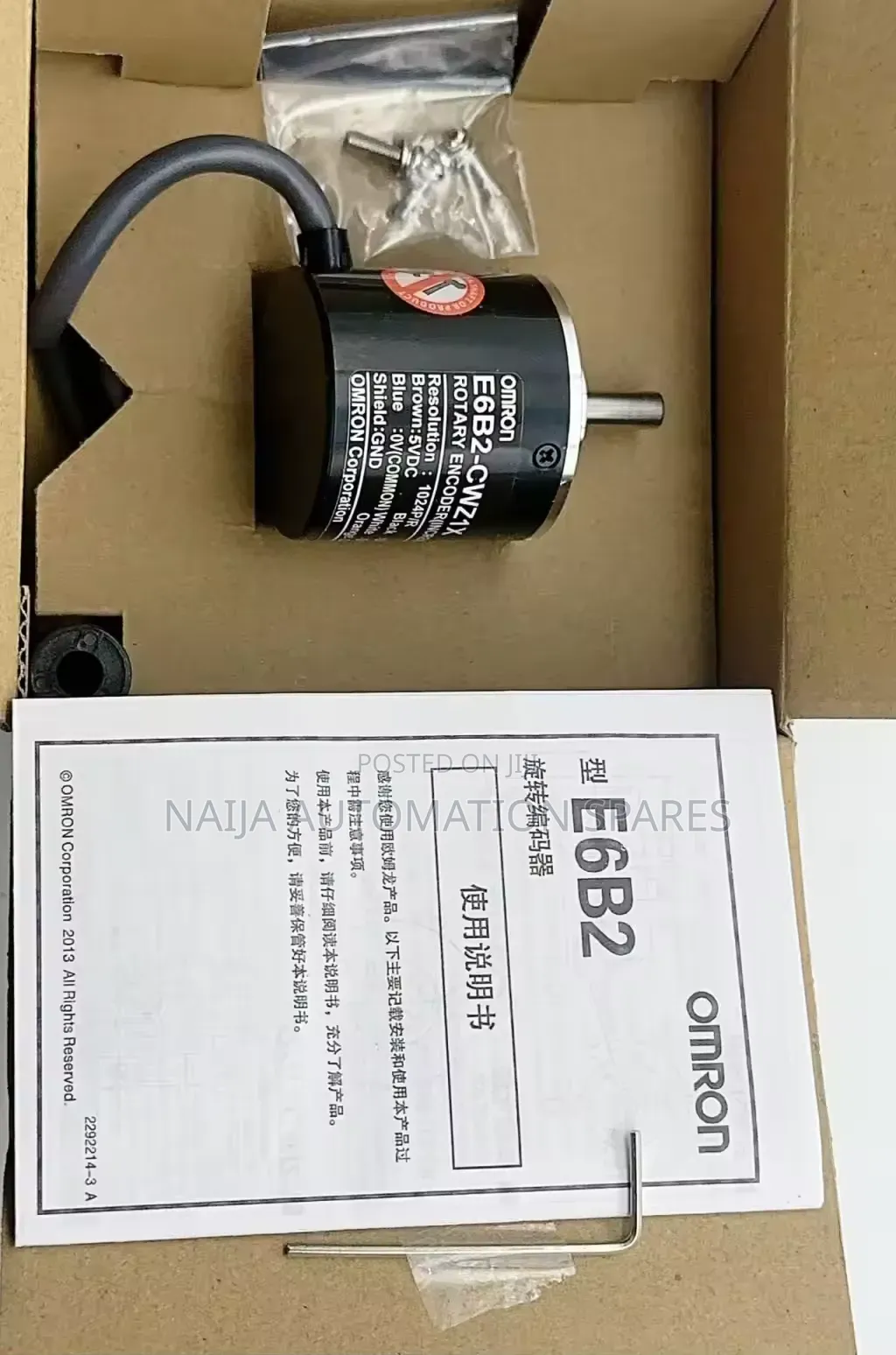

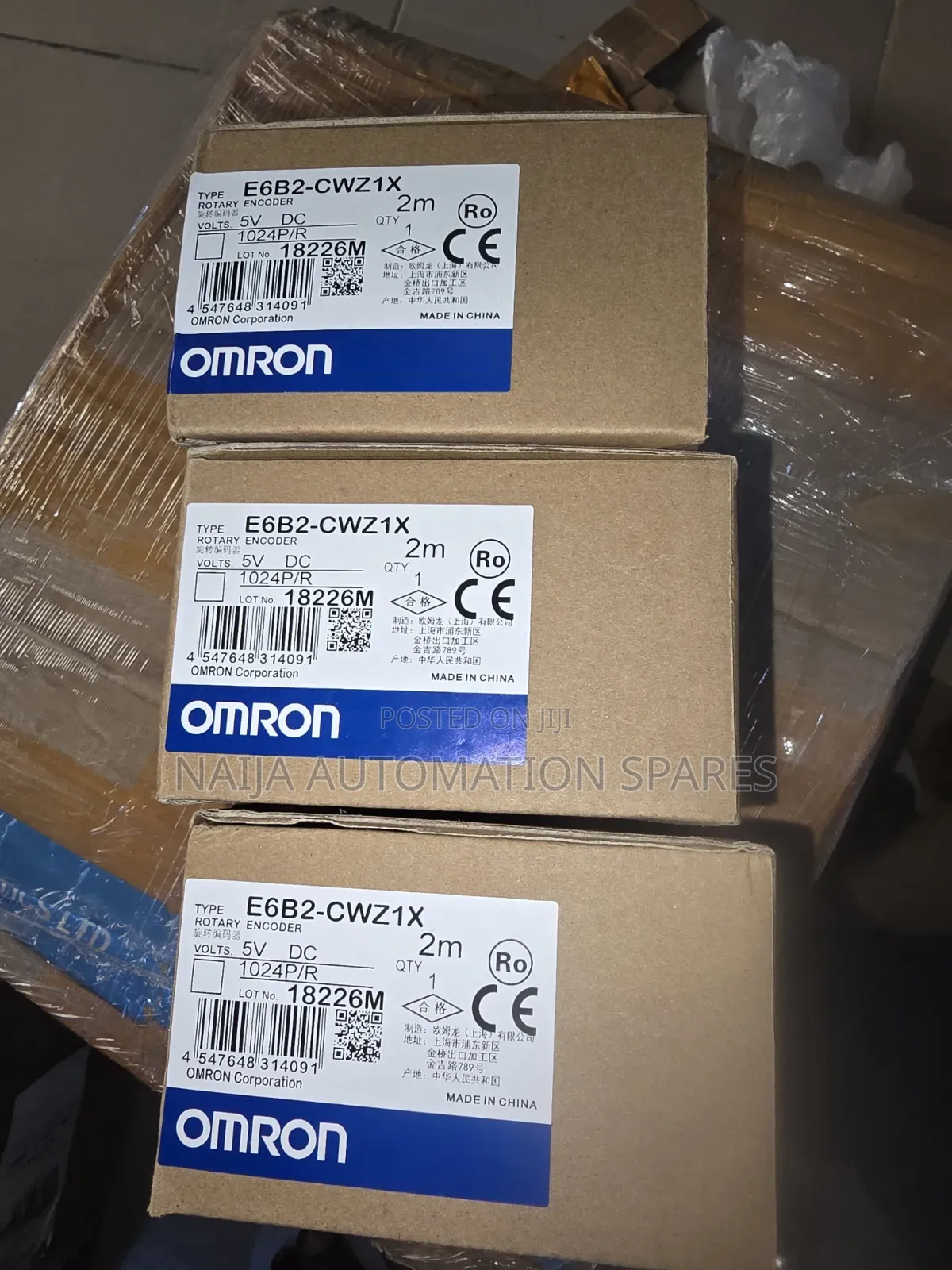

Omron | E6b2-Cwz1x | 1024p/R Incremental Rotary Encoder
Industrial Module
Type
Brand New
Condition
Store address
Abuja (FCT) • Life Camp
No. 1 Aliyu Mohammed Rd. Jabi-Lifecamp, Abuja FCT, Nigeria.
Closed now
• Mon - Sat, 08:00-17:00
Rotary encoder incremental type general-purpose type outer diameter ø40 E6B2-CWZ1X 1024 P/R
Key Specifications
Resolution: 1024 pulses per revolution (PPR)
Body Diameter: 40 mm
Shaft Type: Solid shaft with a 6 mm diameter.
Power Supply: 5 VDC (4.8 to 5.2 V)
Output Configuration: RS-422 Line Driver for clean, noise-resistant signals
Connection: Attached 0.5-meter cable with bare flying leads
Maximum Speed: 6000 rpm
Environmental Rating: IP50 dust protection, rated for -10°C to +70°C
