Detailed Product Description
Series: Retractable Hydraulic Bollard Product Name: Bollard Light
Material: 304 Stainless Steel Motor Power Supply: Motor Power Supply
Control Power Supply: 3-4sencod Warranty: 1 Year

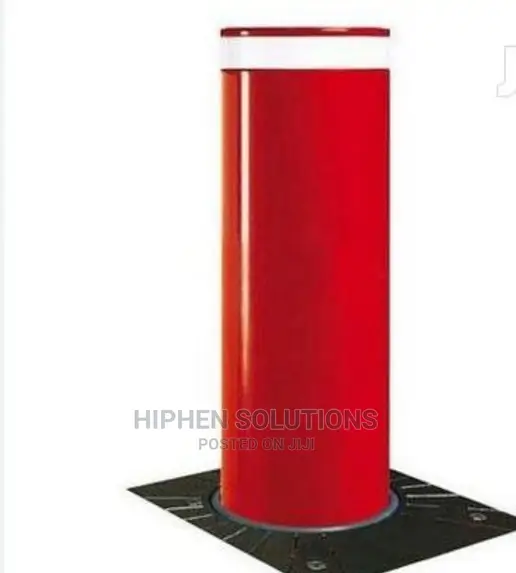

Standard Inground Traffic Stainless Steel Bollards 160kg PC Reflective Blocker
steel pillar bollard Warranty: 1 year
steel pillar bollard Bollard diameter: 219-275mm
steel pillar bollard Surface:: Polish/Coating
steel pillar bollard Maintenance cost: Low
steel pillar bollard Lifting speed: 3-6s
steel pillar bollard Color: optional
The automatic Bollard is an electric-hydraulic-mechanically operated retractable bollard system.
The system can be quickly and easily operated. It is suitable for both security and access control applications.
The system is designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter access without providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.
1. Material: cast steel ,
2. Technics : Precision Cast
3. Surface :Mirror or Satin polished, Galvanized.
4. Products could be made conformity with JIS Type, EU Type, DIN Type
5. Delivery time:25-30 days after receipt of deposit.
7. Certificates: ABS, GL, LR, BV, SGS and CE
8. High qulity, good service, competitive price
9. Stangdar:ISO900*********. Technical Parameter
1 Material 304# stainless/iron
2 Motor power supply AC380V 50/60Hz
3 Control power supply AC220V 50/60Hz
4 Rising time 3~4 second
5 Falling time 2~3 second
6 Inner tube diameter 168/219/273mm (D)
7 Rising height 400-1000mm (H)
8 Rising load ≥400Kg
9 working temperature -30°C~ +70°C
10 Operation way manual/remote control / keyboard
1. Different thickness of steel is available
2. Different grade of reflective film is available : High-Intensity Reflective Film , engineering grade sheet
3. supper grade sheet
4. Different standard color is available
5. Customized design and size
6. Steady and safe due to the Omron plc control system
7. Speedy and durable due to the use of hydraulic pressure
8. Lower down the bollards by handle valve in case of power failure or fault of automatic system
9. Raise up the bollards by handle pump in case of power failure or fault of automatic system
10. Galvanization is durable and stainless
11. Optimization of frame structure, high anti-impact capability, high loading capability
12. Protecting key avoids mis-operation
High security and anti-collision ability
FAAC hydraulic unit which is built-in bollard could provide large power safely for a long time.
Automatic fall/rise in the case of outage (optional)
Reflective band and LED light
3M Diamond series reflective band
Various color options for Glossed reflective band; only need weak light to be clearly visible at night.
Low energy consumption LED light ensure safe at night
304 stainless steel
316 stainless steel
Carbon steel with galvanized and powder coated
