Slotting Machine
Brand New
Condition
Other
Type
Store address
Verified
Verified
4
Lagos State • Surulere
Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex
Closed
• Mon - Sat, 08:00-17:00

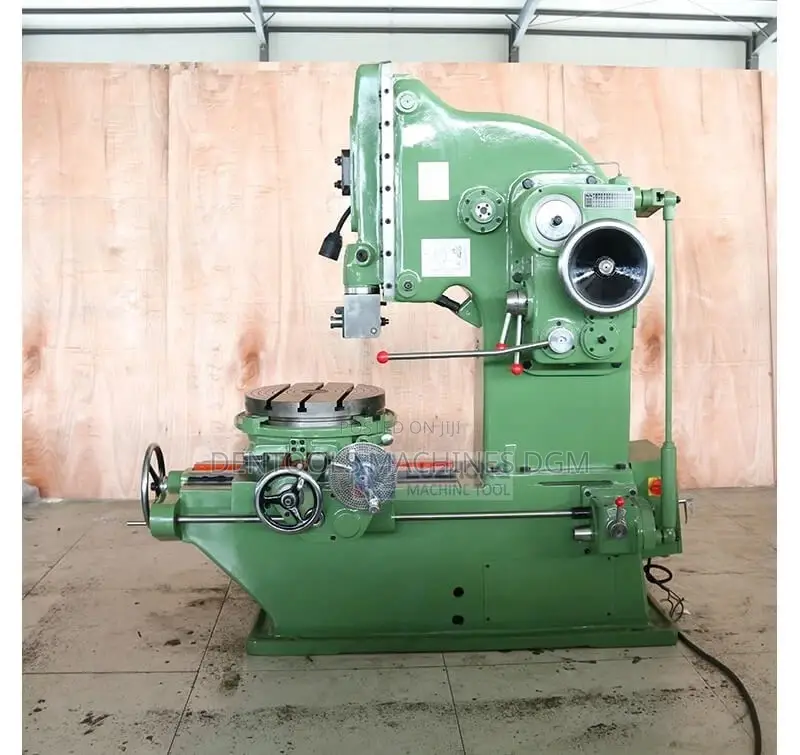

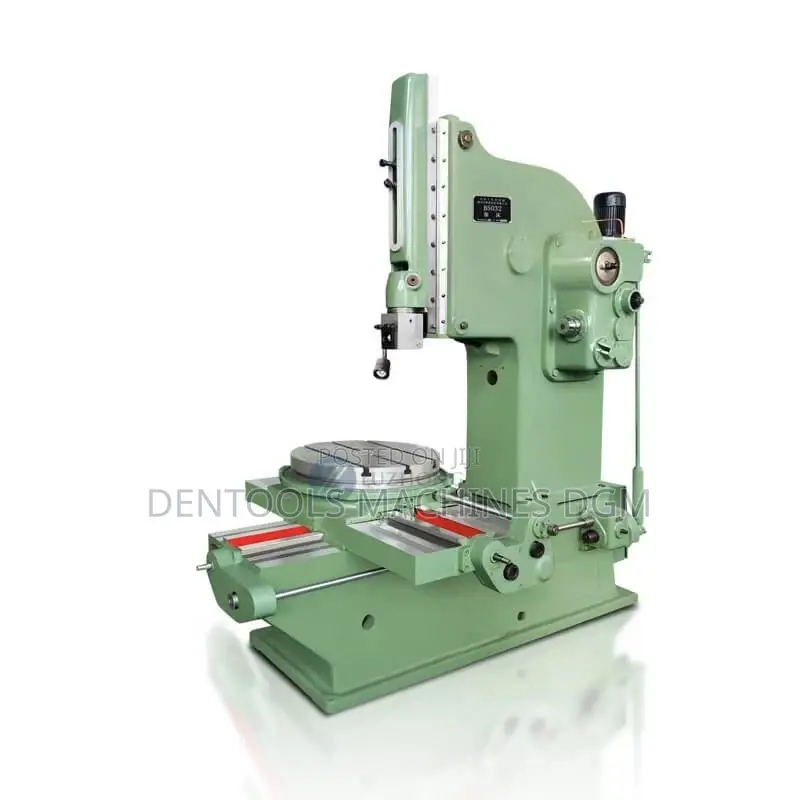

B5032 Vertical Slotting Machine
Product main technical parameters:
Model: B5032
Max. stroke of RAM: 340mm
Ram maximum slotting length: 320mm
Ram motion frequency times/min: 20.32.50.80
Ram tilt angle: 0-8 °
Ram vertical adjustment distance: 315 mm
Cutter head bearing surface to the distance between the forearm bed: 600mm
Table Diameter: 630 mm
The distance between the lower end of the sliding frame to work table
: 490 mm
Max. longitudinal moving distance of working table: 630 mm
Max. transverse moving distance of working table: 560 mm
Table maximum rotation angle: 360 °
Vertical and horizontal table power feed range: 0.08-1.21 mm
Table rotary feed range: 0.052-0.783 mm
Motor power: 4 Kw
Motor speed: 960 r/min
Machine weight: 3000kg
Outline dimension: 2261*1495*2245 mm
Application:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,
₦ 12,500,000
