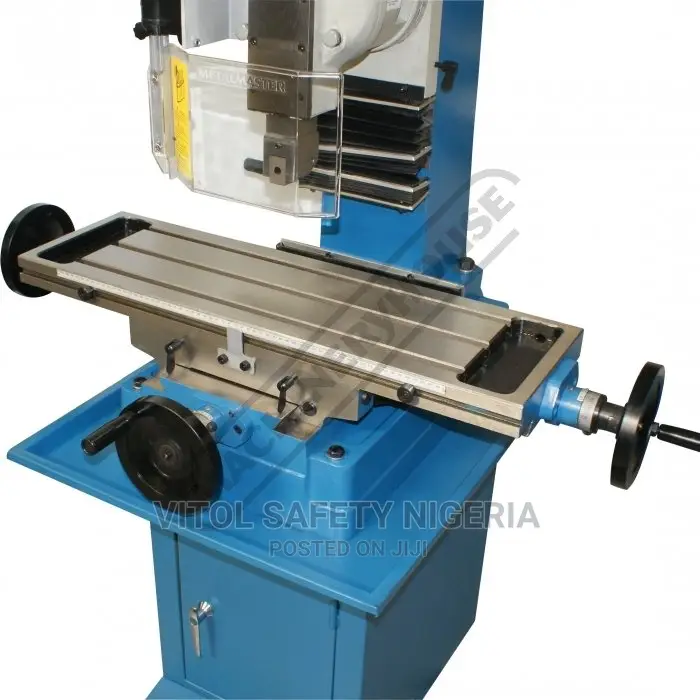

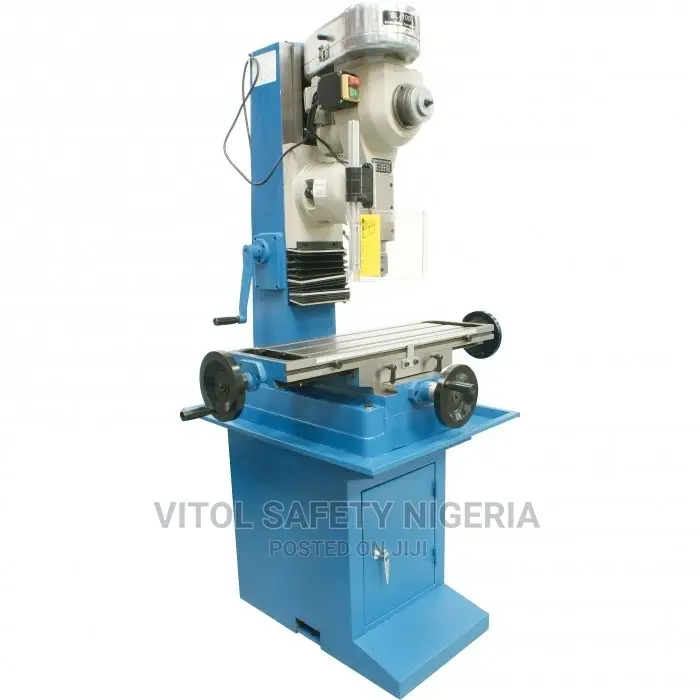

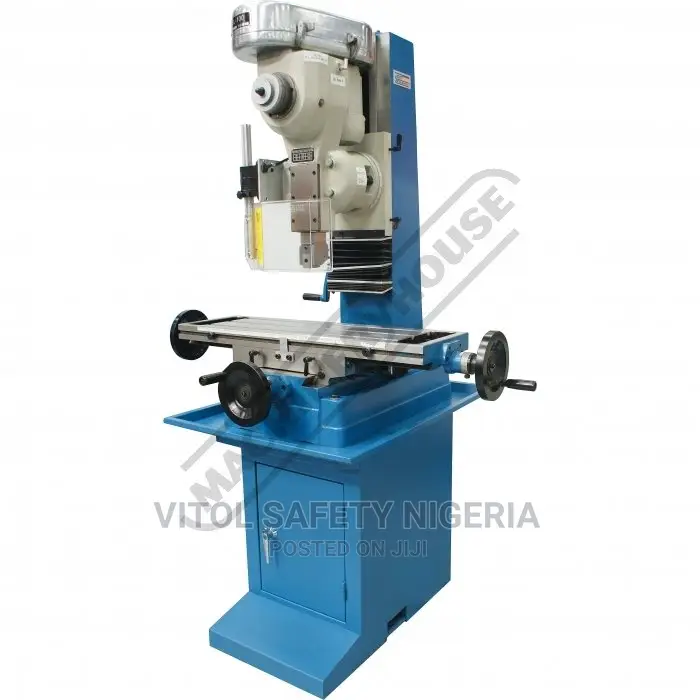

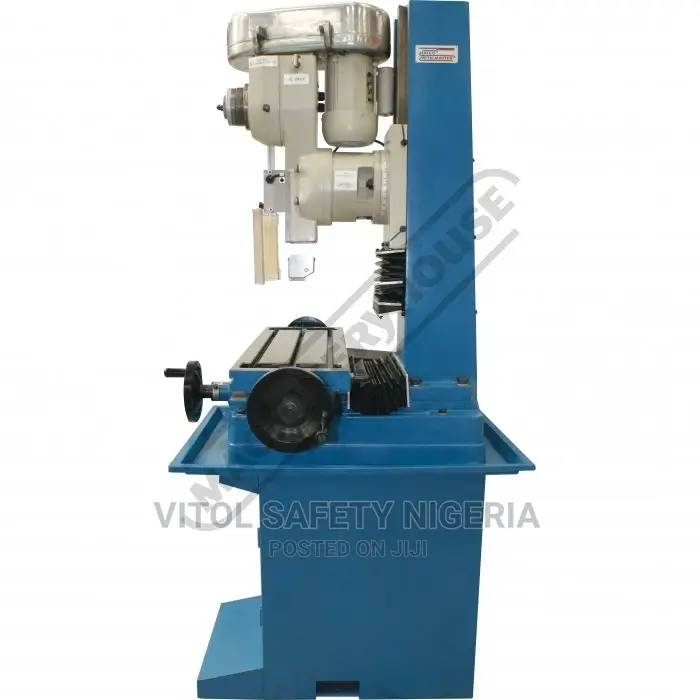

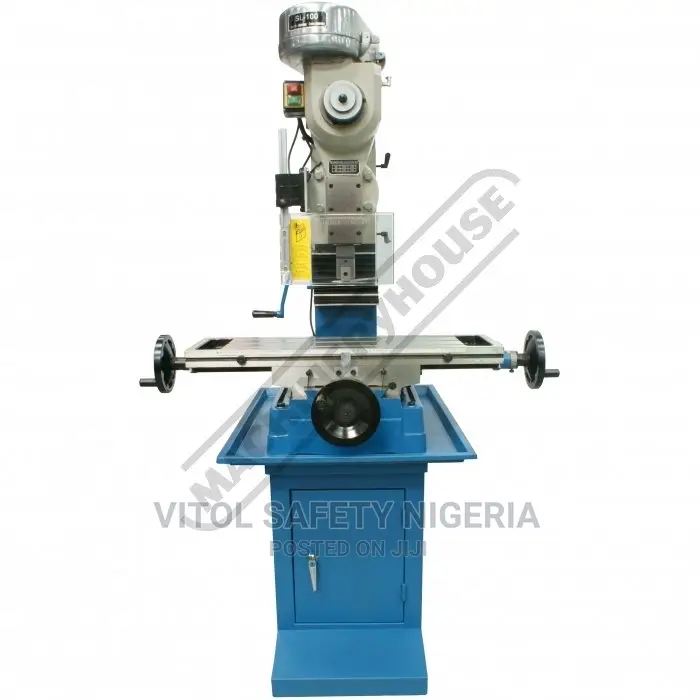

SL-100 - Swivel Head Slotting Machine
100mm Stroke
Features
Heavy duty cast iron construction
Swivel head tilts left and right 90o
Dovetail vertical Z-Axis
0-100mm machining stroke range

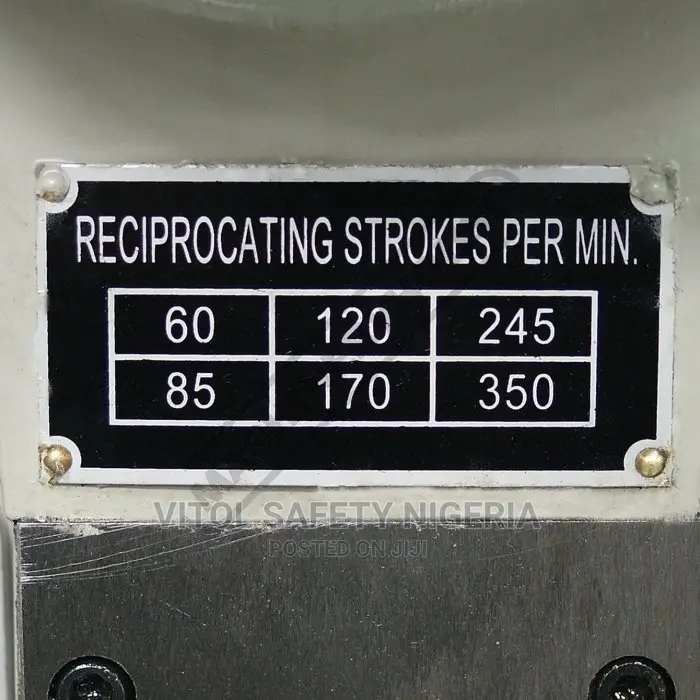

Strokes per minute 60-350 (6 ranges)
800 x 240mm table size
230mm working table cross travel
560mm working table longitudinal travel
Safety chuck guard with micro
14mm T-Slot on table
370W/0.5hp, 240V motor
Includes steel fabricated stand
Suits 16mm diameter tooling
MODELSL-100(mm)
Maximum Stroke100(SPM)
Ram Stroke (strokes/min)60-350 (6 steps)(mm)
Work Table Size800 x 240(mm)
Work Table longitudinal Travel 560(mm)
Work Table Cross Travel230(kW / hp)
Motor Power0.37 / 0.05(V / amp)Voltage / Amperage240 / 10(kg)Nett Weight300
