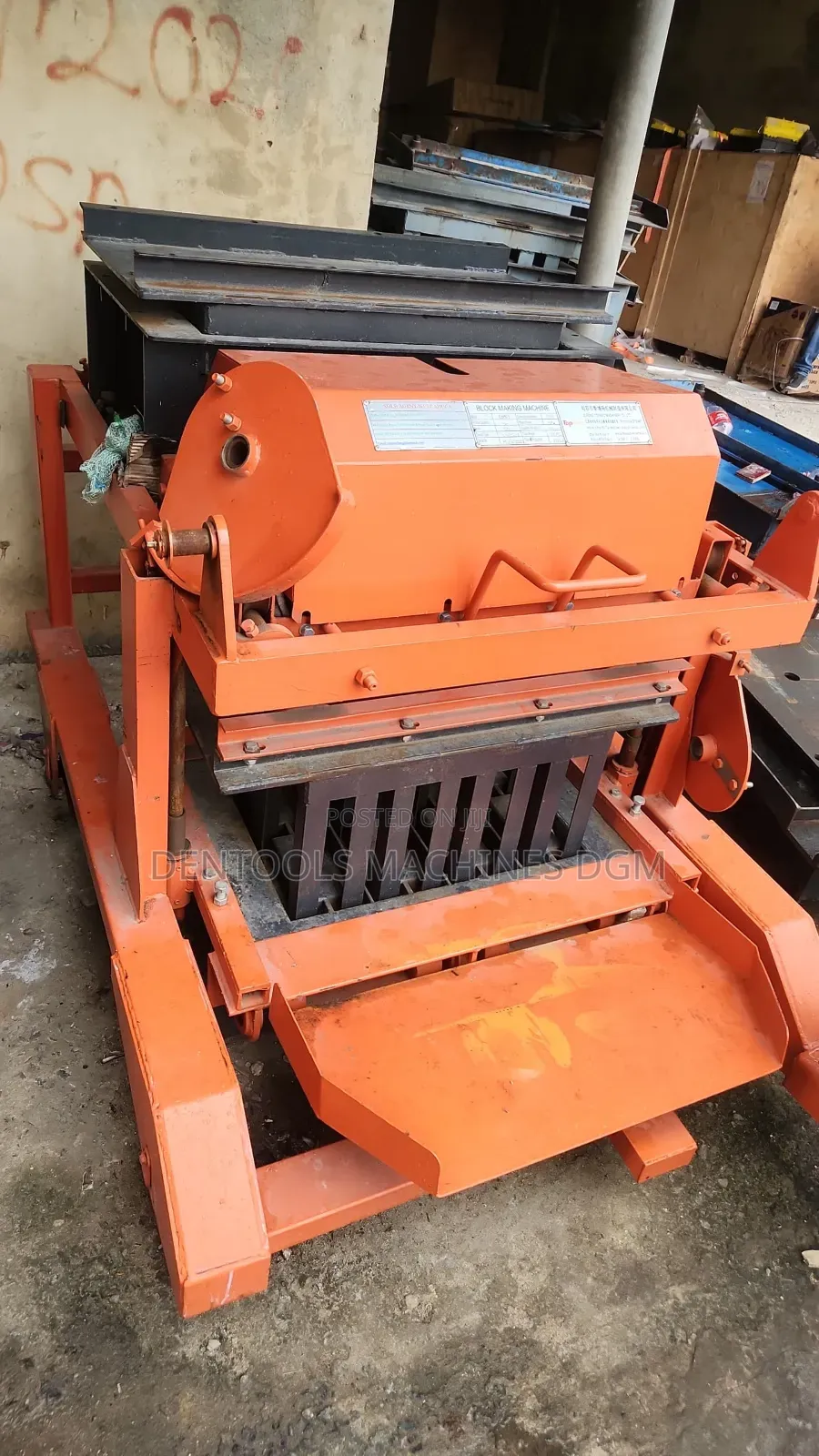

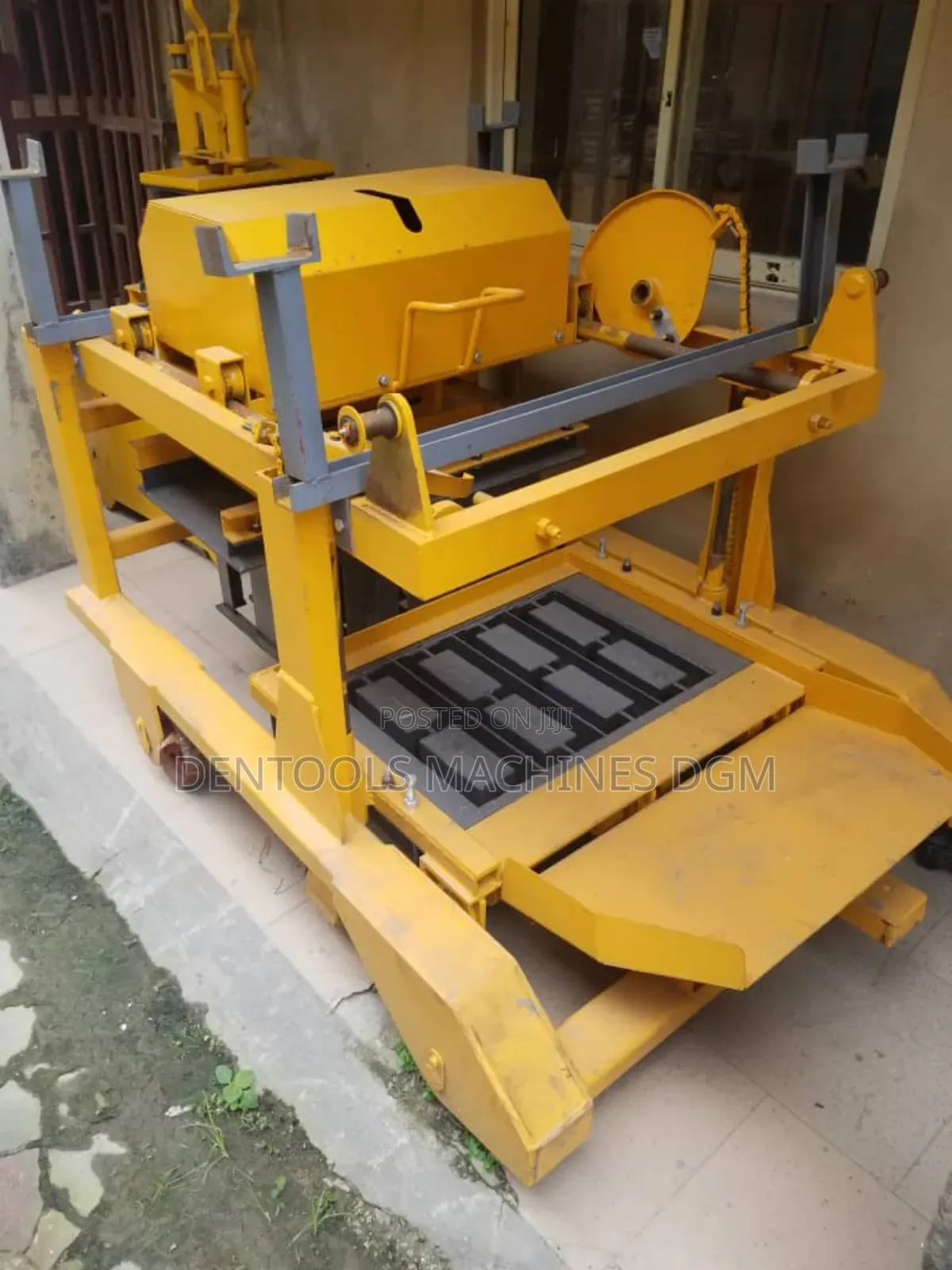

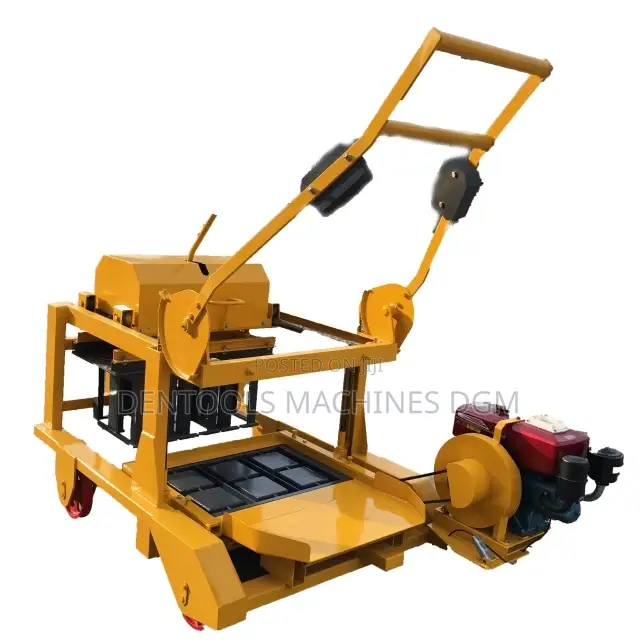

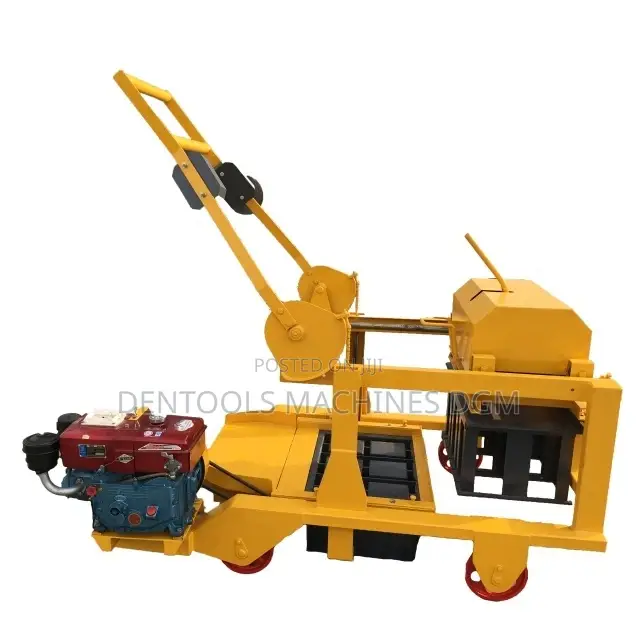

It is a moving block making machine with high quality, it make blocks direct on the floor, no need for block pallets, so save the cost of pallets.
Molds 6" x 4pcs
Molds 9" x 3pcs at a time
Characteristic:
1. Not using pallets
2. Save the cost of pallets, also save the labour works on handling and repairing of pallets
3. But you need to prepare a strong floor
4. If you don't want to construct permanent floor, also can use the plant to support the wheel, and lay the blocks on the sand.
5. Both diesel engine and electric are available.
Technical Parameter:
Model: EBM03
Type: Egg layer, only for hollow and solid
Power source: 7hp diesel engine or 4hp motor
Cycle: 1-2 min.
Nos of blocks per stroke: 6" (4pcs) & 9" (3 pcs)
Block Capacity per day (8 hous): 1000-1800 pcs
Over all size: 2400*1300*1650
weight: 810kg
Hopper: No
