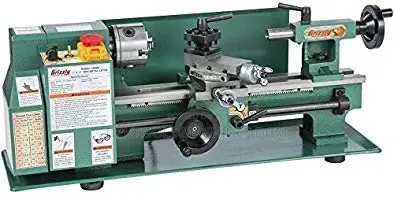

Mini Metal Lathe Machine
New
Condition
Store address
Verified
Verified
4
Lagos State • Surulere
Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex
Closed
• Mon - Sat, 08:00-17:00
Powered by a 3/4 hp motor, this lathe also features: variable speeds (0-2500 rpm), inch and metric reading dials, turret tool post, chip tray & splash guard. Features: variable speed 16 tpi reversible leadscrew forward and reverse in all speeds chip tray & backsplash guard threading dial indicator standard & metric graduation made in an iso 9001 factory specifications: swing over bed: 7" distance between centers: 12" bore size of included chuck: 16mm spindle bore: 20mm spindle nose taper: mt #3 tailstock taper: mt #2 tailstock travel: 2-1/2" cross-slide travel: 2-3/4" maximum tool bit size: 5/16" speed range: low range: 0-1100 rpm, high range: 0-2500 rpm range of standard threads: 12-52 tpi range of metric threads: 0.4-2.0mm cuts lh threads motor: 3/4 hp, 110v, single-phase, 3a number of thread pitches: 18 inch & 10 metric net weight: 75 lbs. Approximate shipping weight: 90 lbs. Standard equipment: 3" three-jaw chuck with external jaws 6-1/4" face plate steady rest four-position turret
Contact for price
