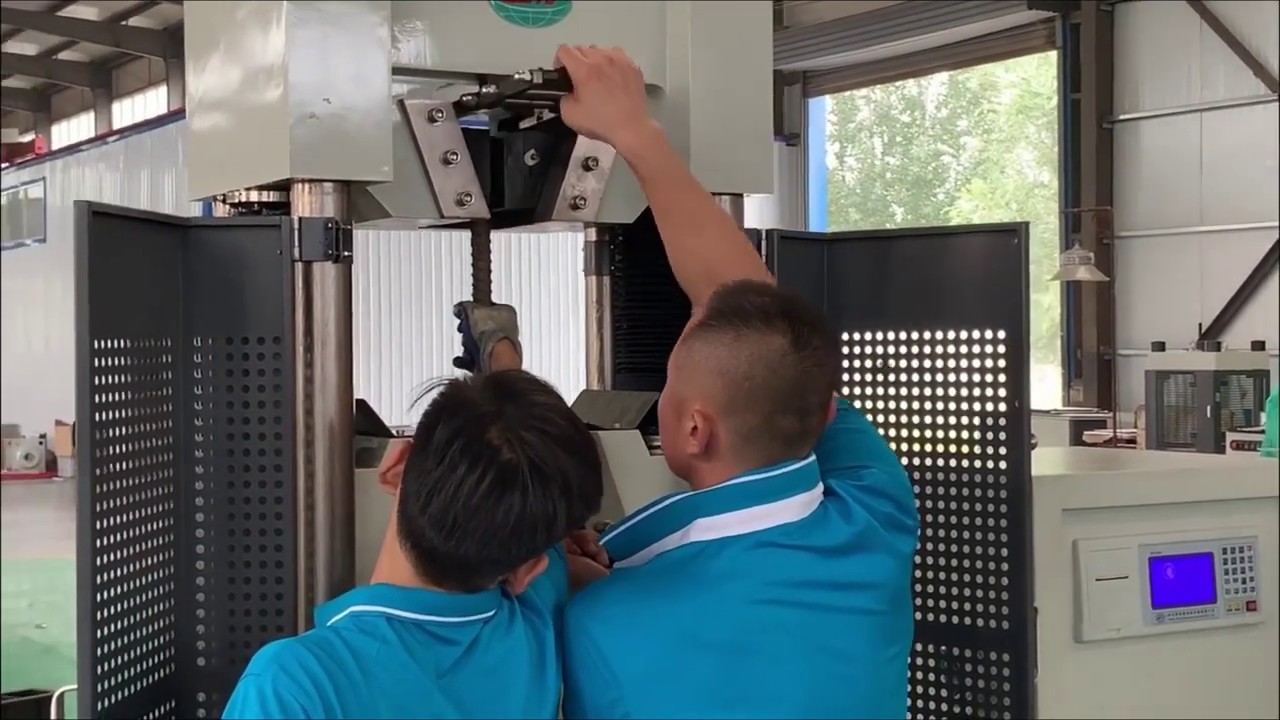

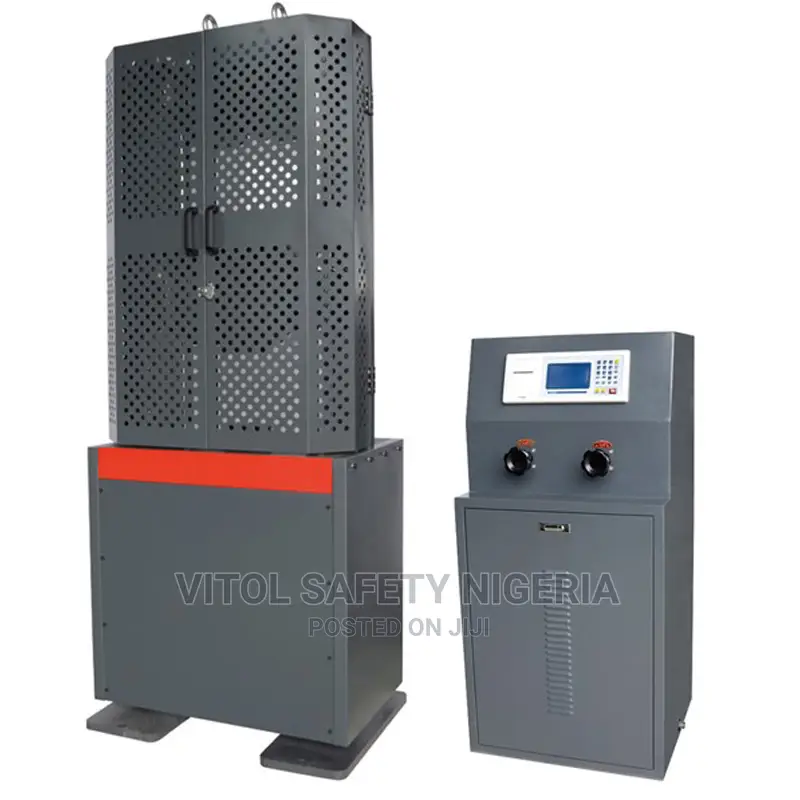

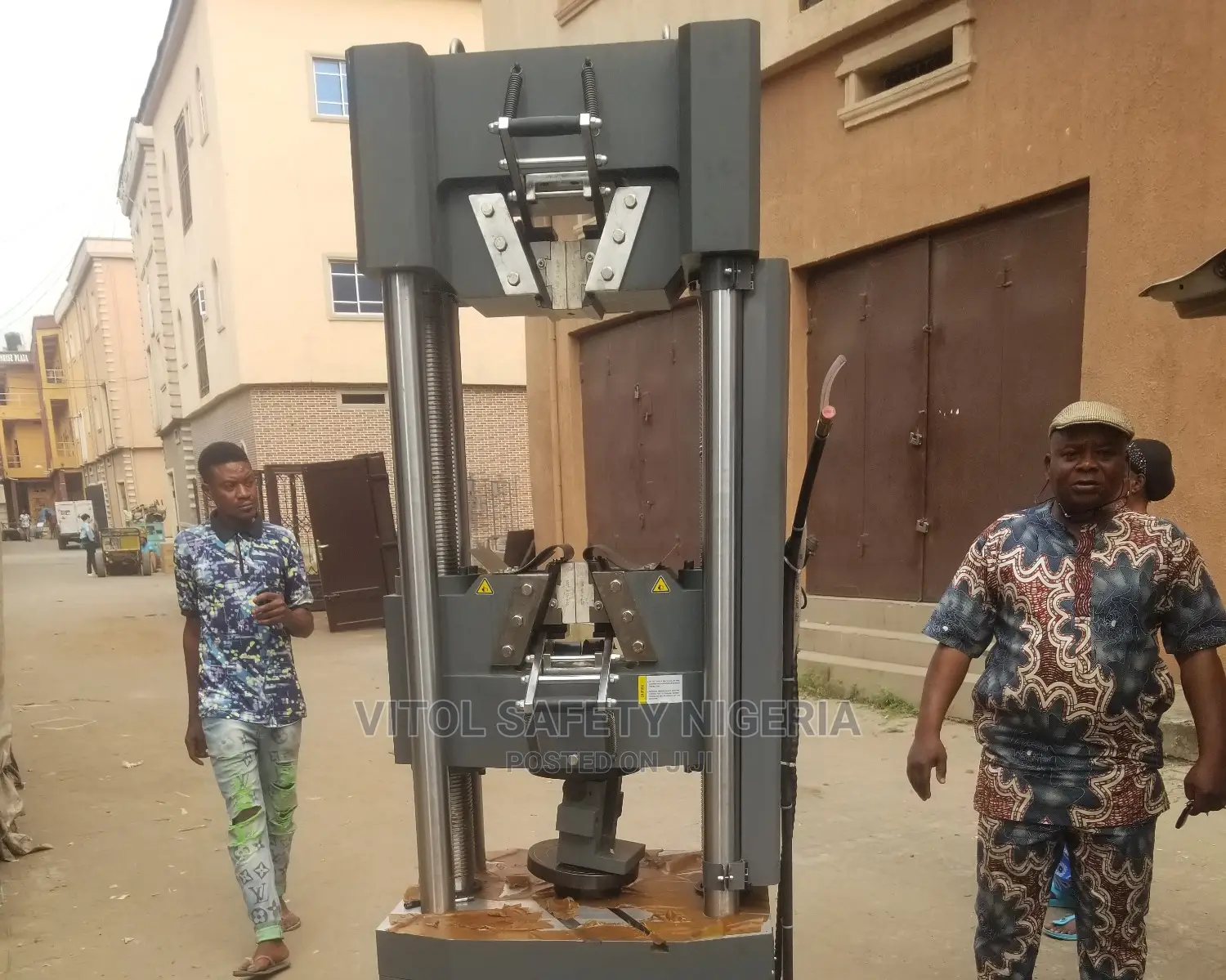

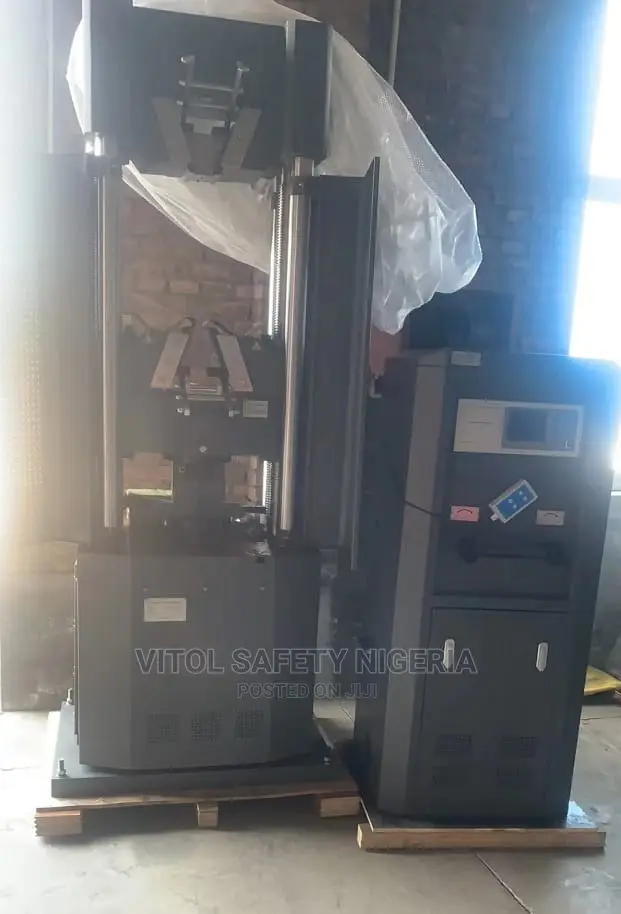

Digital Display 1000kn Hydraulic Universal Testing Machine

+1

Brand New

Condition

UTM

Type

Store address

Lagos State • Amuwo-Odofin

23 Prudence Plaza Tools & Hardware Center Ojo Trade fair Complex Badagry Exp way Lagos

From Lagos island or ikeja get to mile 2, from mile 2 get to trade fair Complex Badagry Exp way Lago

Closed

• Mon - Sat, 09:00-18:00

4

+1

images

Lagos State • Surulere

Shop12 Justice plaza tools and hardwares trade fare international market

Closed

• Mon - Sat, 09:00-17:00

1. It is suitable for doing testing experiments such as the tensile, compression, bending and shear testing for all kinds of metal materials and nonmetal materials such as plastic, concrete. 2. Capacity: 300KN/600KN/1000KN 3. Precision: Class one 4. Load measuring range: 2%-100% FS 5. Loading accuracy: 1% 6. Loading resolution: 0.01KN 7Displacement accuracy: 1% 8. Piston moving speed: 0-70mm/min. 9. Piston stroke: 200/250mm 10. Beam moving speed: 0-270mm/min 11. Effective tensile span: 0-550/ 600/700mm 12. Effective compression span: 0-450/470/500mm 13. Round specimen clamp: dia. 0-32/13-40/20-60mm 14. Flat specimen clamp: 0-15/30/40mm 15. Clamp width of flat specimen: 75mm 16. Size of compression plate: 205mmX205mm 17. Bending stick distance: 350/500mm 18. Bending stick width: 120mm 19. Bending degree allowance: 150mm 20.

Show contact
