CNC Milling Machine

+1

4

CNC Router Machines

Type

Brand New

Condition

Store address

Verified

4

+1

images

Lagos State • Surulere

Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex

Open

• Mon - Sat, 08:00-17:00

View on map

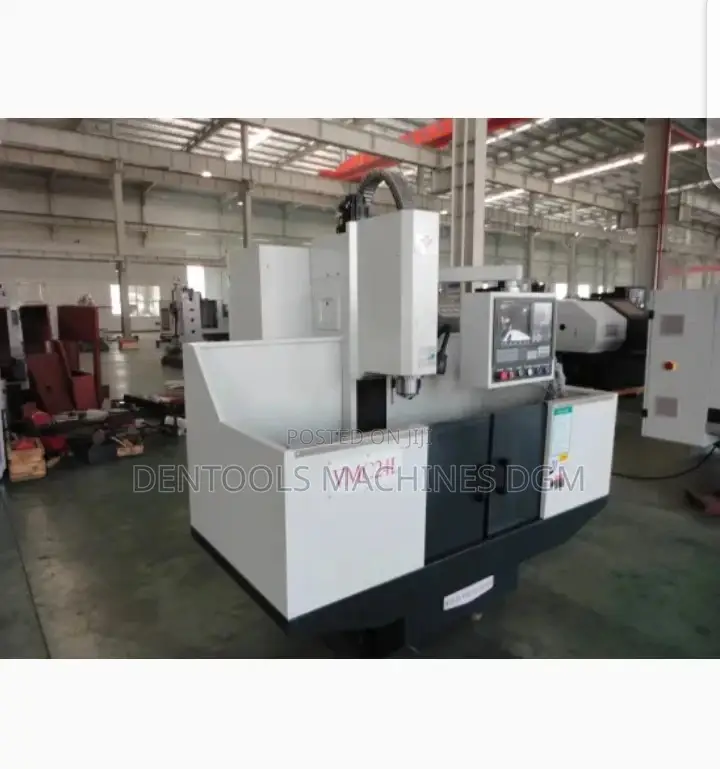

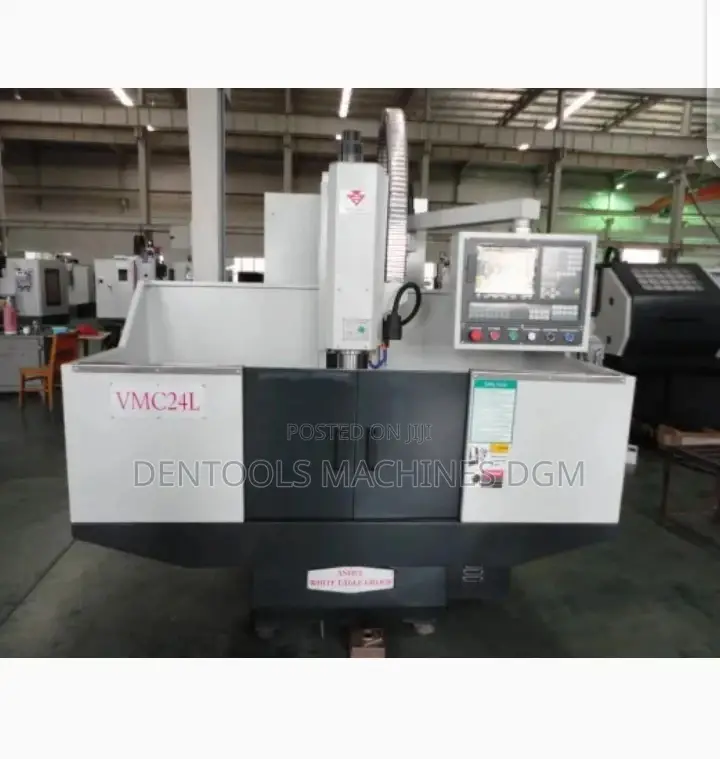

Vertical machine center features: 1:specially designed for machining small-size parts. 2: smaller cnc machine with linear guide-way, but concentrated all of functions as normal vertical machine center. Model and specification vmc24l size of worktable(l*w) 810*240mm t slot(width*qty*gap) 16mm*3*60mm max. Loading weight on worktable 100kg max. Travel(x/y/z) 430/290/370mm distance between spindle nose and table 80-450mm distance between spindle center and column 309mm spindle taper bt30 max. Spindle speed range 5000r/min spindle servo motor power 2.2/3.7kw feeding motor power: x/y/z axis 1kw/1kw/1.5kw rapid feeding speed: x/y/z axis 24mm/min feeding speed 0-4000mm/min min. Set unit of feeding 0.01mm tool magazine capacity 10 pcs(or 12 pcs) max. Tool size 60*175mm tool clamping and tightening way clamping by disk spring and tool-released pneumatically max. Loading weight of tool 3.5kg net weight 1000kg overall size(l*w*h) 1493*1669*2070mm
