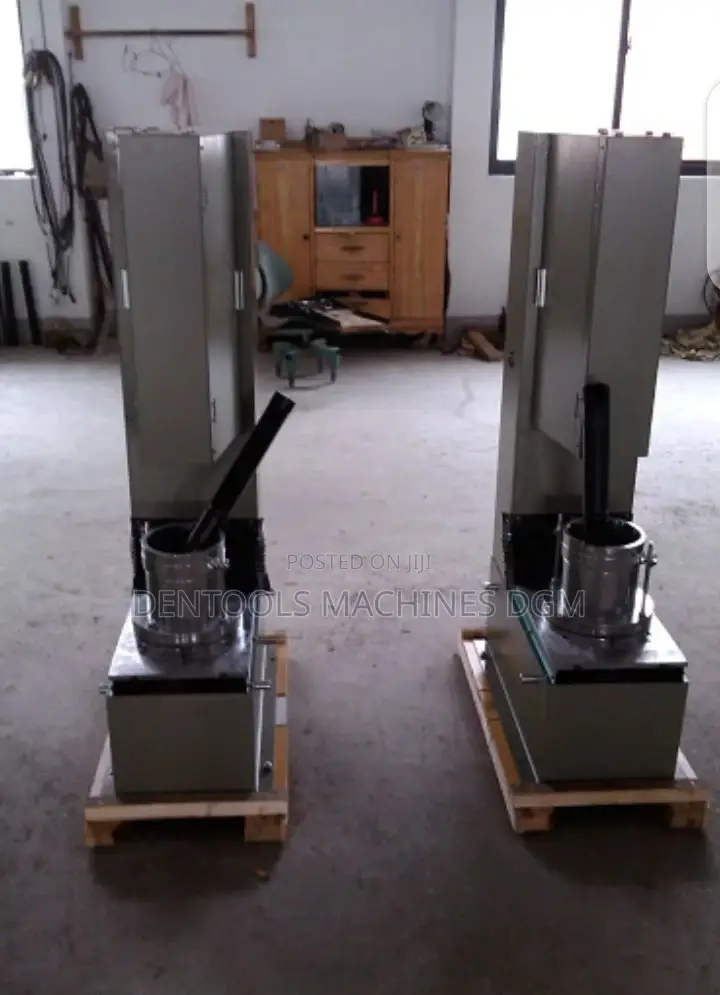

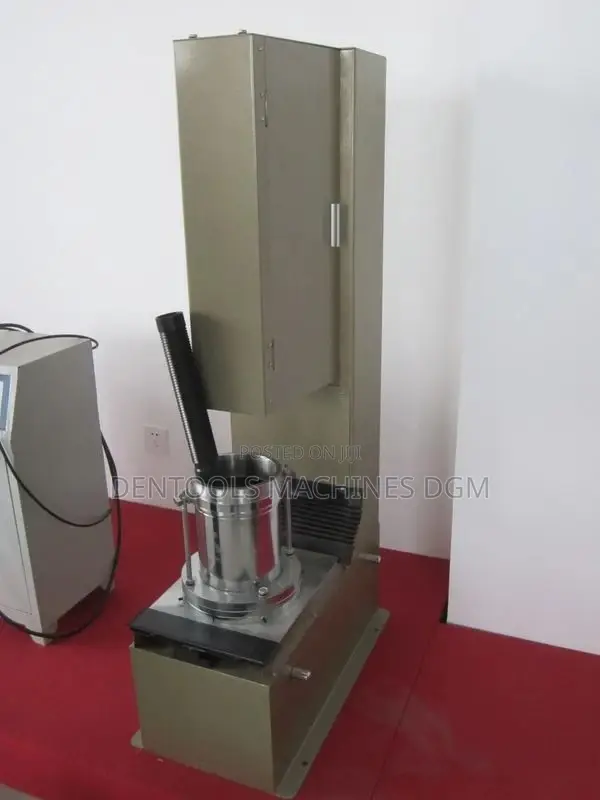

Automatic Proctor / CBR Compactor

+1

4

Other

Type

Brand New

Condition

Store address

Verified

4

+1

images

Lagos State • Surulere

Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex

Closed

• Mon - Sat, 08:00-17:00

View on map

Lagos State • Amuwo-Odofin

MOSDAN PLAZA, Alakijah Bus stop Lagos Badagry Express way.

LIPODENT BONDED TERMINAL Alakijah Bus stop

Closed

• Mon - Sun, 08:00-18:00

Standards complaince: jtg e40-2007/t0131-93, t0134-93, t0135-93 description the automatic proctor compactor is a specialized equipment to perform soil compaction test, it can do standard and modified compaction test. The soil compaction test is used to determine the max dry density and matched best moisture content of compacted road-base soil. Technical specifications 1. Heavy compaction test: hammer weight 4.5kg, drop height 450mm 2 light compaction test: hammer weight 2.5kg, drop height 300mm 3. Applicable test mould diameter: φ100mm, φ152mm 4 hammerhead diameter: φ50mm 5. Hammer frequency: 30 beats / min 6. Motor: 370w 380v 1400 rev / min 7. Overall dimensions: 650 x 400 x 1320mm (l x w x h) 8. Weight: 130kg note: each compactor is equipped φ152 and φ100 test mould each set, each one another φ152 and φ100 test mould.
