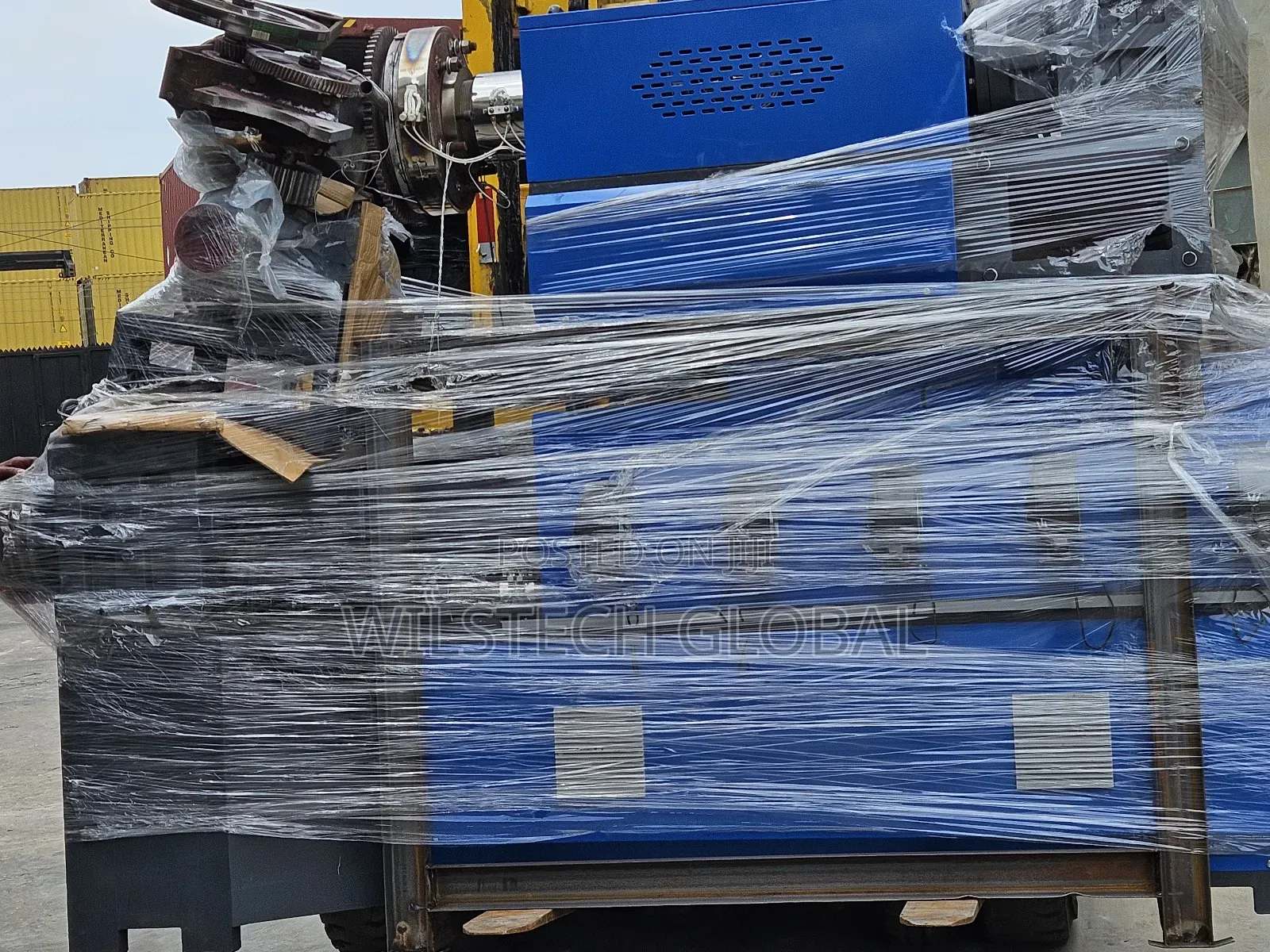

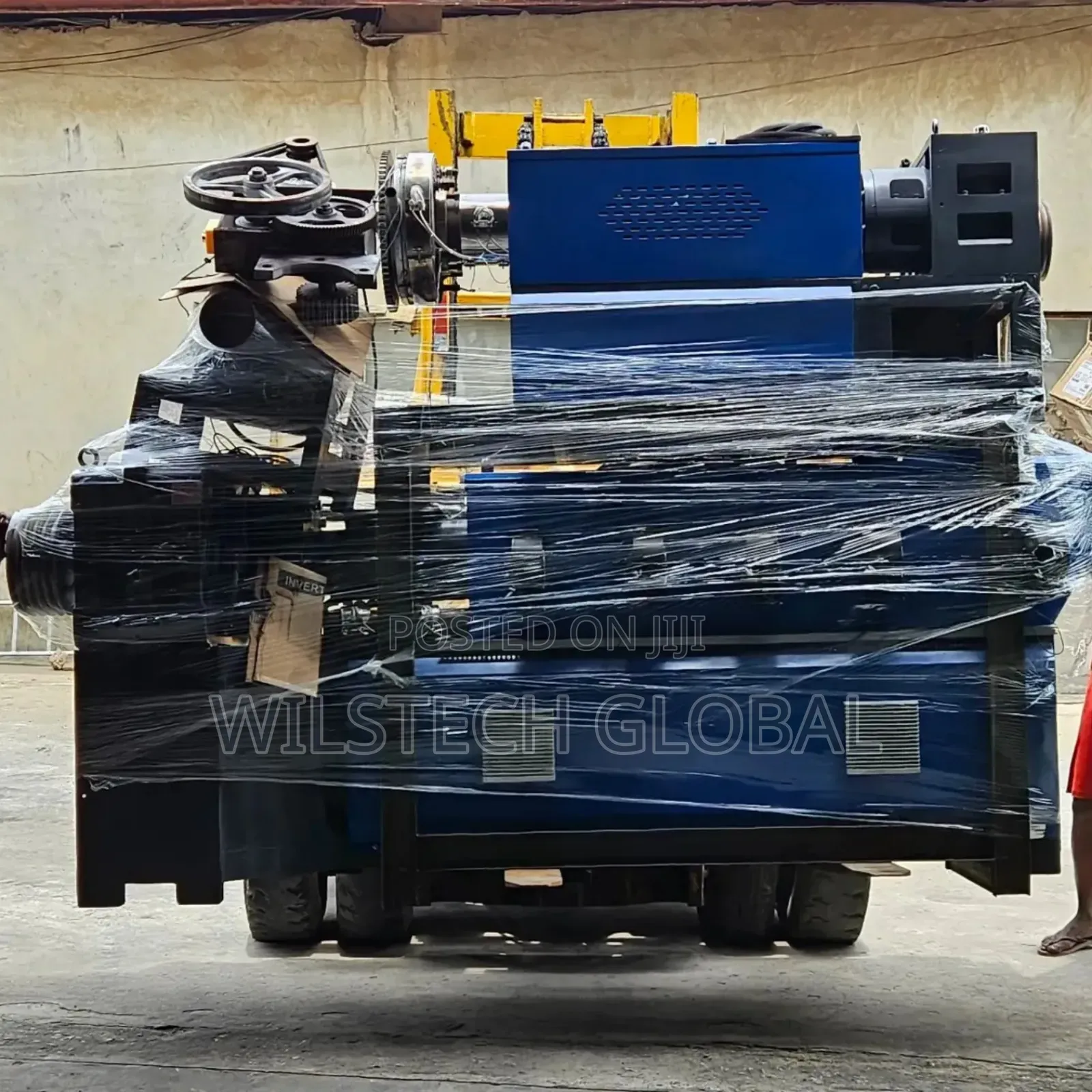

150mm Nylon Recycling Machine

+1

2

Recycling Machine

Type

Brand New

Condition

Store address

Lagos State • Amuwo-Odofin

476 Old Ojo Road Satellite Town, Opposite Tradefair Compex Badagry Express way

Open

• Mon - Sat, 09:00-17:00

Lagos State • Ikeja

Block F, Shop 6, GSM Village Ikeja, along Oshodi/Agege Road

Airport Bus stop

Open

• Mon - Sat, 10:00-18:00

150mm Nylon Recycling Machine. 1. Main machine length-to-diameter ratio: L/D=17 ∶ 1 ( φ 150*2400); 2. Screw diameter: φ1 50mm; 3. Screw material: 38CrMOAlA, tempered, nitrided, polished, tungsten steel alloy sprayed on the screw ribs, polished, HV≥920HV≥920(HRC:66-69), Ra≤0.4; 4. Screw barrel material: 38CrMOAlA, tempered, nitrided, polished, HV≥920HV≥920(HRC:66-69), Ra≤0.4; 5. Reducer: 225 type national standard single screw extruder special hardened gear reducer (equipped with forced pump and oil temperature cooling device, gears and shaft. 6. Heat resistance ofhost temperature measuring element: 0~400°C; 7. Main motor power: 55kw motor 8. Host control form: 55kw inverter 9. Main machine speed: 0~60rpm; 10. Main machine external dimensions (length*width*height): 3500mm*1700mm*1500mm; 11. The unit capacity: 180kg/h--230kg/h.
