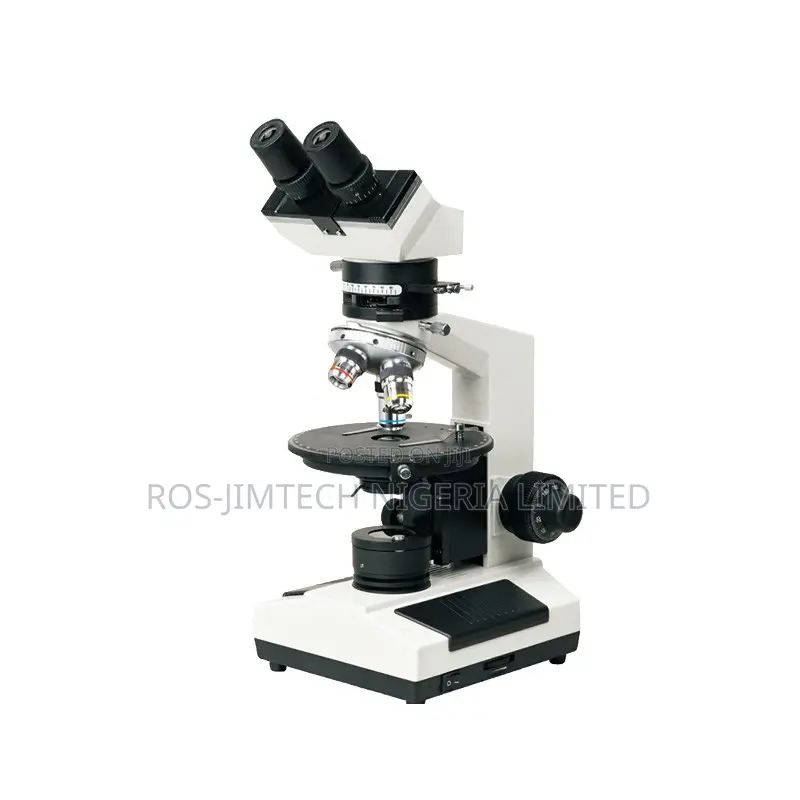

Polarizing Biological Microscope
Laboratory Equipment
Type
Other
Brand
Brand New
Condition
Other
Laboratory Equipment
Store address
Oyo State • Ibadan
Km 8, Ibadan - Oyo road. Ibadan
Open now
• Mon - Sat, 08:00-17:00
Technical parameters:
model bmp-107b bmp-107t
viewing head sliding binocular head at 45°, 360° rotatable
eyepiece eyepiece wf10x/18 with scale of crosshair
eyepiece wf10x/18
objective strain free achromatic objective 4x, 10x, 40x
nosepiece toward quadruple nosepiece, center adjustable
analyzer rotatable analyzer with gradation 0°~90°
bertrand lens bertrand lens, sliding in/out of optical path
optical compensator λ slip(first class red) 1/4λ slip
quartz wedge revolving
round stage diameter φ160mm, graduated in 1° increments, minimum resolution 6' when using vernier scale
condenser abbe condenser with iris diaphragm & filter
focusing coaxial coarse&fine adjustment, range 28mm, fine division 0.002mm
polarizer sliding in/out of optical path, located on the top of collector
illumination 6v/20w halogen lamp, brightness adjustable
