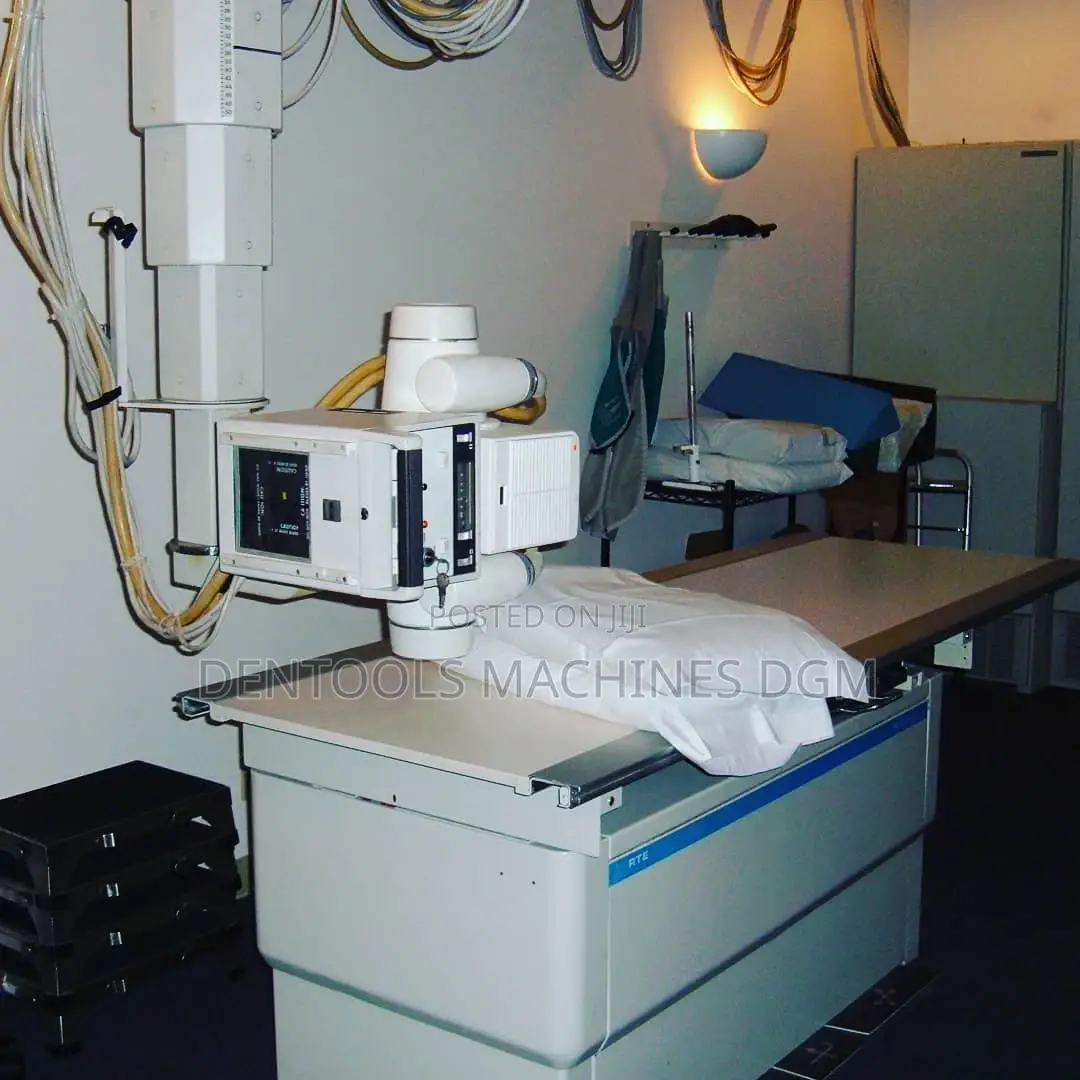

X-ray Machine
Other
Type
Store address
Verified
Verified
4
Lagos State • Surulere
Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex
Closed
• Mon - Sat, 08:00-17:00
20kw/200ma medical high frequency diagnostic x-ray machine ysx200g
technical specifications
contents ysx0314
intermittent mode 100kv, 200ma, 20kw
power voltage 380v±10% 50hz±10%
tube current radiography 16ma~200ma
output voltage radiography 40-125kv step by 1kv;
resistance power less than 0.5ω
output power 20kw
exposure time radiography 0.0025s~6.4s adjustable
nominal frequency 30khz
anode rotating speed 2800r/min
anode heat capacity 140khu
focus small focus:1.0mm big focus:2.0mm
length*width*height of bed surface 2000mm×750mm×690mmdeviation:±10mm
horizontal movement distance (table) ≥200mm
vertical movement distance (table) ≥900mm
distance from table surface to film 50mm±2mm
distance of vertical movement 770mm±10mm;
moving crosswise (left & right) +180°~-180°deviationmoving lengthway
(along ground railway) ≥1300mm
fixed beam filtration grid density ≥40 lines/cm.
Grid ratio 10:01
focus distance 100cm
cassette size 5′′×7′810XXXXXX
