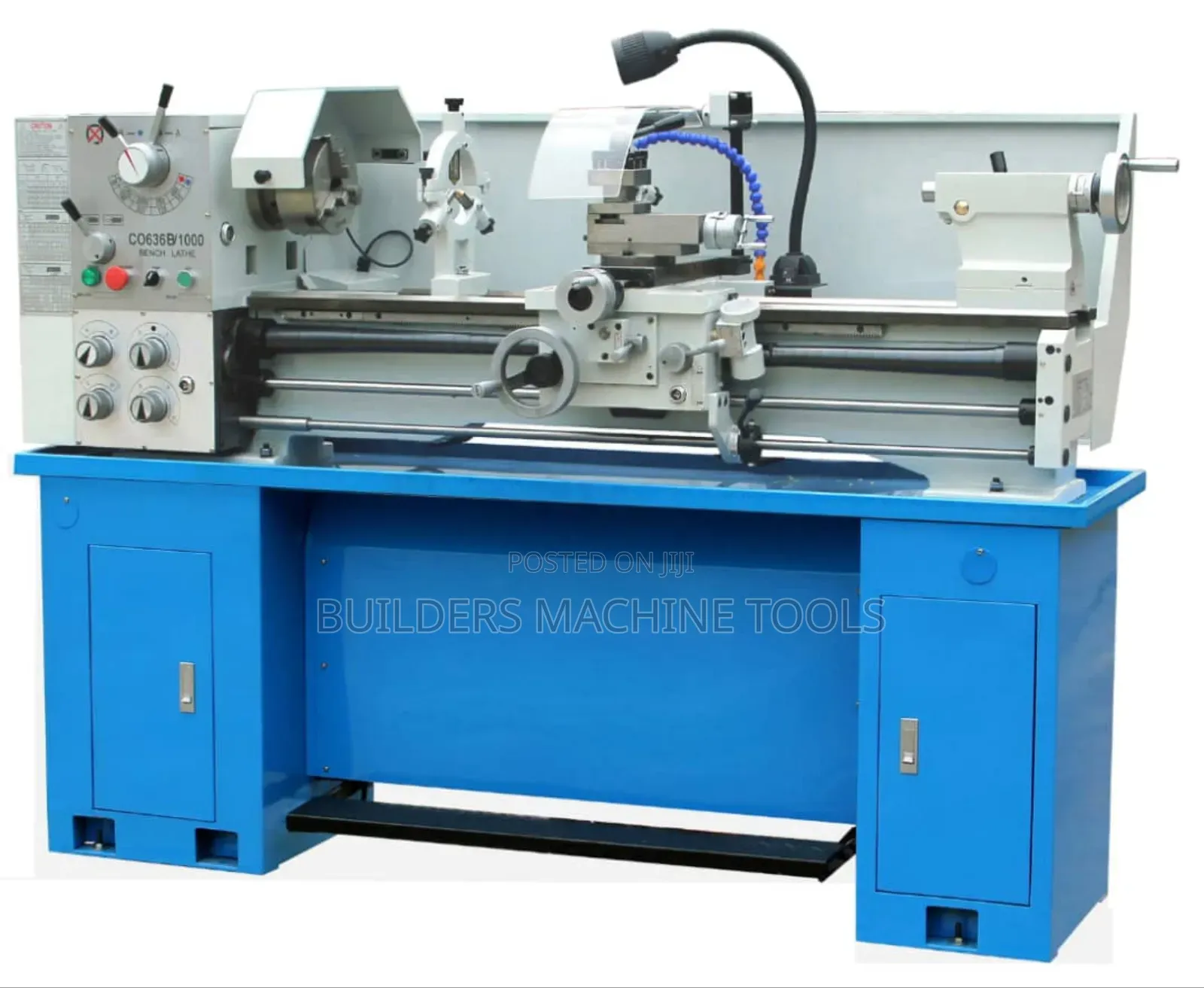

High Quality Lathe Machine 1 Meter

+1

Other

Type

Brand New

Condition

Store address

Lagos State • Amuwo-Odofin

Shop 002 amazing grace cluster, Mosdan shopping complex alakija lagos

From mile come down to alakija bus stop,badagry expressway lagos

Closed

• Mon - Sat, 09:00-18:00

SP2123(I/II) Swing over Bed 360 mm/400 mm Swing over Cross Slide 220 mm Swing over Gap 506 mm (20") Distance Between Centers 1,000 mm Width of Bed 206 mm Spindle Bore 38 / 52 mm(Optional) Spindle Taper MT5 Spindle Nose D1-5 Range of Spindle Speeds rpm Range of Metric Longitudinal Feeds 42 Nos. 0.043-0.653mm/rev 40 Nos. 0.0304-0.746mm/rev Range of Imperial Longitudinal Feeds 42 Nos. 0.0017"-0.0257"/rev 40 Nos. 0.0012"-0.0294"/rev Range of Metric Cross Feeds 42 Nos. 0.015-0.22mm/rev 40 Nos. 0.0076-0.254mm/rev Range of Imperial Cross Feeds 42 Nos. 0.0006"-0.0087"/rev 40 Nos. 0.0003"-0.0100"/rev Compound Slide Travel 92 mm Cross Slide Travel 178 mm Carriage Travel 840 mm Tailstock Quill Travel 115 mm Tailstock Quill Taper MT3 Range of Imperial Threads 28 Nos. 4 - 56 TPI
