Roll Grooving Machine
electrical roll
Type
Brand New
Condition

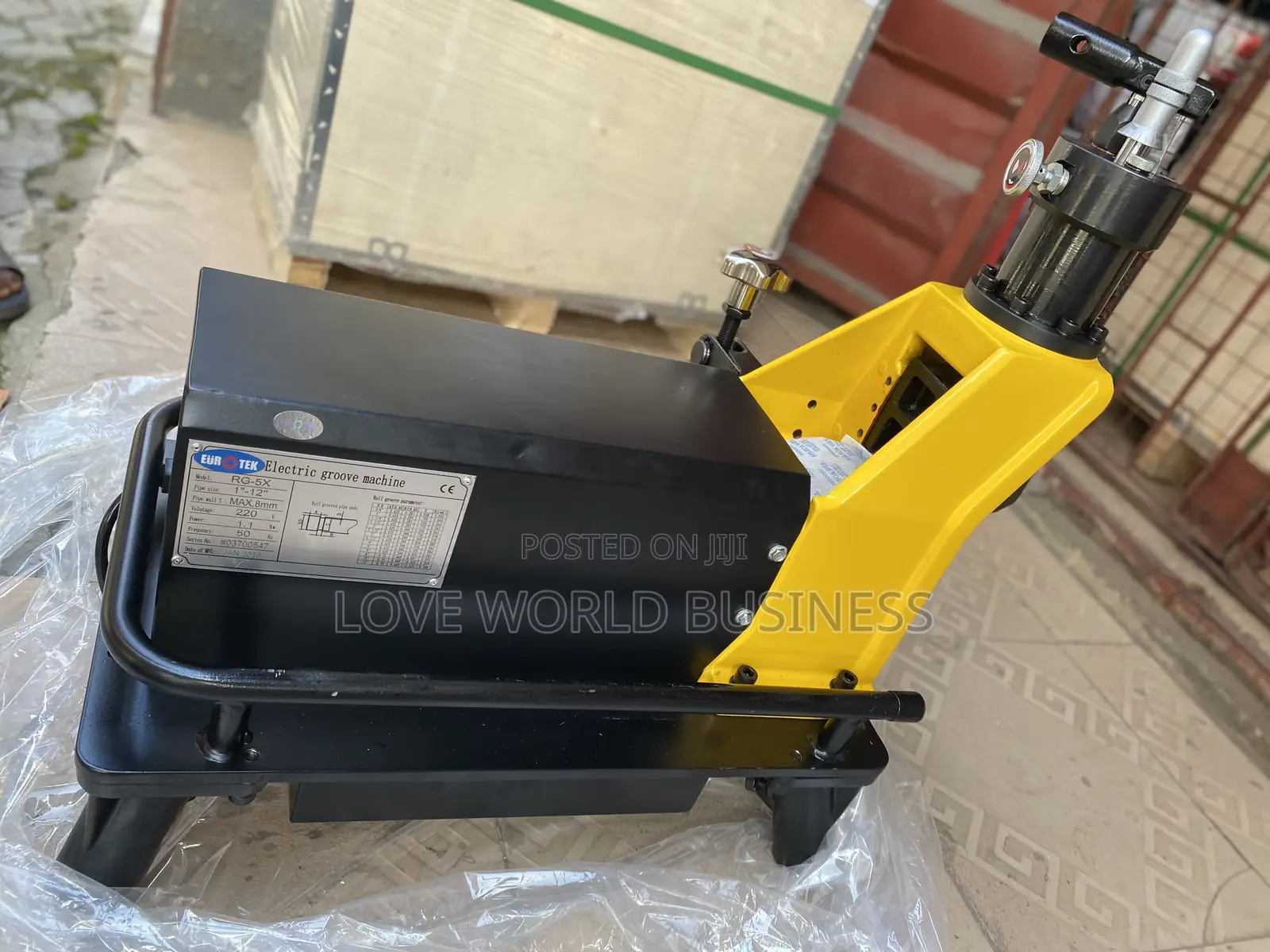

Electric roll grooving machine, used to form grooves on the ends of steel pipes so they can be joined using grooved couplings (Victaulic-style piping systems).
Major components

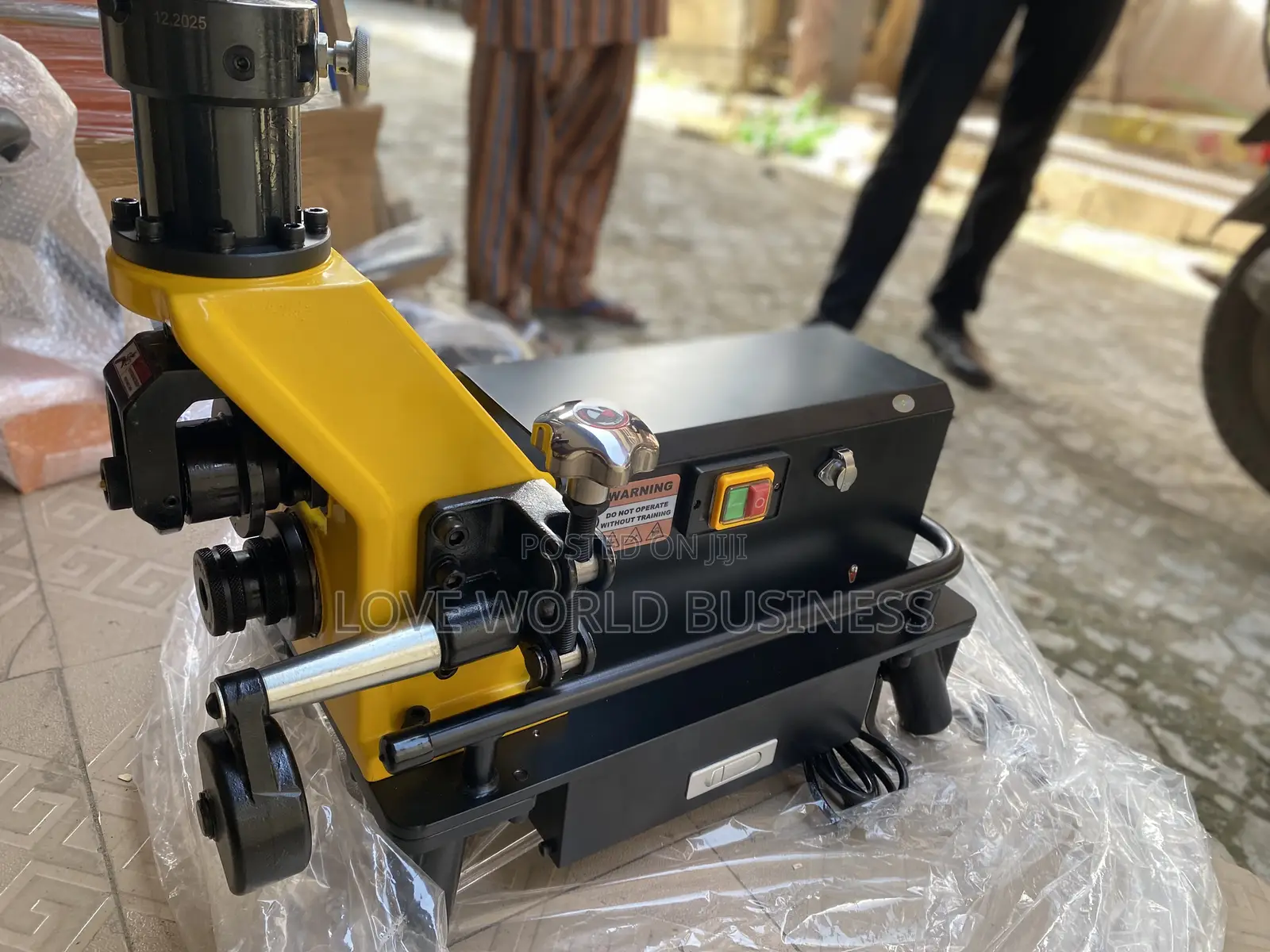

1. Upper Roll Shaft Assembly
* Holds the drive roller that rotates the pipe.
2. Lower Hydraulic/Feed Assembly
* Applies pressure to form the groove.
3. Feed Handwheel (Silver Star Knob)
* Adjusts groove depth.
4. Electric Motor Housing
* Black rectangular enclosure on the right.
5. Power Switch
* Green and red push buttons.
6. Speed/Direction Control Knob
* Located beside the switch.
7. Pipe Support Rails
* Support longer pipes during grooving.
Pipe Size & Groove Depth
1–11⁄4 in 1.8–2.0 mm
11⁄2–2 in 2.1–2.4 mm
21⁄2–6 in 2.3–2.8 mm
8 in 2.8–3.3 mm
₦ 3,250,000
