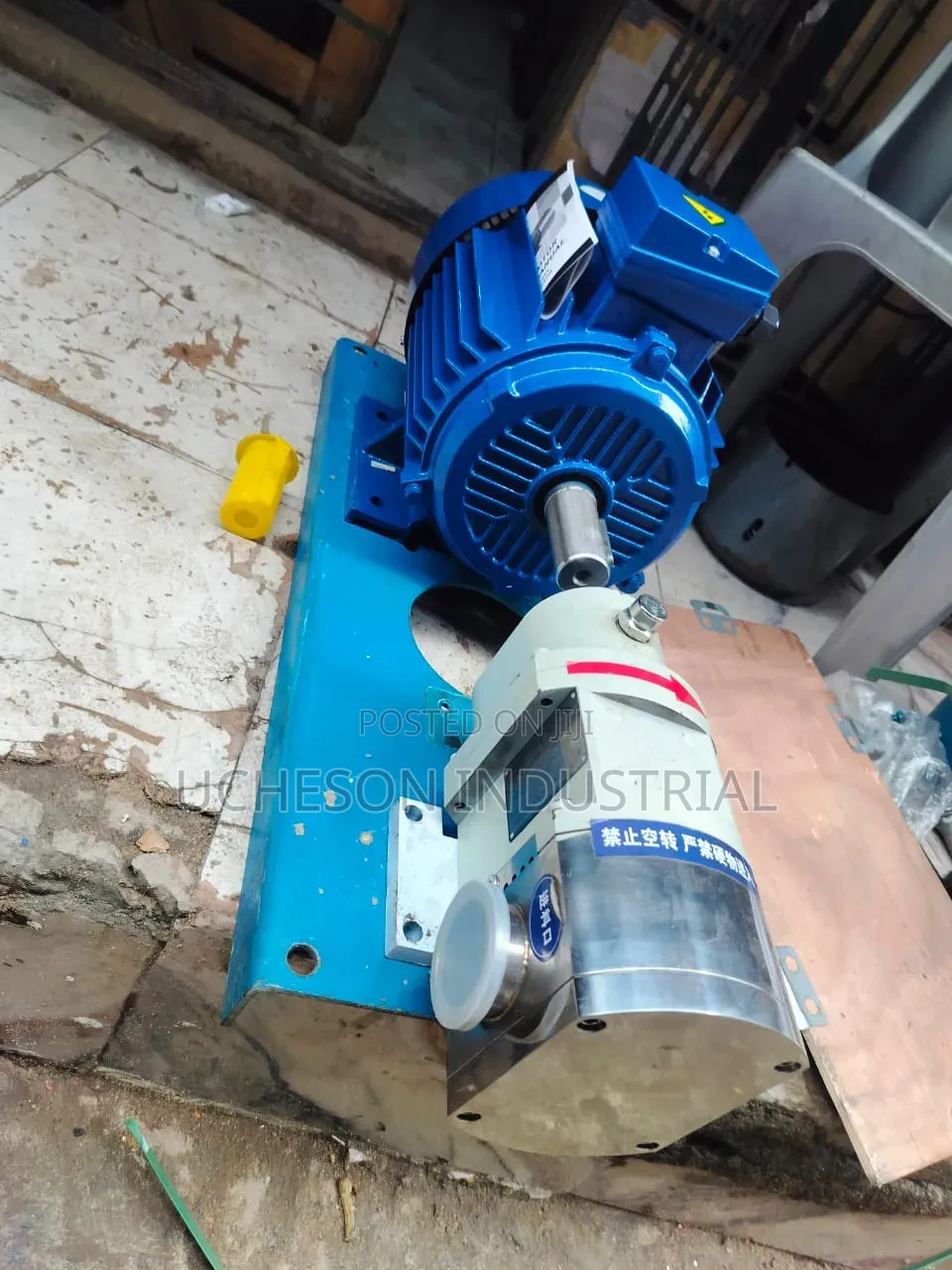

L3a-36 Lobe Rotary Pump

+1

Food and Oil Processing Pumps

Type

Brand New

Condition

Store address

Lagos State • Ojo

97B f.line industrial section alaba international

Alaba international market ojo lagos nigeria

Closed now

• Mon - Sat, 08:00-18:30

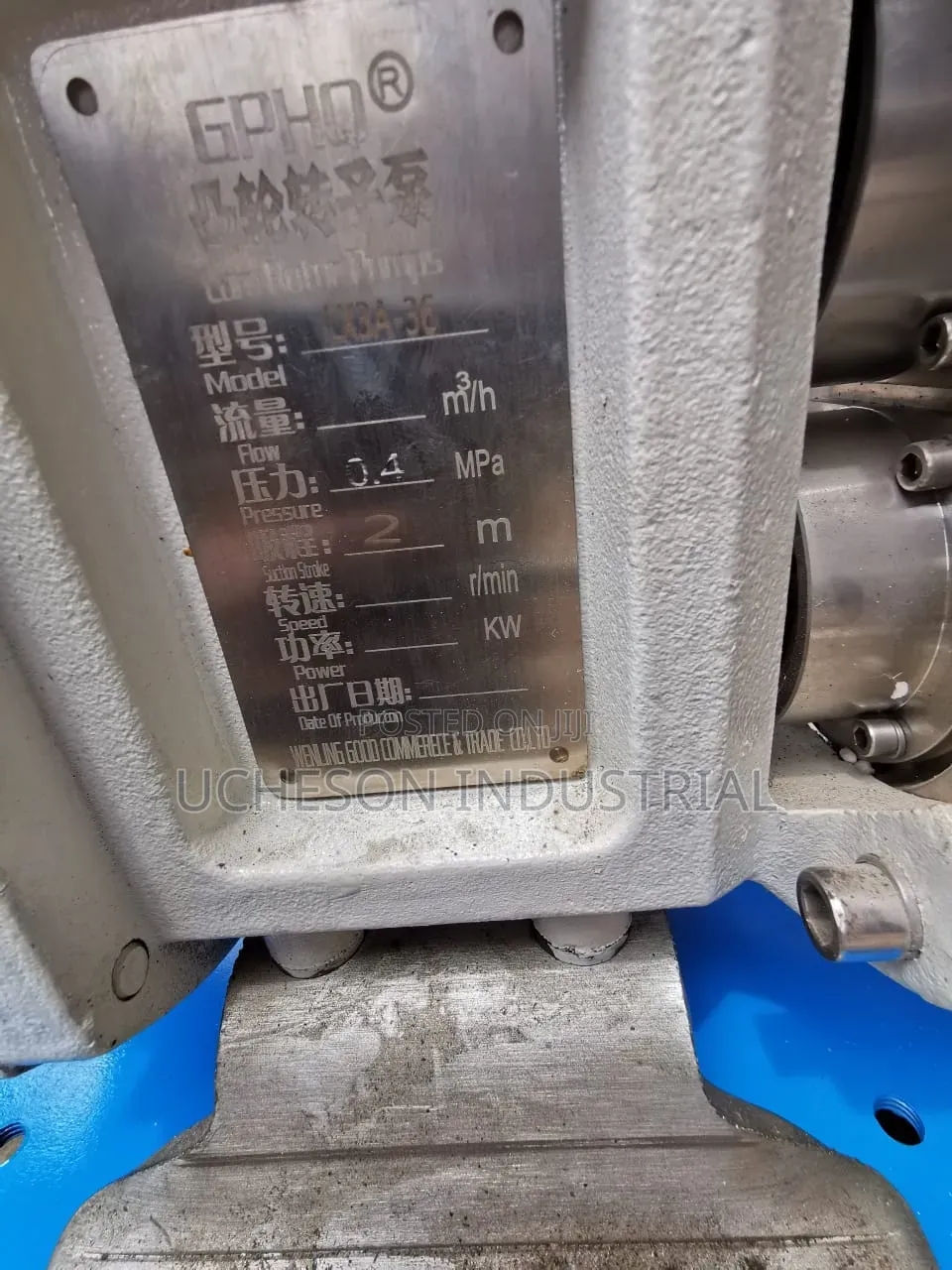

GPHQ L3A-36 Lobe/Rotor Pump at 960 rpm: Estimated Flow Rate Approx. 5.5 - 7.2 m3/h Why: L3A-36 is a standard 3-lobe pump. The displacement is roughly 0.006 - 0.0075 m3 per 100 rpm. Formula: Flow m3/h = Displacement per rev x RPM x 60 x Volumetric efficiency ∼85-90% At 960 rpm most L3A-36 pumps deliver: At low pressure 0.4MPa / water-like viscosity: ∼6.5 - 7.2 m3/h At higher viscosity like syrup, cream, oil: ∼5.5 - 6.5 m3/h Nameplate Summary Model: GPHQ L3A-36 Lobe Pump Pressure: 0.4 MPa Suction: 2 m Speed: 960 r/min Estimated Flow: ∼6.0 m3/h average Note: The exact flow still depends on what you’re pumping. Water = higher flow. Honey/Oil = lower flow because of viscosity and slip.
