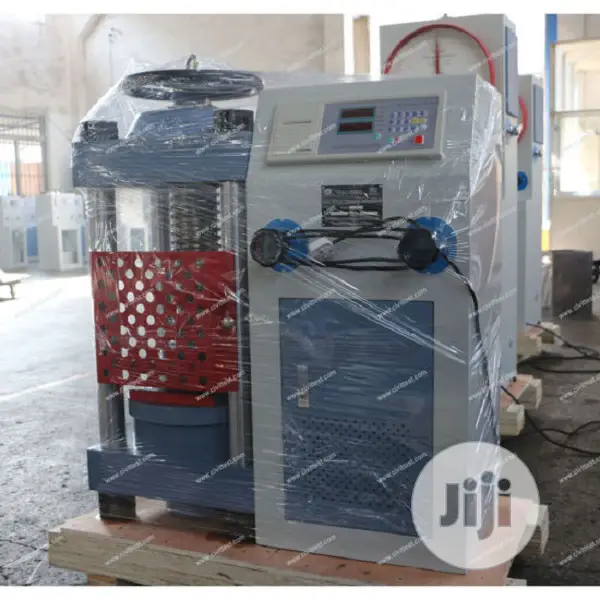

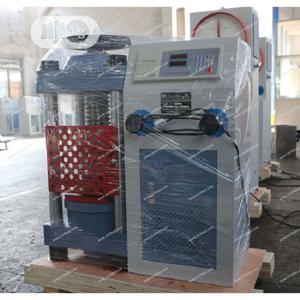

This universal compression testing machine is mainly used in building materials such as brick, stone, cement, concrete compressive strength test, can also be used in other material mechanical performance testing.
The maximum test compression: 2000kn
test space adjustment mode manual adjustment screw
control mode manual control the loading process
accuracy class level 1
test force measurement range 4%~100%f·s
test force showed the accuracy ≥±1%
cylinder stroke 50mm
the maximum distance between the upper and lower platens 180mm
the maximum distance between the left and right columns 270mm
platen size 250×250mm
host power 1kw/ac380v
total weight 750kg.
Sold and serviced in nigeria by: mcdurch contracting nig. Ltd
