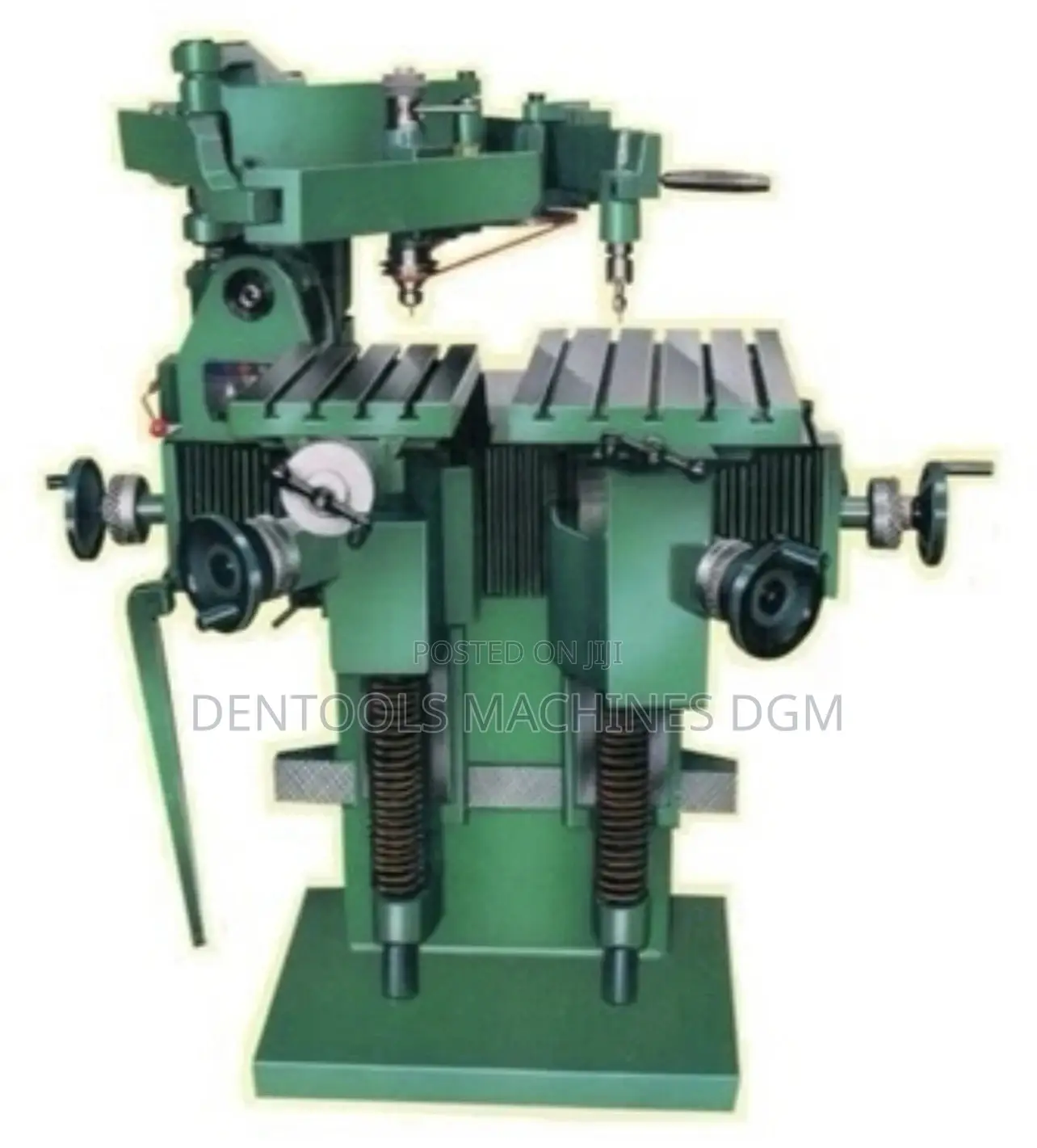

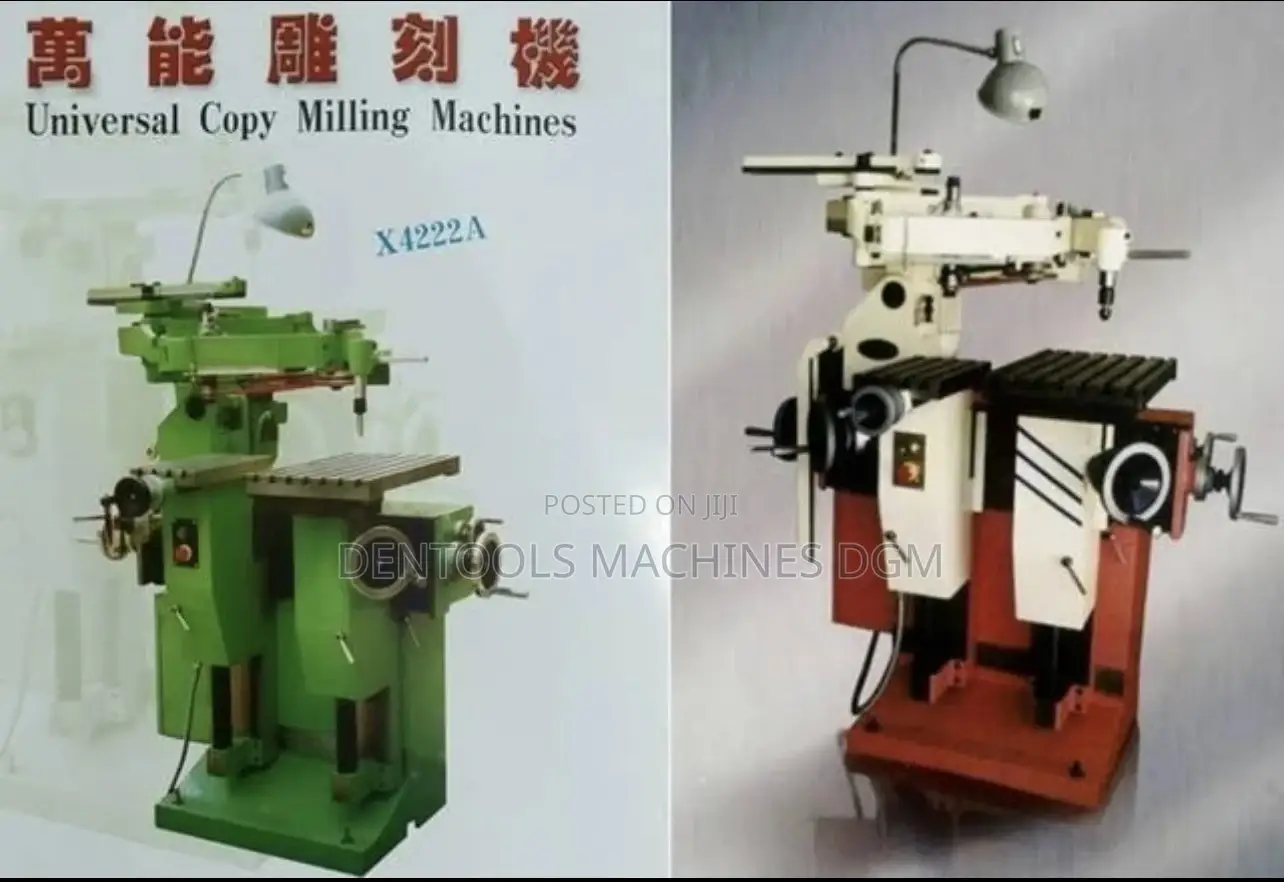

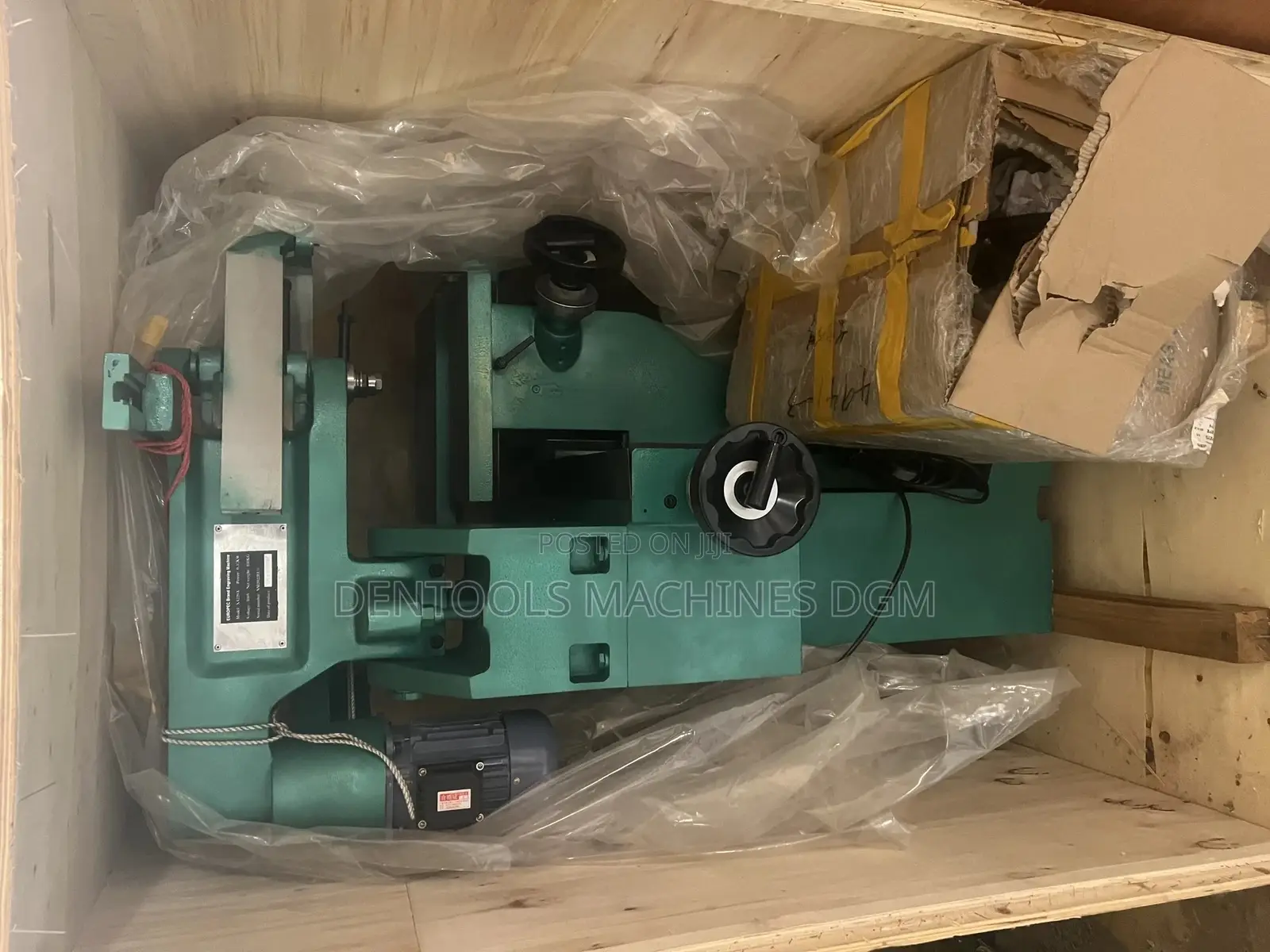

Engraving Machine

+1

Brand New

Condition

Other

Type

Store address

Verified

4

+1

images

Lagos State • Surulere

Shop 17 Favour Plaza Tools and hardware center, Trade Fair Complex

Closed

• Mon - Sat, 08:00-17:00

View on map

Lagos State • Amuwo-Odofin

MOSDAN PLAZA, Alakijah Bus stop Lagos Badagry Express way.

LIPODENT BONDED TERMINAL Alakijah Bus stop

Closed

• Mon - Sun, 08:00-18:00

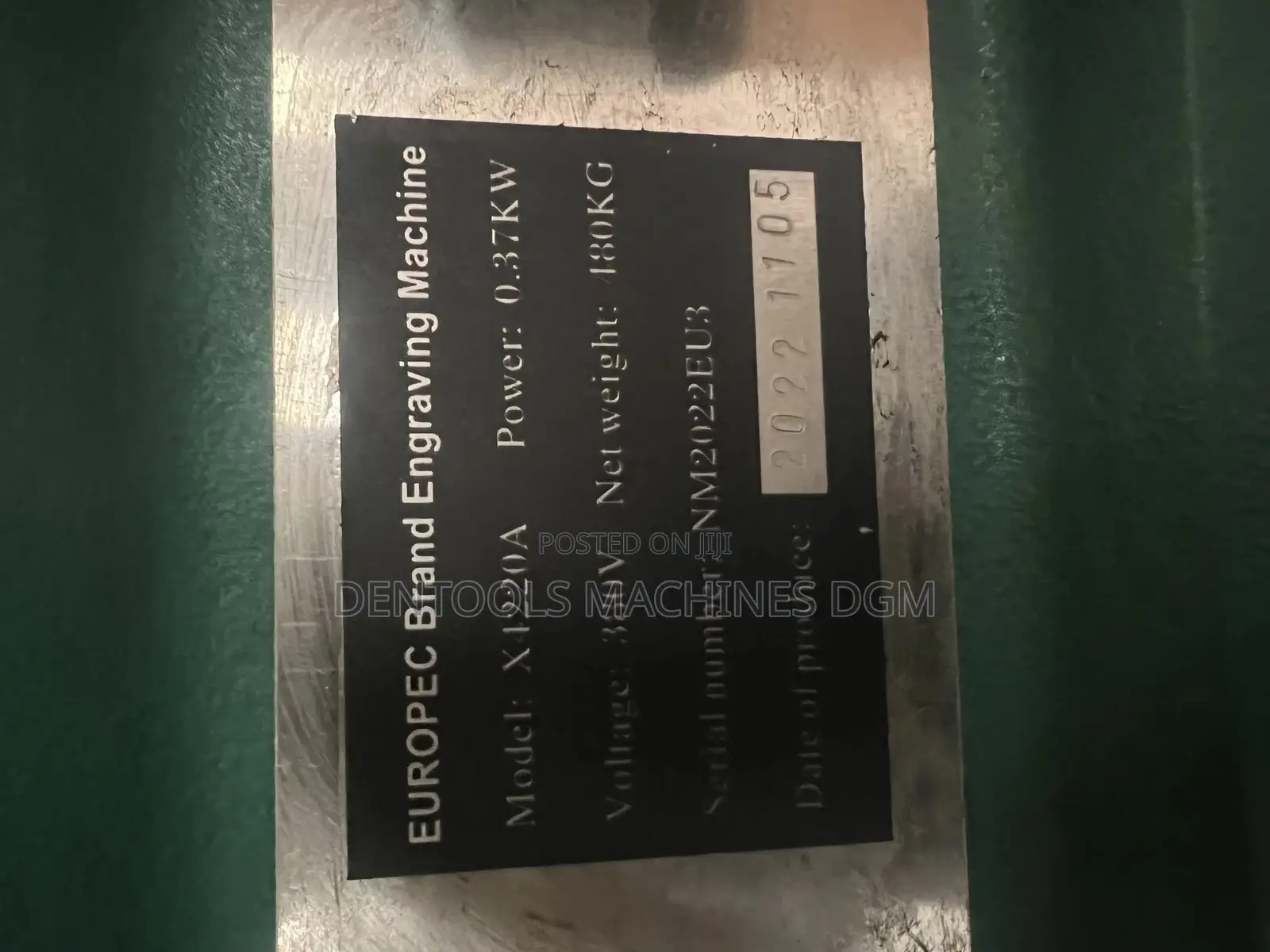

.High spindle speed, low noise .With vertical feed mechanism .Supplied with local copying apparatus .Compact construction, easy to operate .If equipped with special accessories, wide application to be available Main specifications Model: X4220A Max. milling length(at reduced scale 1:1.5)220mm Max. milling width ( at reduced scale 1:1.5) 200mm Distance between centers of pantograph: 380mm Range of engraving proportion: 1∶15-1∶8 Worktable size(L × W): 360×200mm Travel of worktable :longitudinal/ Cross/ Vertical 300/160/360mm Copy table size(L × W): 500×320mm Travel of copy table: longitudinal/ Vertical: 200mm/320 Rotational range of copy table: 360° Max.distance from spindle nose to working table surface: 360mm Spindle:Rapid travel/Micro-movement travel: 6mm/1mm Spindle speed: steps/range: 12steps/1600-20000rpm Clamping dia.of spring collets: 3,4,6,8,10mm or 1/8”,3/16”,1/4”,5/16”,3/18” Motor Power/ Voltage : 0.37kw/220,380,420,440V Speed/ Frequency: 2840rpm/50
