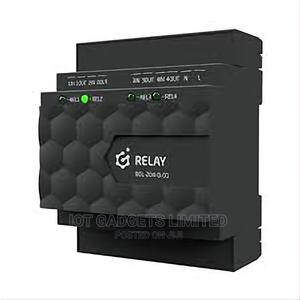

Grenton Relay 4hp, Din, Tf-Bus
3M
Brand
Other
Type
Brand New
Condition
Store address
Abuja (FCT) • Wuye
Plot 775 Franky Mall Plaza, Opp Shafa Filling Station, Wuye Abuja
Open now
• Mon - Sat, 09:00-18:00
The Grenton RELAY 4HP (High Power) module enables switching of 4 different high power devices (e.g. light, electric heating, electrical sockets). The module is equipped with the energy consumption measurement bridge to allow power measurement of the connected device / receiver.DC power supply: 24 V
maximum power consumption: 2.4 W
maximum device current(): 100 mA
maximum wire cross section: 2.5 mm2
rated load voltage: 230 Vac or 24 Vdc
minimum switching capacity: 1W
maximum switching capacity for AC1 class load: 3600 VA
relay type: NO, inrush
weight: 165 g
size (DIN): 4
dimensions (h/w/d): 58/71/90 mm
operational temperature range: 0 – 45 °C
