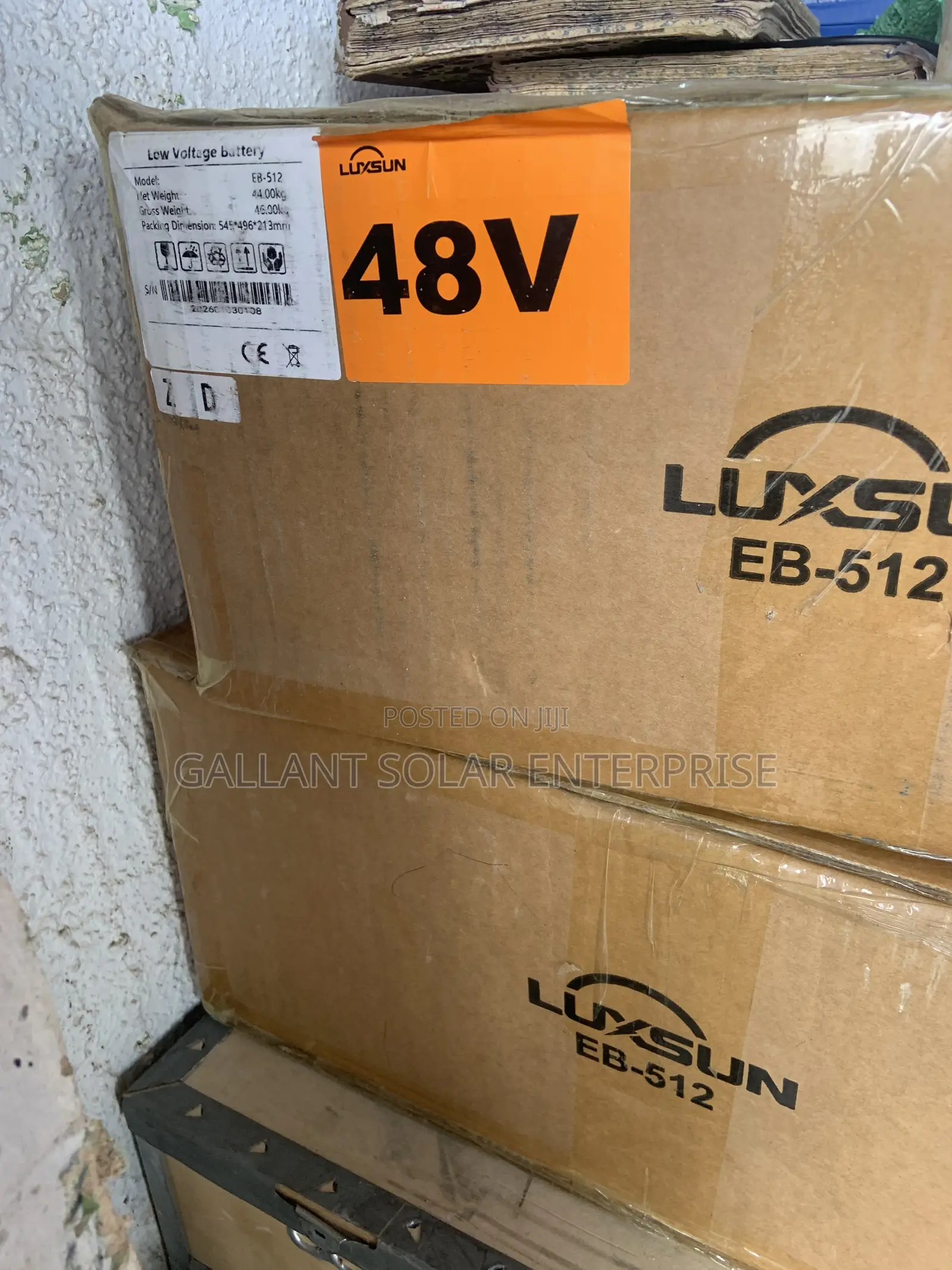

Luxsun 5kwh Lithium Battery 48v
Luxsun
Brand
Deep Cycle Batteries
Type
200aH
Battery Capacity
Brand New
Condition
48 V
Rated Voltage
5000kWh
Total Battery Energy
51.2v nominal, 48v system
• capacity: 5.12kwh = 100ah @ 51.2v
• usable energy: 4.6kwh @ 90% dod
• battery type: lifepo4 prismatic cells grade a
• cycle life: 6000 cycles @ 80% dod. ∼10-12 years
• bms: 100a smart bms with active balancing
charge / discharge
• max charge current: 50a
• max discharge current: 100a continuous, 120a peak 10s
• max charge voltage: 56.4v - 57.6v
• low voltage cut-off: 44v - 45v
• charging time: 2-2.5hrs with 50a charger/solar
• self discharge: <3% per month
communication & safety
• communication: rs485, can, rs232 + bluetooth + mobile app "luxsun bms"
• protection: overcharge, over-discharge, overcurrent, short circuit, high/low temp, cell balance
• parallel: up to 16 units parallel = 81.9kwh total
• ip rating: ip20 indoor. wall mount
• operating temp: -
• warranty: 5 years
