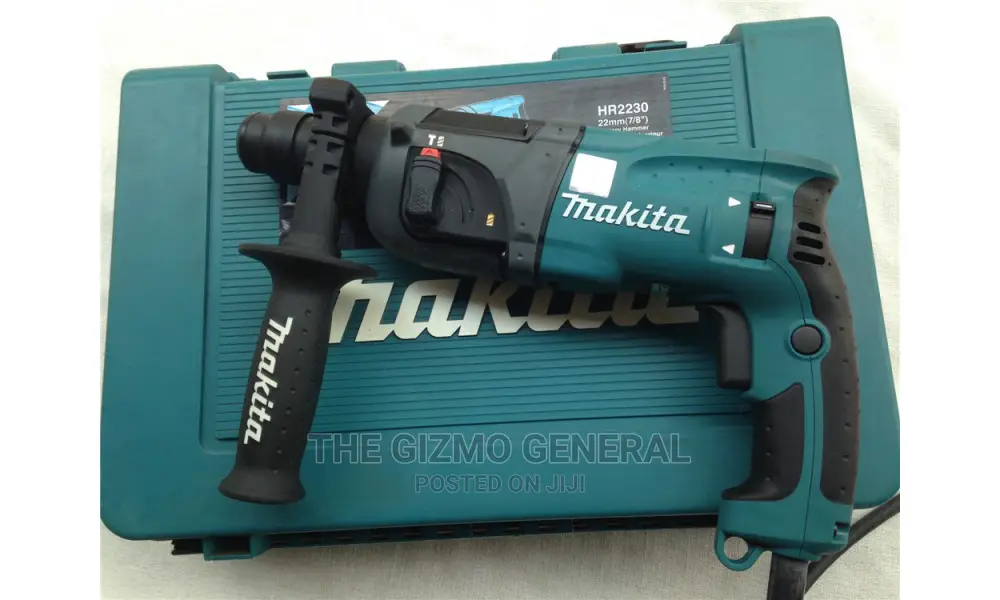

22mm sds-plus rotary hammer hr2230
models hr2230 have been developed as the most compact and lightweight models of makita sds-plus rotary hammer range.
User benefits
double insulation
variable speed
with reversing function.
Torque limiter: the drill stops when the bit hits against reinforcements.
Built-in dust collection system
built-in job light
standard equipment
carrying cases for mains machines - plastic
technical specifications top
impact energy 1.2 j
max in concrete 22 mm
max. In wood 28 mm
max. In steel 16 mm
blows per minute 0-5,000 bpm
vibration k factor1.5 m/sec2
input wattage 710 w
net weight1.7 kg
no load speed 1500 rpm
vibration: drilling2.5 m/sec2
vibration: hammer drilling14 m/sec2
noise sound pressure86 db(a)
noise k factor3 db(a)
noise sound power97 db(a)
