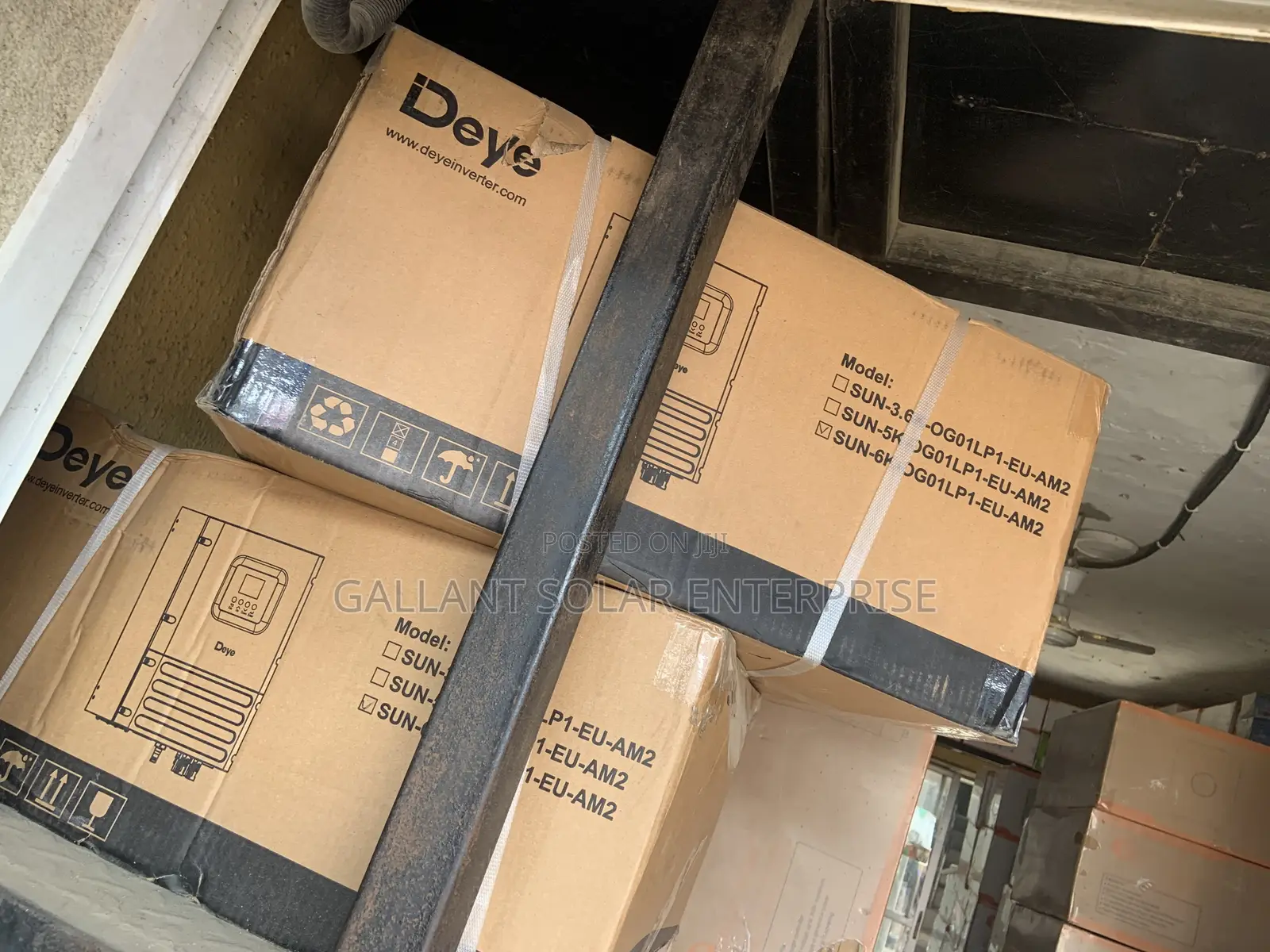

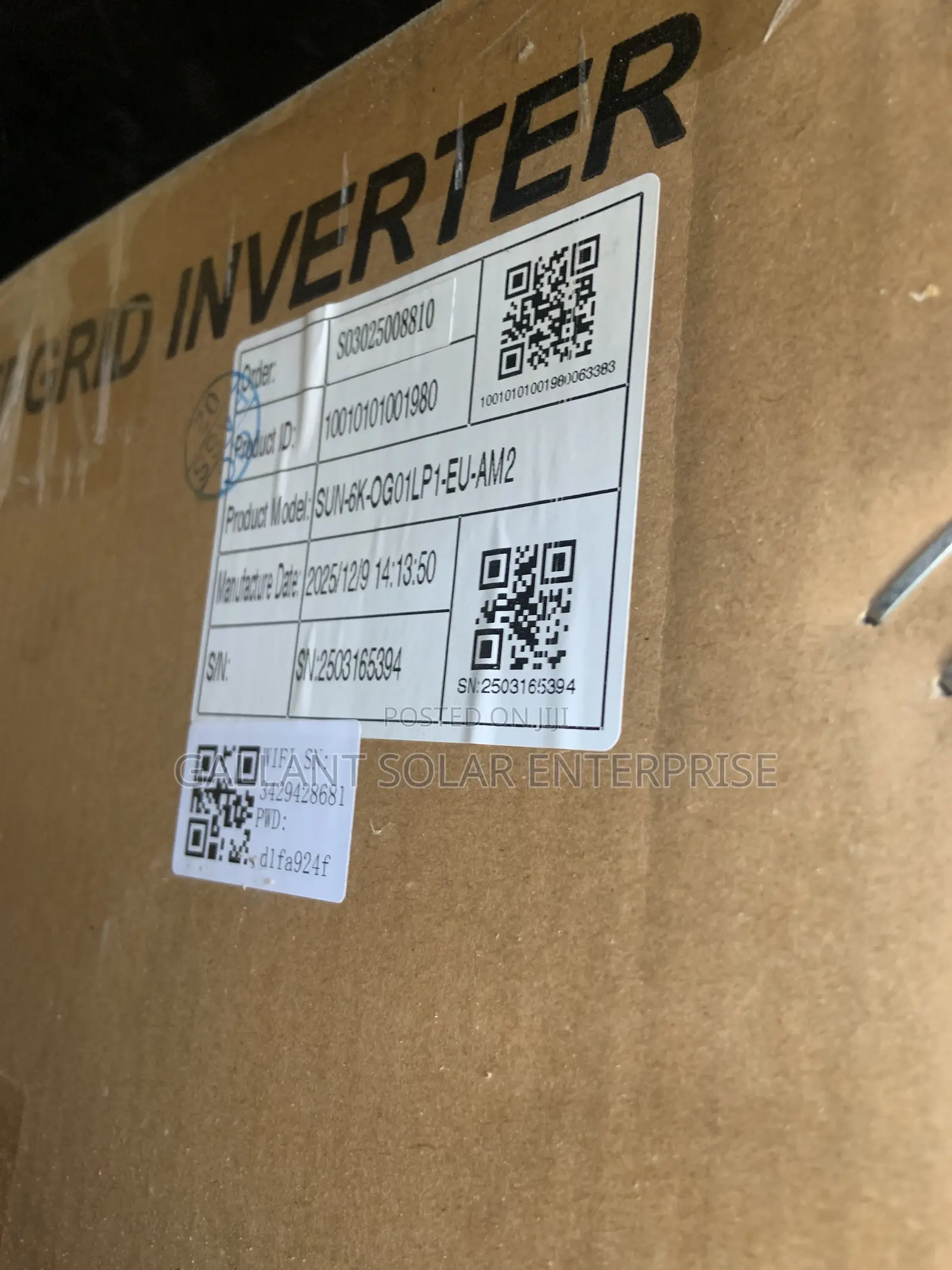

Deye 6kva Solar Inverter 48v

+1

2

Deye

Brand

Inverters

Type

Hybrid Inverter

Inverter Type

50/60 Hz Auto

Frequency

Brand New

Condition

6000watts

Rated Power Output

12000watts

Peak Power

6000va / 6000w • voltage: 230vac single phase ±5% • frequency: 50hz / 60hz auto • waveform: pure sine wave • surge power: 12000w for 10 seconds • transfer time: <10ms - ups level • efficiency: 97.6% battery & charging • battery voltage: 48vdc - range 40v - 60v • battery type: agm, gel, flooded, lithium lifepo4 • max charge current: 140a from ac + solar • solar charge current: 140a mppt • ac charger: 80a max • low battery cut-off: 40v - 48v adjustable • bulk charge: 56.4v - 58.4v adjustable • float charge: 54.0v adjustable solar / mppt • mppt type: dual mppt - 2 trackers • max pv input power: 7800w • max pv voltage voc: 500vdc • mppt voltage range: 125v - 425vdc • max pv current: 13a + 13a per mppt = 26a total • pv strings: 2 mppt, 2 string inputs, mc4 • max pv panels: 14x 550w jinko = 7700w
