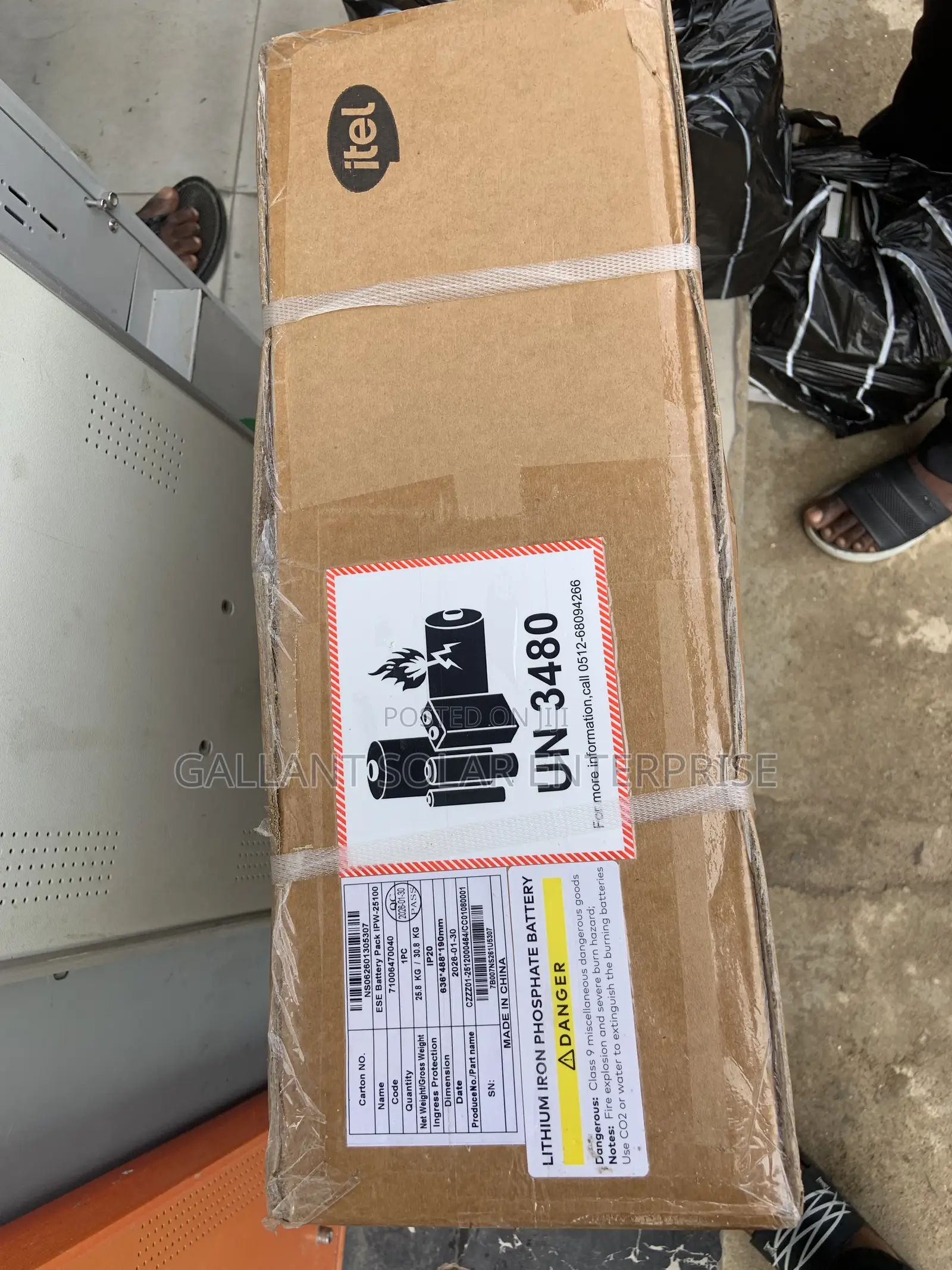

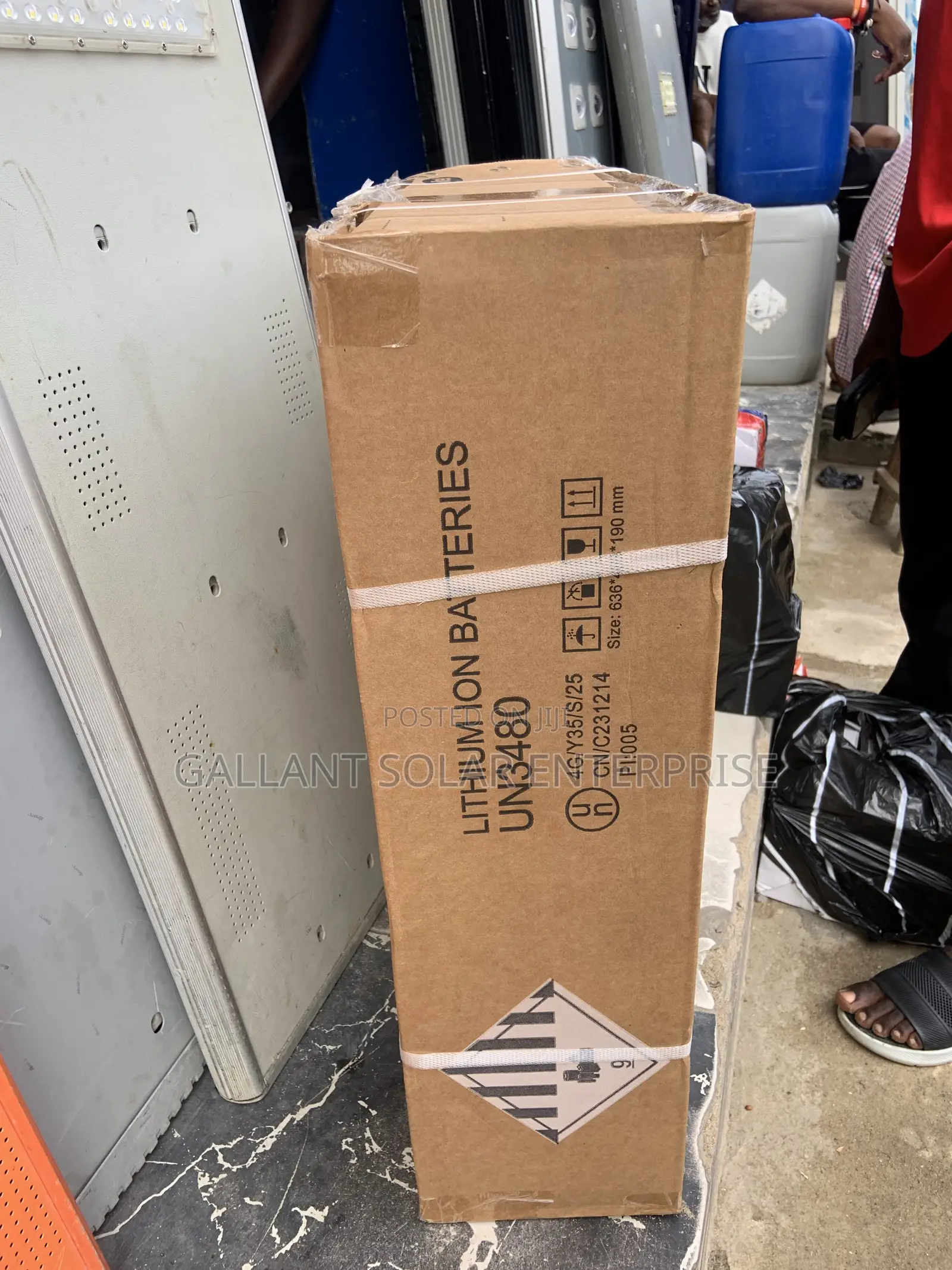

It-lfp24-100
• voltage & capacity: 24v, 100ah = 2.56kwh usable
• battery type: lifepo4. built-in 100a bms
• cycle life: 6000+ cycles @ 80% dod. ∼8-10 years lifespan
• charge/discharge: max charge 100a. max discharge 100a. recommended 50a
• dod: 80-90% usable. you can use 2.0-2.3kwh out of 2.5kwh
• communication: rs485, can. compatible with itel, must, haisic, felicity, cworth inverters
• design: rack/wall mount. ip20. operating temp 0°c to 55°c. weight ∼22kg
• warranty: 3-5 years depending on dealer
2. itel 48v/51.2v 2.5kwh - it-lfp51-50
• voltage & capacity: 51.2v, 50ah = 2.56kwh usable
• battery type: lifepo4. built-in 50a bms
• cycle life: 6000+ cycles @ 80% dod. ∼8-10 years lifespan
• charge/discharge: max charge 50a. max discharge 50a. recommended 25a
