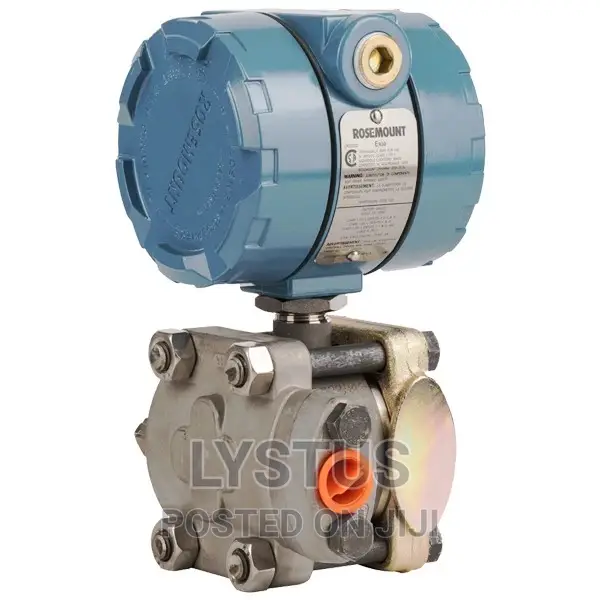

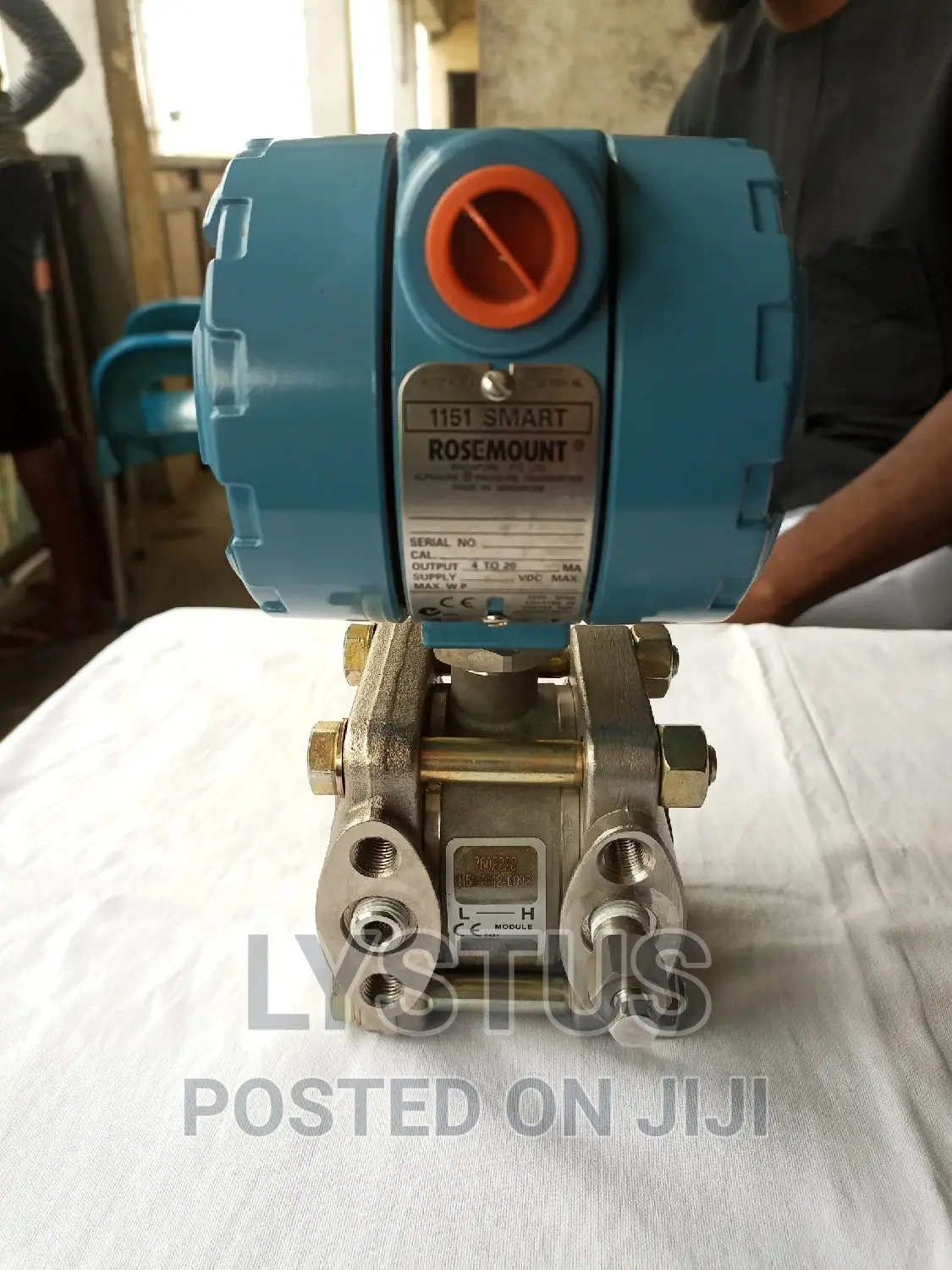

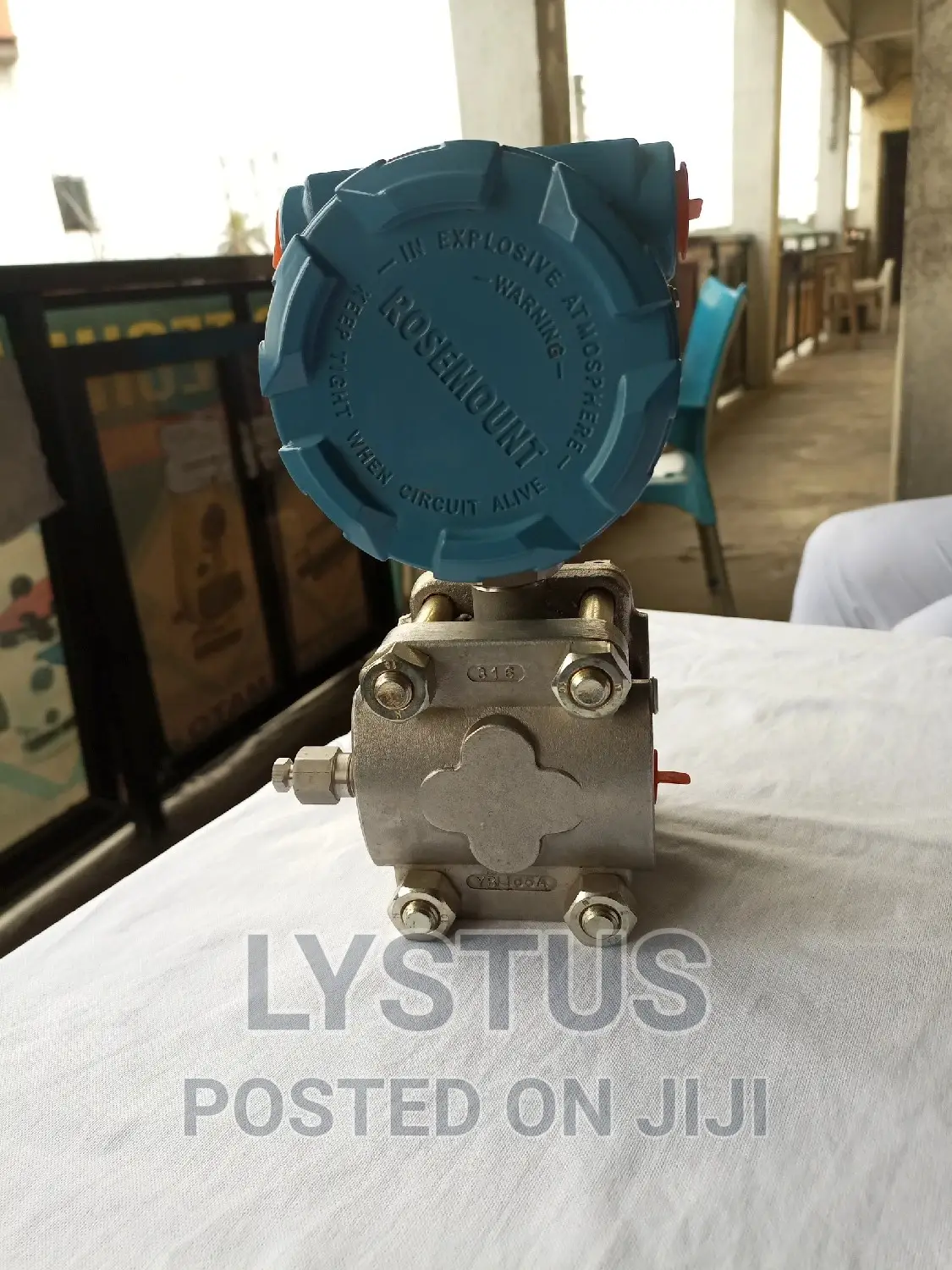

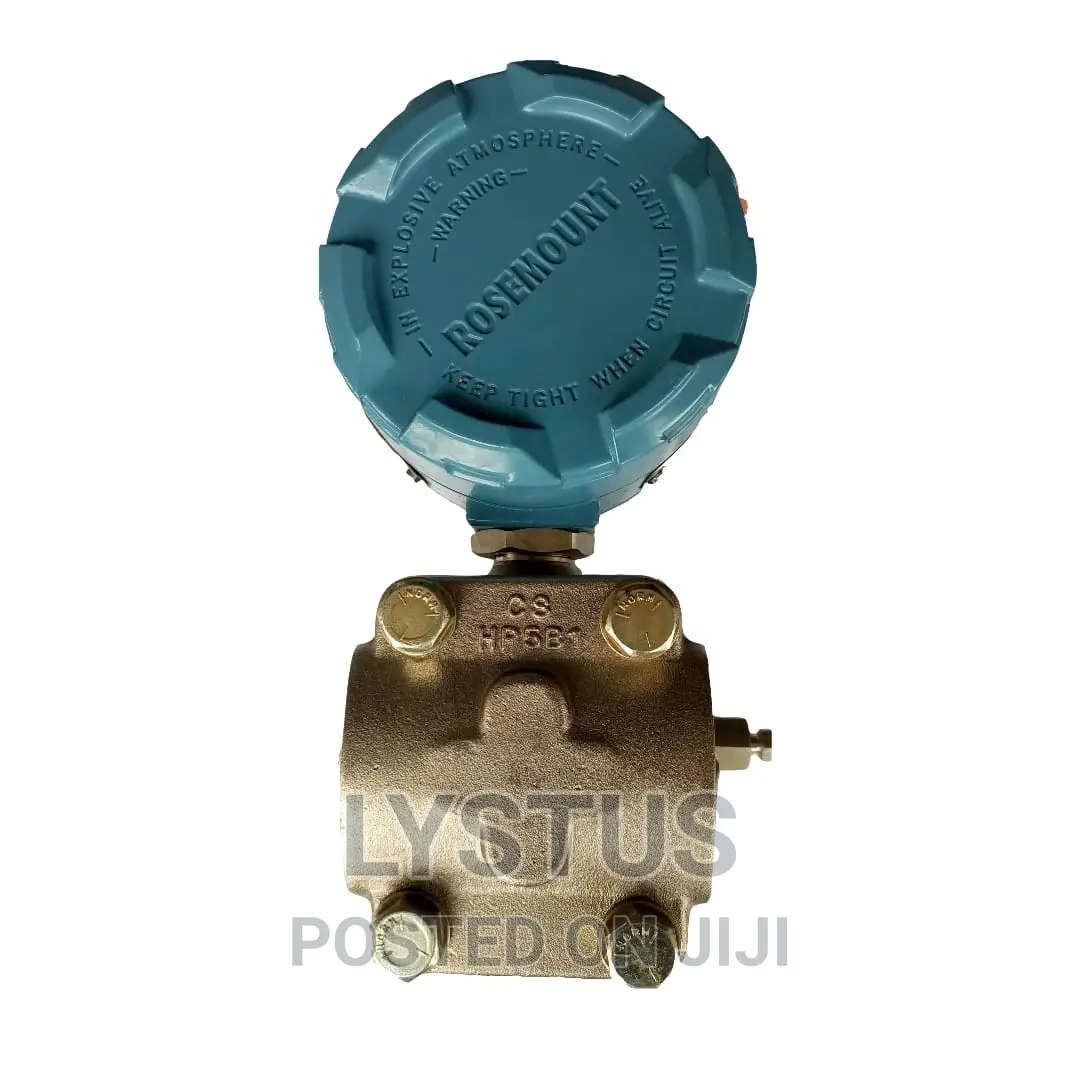

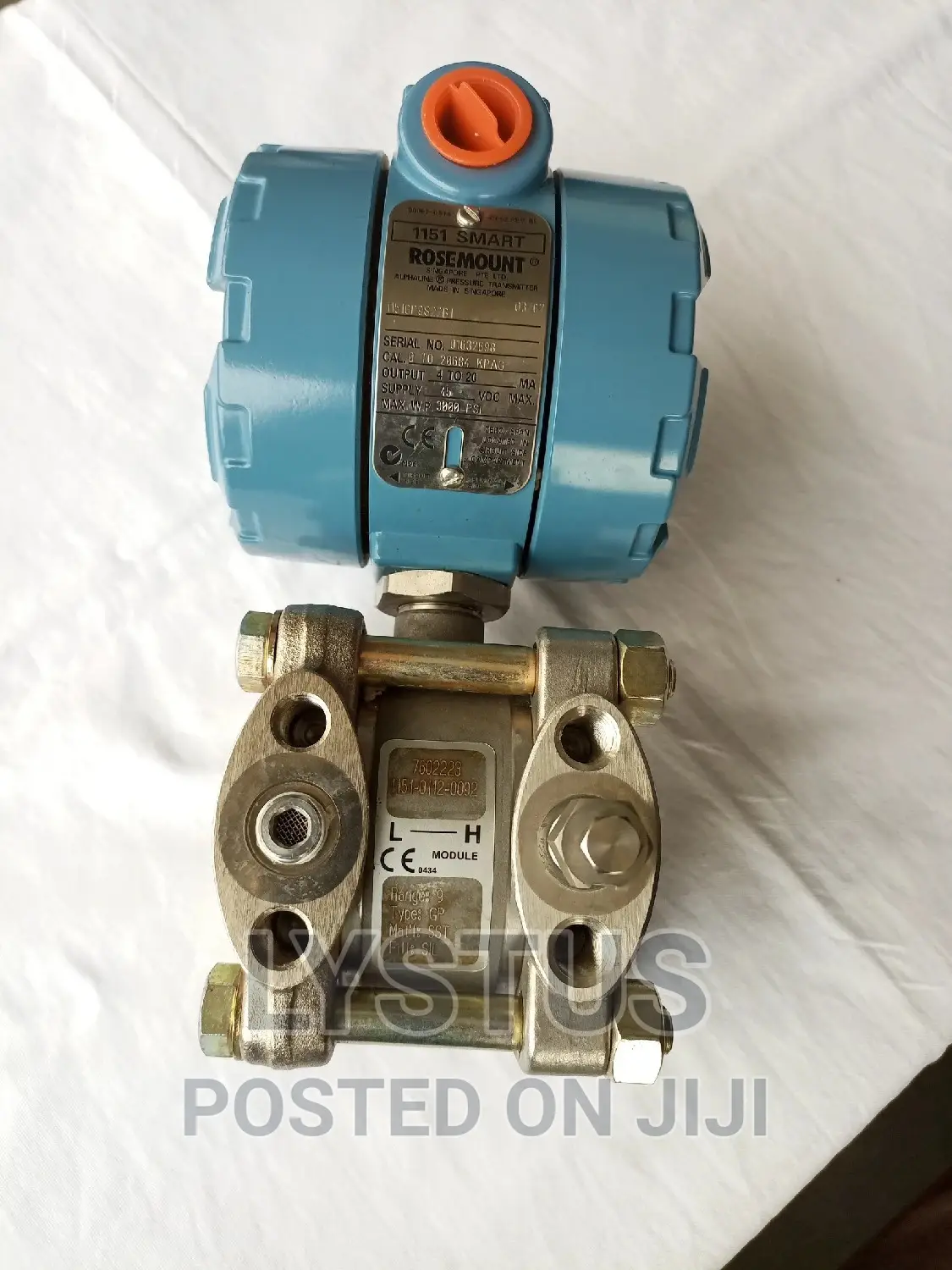

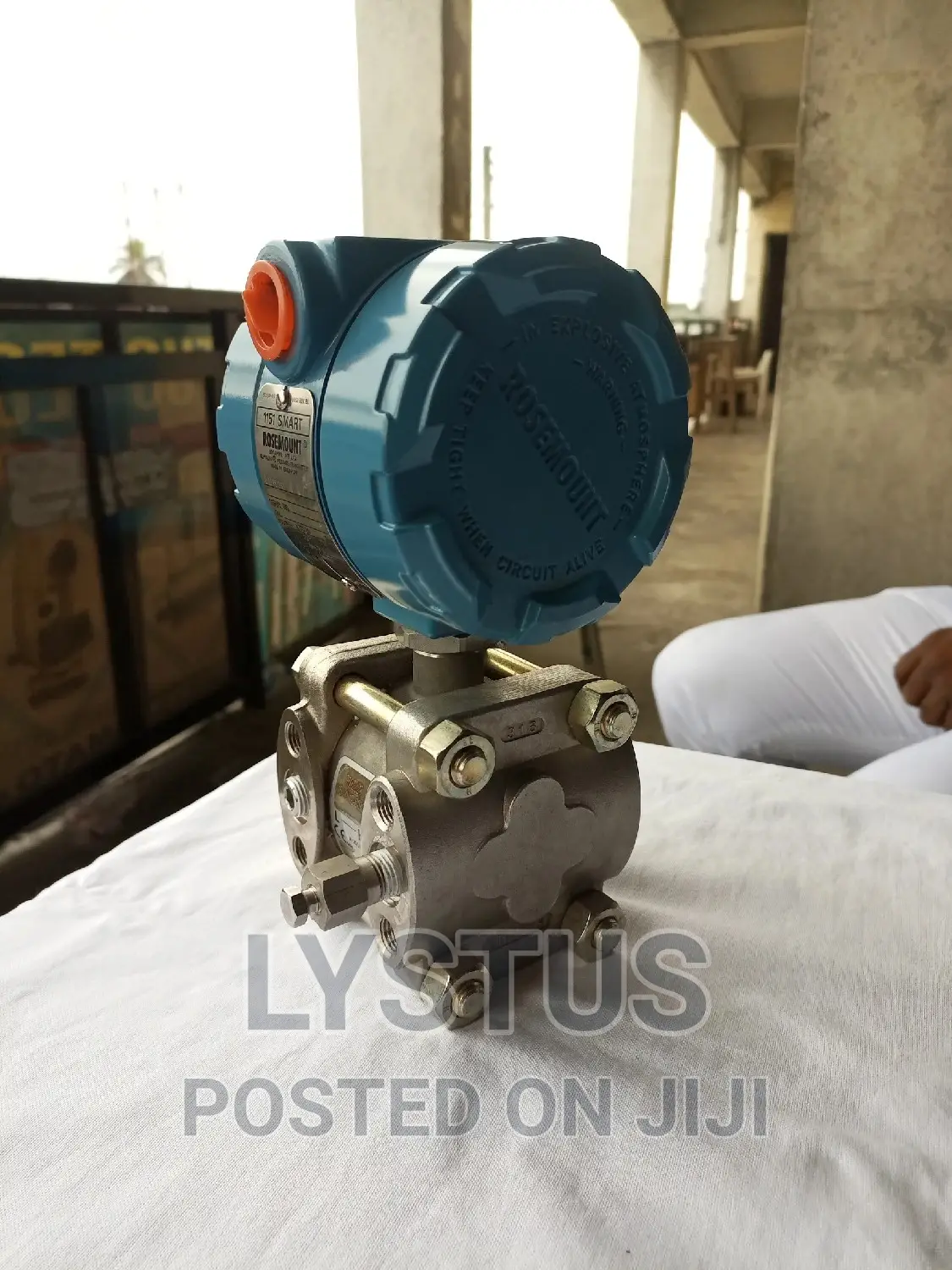

Rosemount 1151 Alphaline Pressure Transmitters

+1

Brand New

Condition

Other

Type

Store address

Rivers State • Port-Harcourt

No 11 Trans Amadi Industrial layout Bedkana yard opposite Zenith Bank plc

09:00-18:00

Specifications Output 4-20 mA dc; 10-50 mA dc Smart 4-20 mA dc, 4-20 mA dc square root of input with adjustable damping (Flow) Range 0-5′′ H2O to 0-1000 psid Accuracy SMART: +/-0.1% of calibrated span Analog: +/-0.2 to +/-0.25% of calibrated span Materials Isolating Diaphragms: 316L SST, Hastelloy C, Monel, Tantalum Process Flanges Adapters: Cadmium and Nickel plated CS, 316 SST, Hastelloy C, Tantalum Features Installed Stability: ± 0.01% of URL for 2 years Protocols available include 4-20mA HART, Analog, and Low Power Differential, gauge and absolute pressure measurements Pressure ranges up to 3000 psi
