Insulation Tester 15kv)15000v

+1

Meter

Type

Brand New

Condition

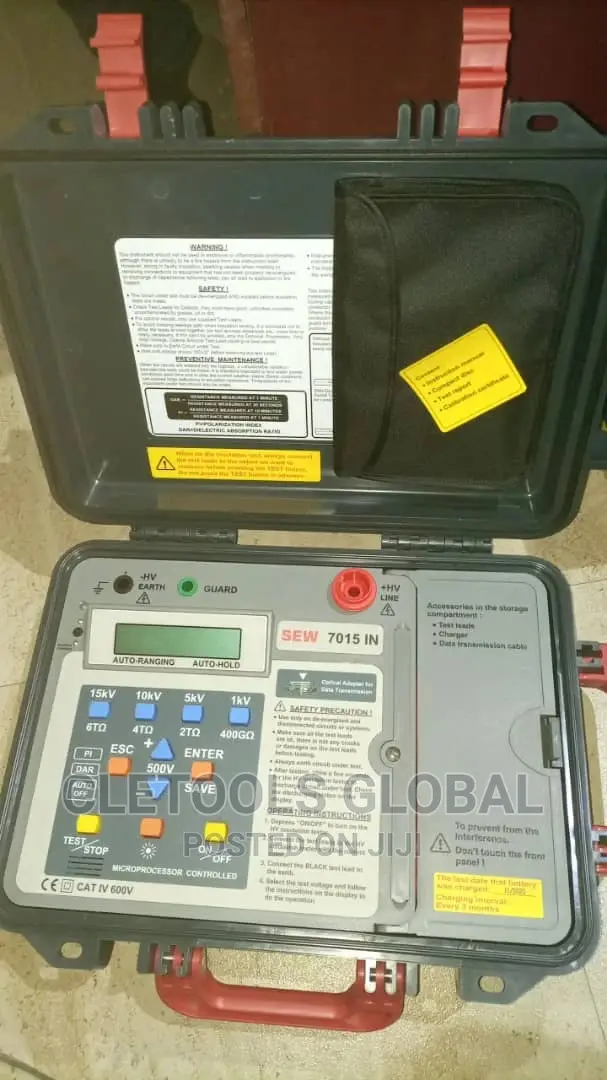

Ad details sew digital high voltage insulation tester 7015 in model: 7015 in manufacturer: sew origin: taiwan warranty: 12 months specifications test voltage from 500vdc to 15kvdc adjustable in 500v steps preset buttons 1kv, 5kv, 10kv, 15kv insulation resistance 70gω/0.5kv 70gω at 0.5kv~2tω at 15kv accuracy ±(5%rdg+5dgt) resolution 2gω : 0.001gω 20gω : 0.01gω 200gω : 0.1gω 2tω : 1gω short circuit current up to 5ma pi (polarization index) √ dar (dielectric absorption ratio) √ voltmeter acv : 0~600v dcv : 0~600v accuracy : ±(2.0%rdg+3dgt) resolution : 1v power source rechargeable battery ac adapter input : 100-240v~, 0.4a ,50-60hz output : 24v ... 0.62a dimensions 430(l) x 324(w) x 127(d)mm weight approx : 5kg accessories instruction manual test leads (al-58, al-30ag, al-30hb, al-23ca) data transmission cable ca-232 compact disk (cd) for pc interface alligator clip (al-23ca) charger (cha-7010) test report
