Depth Micrometer 0-25mm Series128
Brand New
Condition
Mitutoyo
Brand
Calipers
Type
Analog
Display
150mm
Caliper Max Length
0.001mm
Caliper Resolution
0.003mm
Accuracy
mm
Measuring Units
Store address
Rivers State • Port-Harcourt
No 11 Trans Amadi Industrial layout Bedkana yard opposite Zenith Bank plc
09:00-18:00

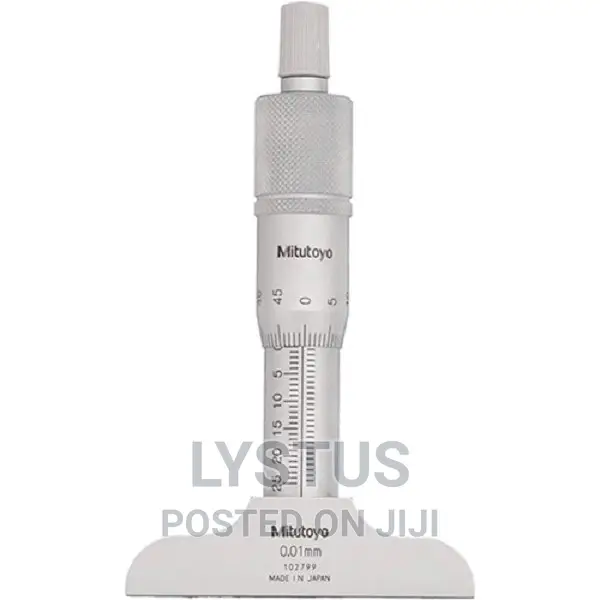

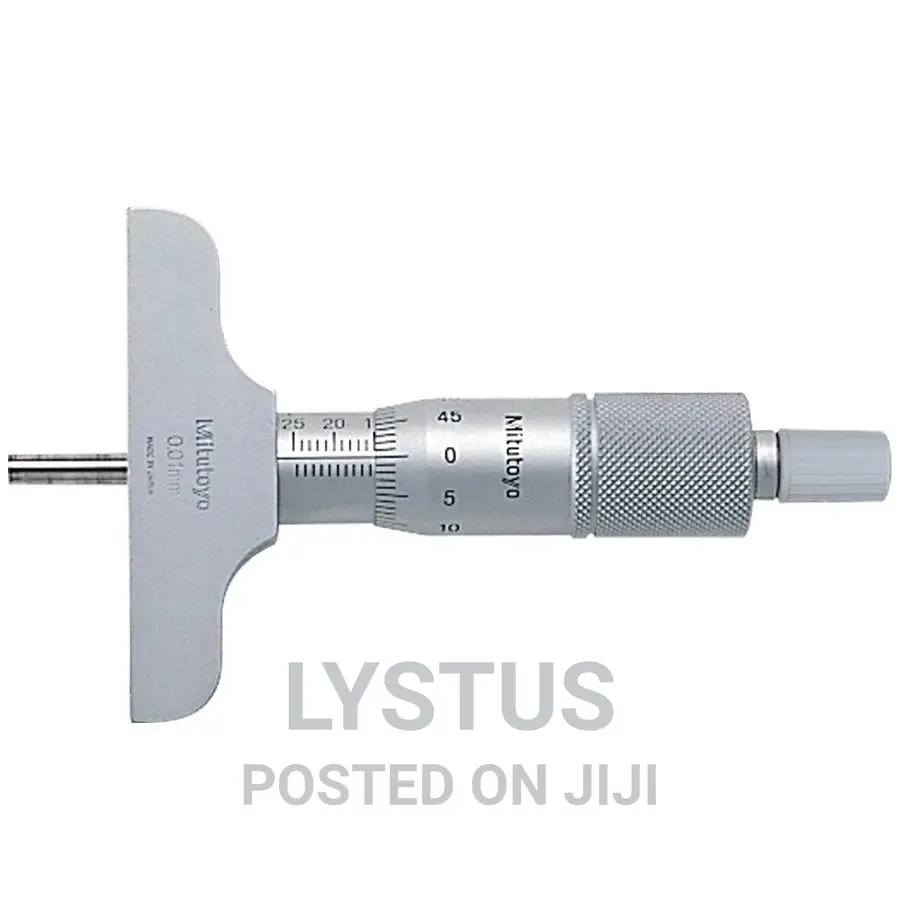

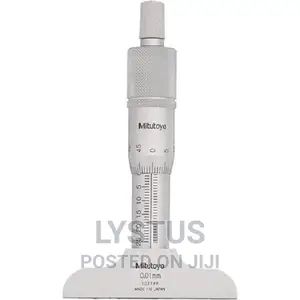

0-25mm Depth Micrometer series 128
The Mitutoyo Depth Micrometer Series 128 offers a4mm measuring rod with measuring rod clamp and a ratchet stop for constant force.
This vernier depth micrometer features Ø4mm measuring rod with measuring rod clamp. It has a ratchet stop for constant force
Range = 0-25mm
Accuracy = +/- 3μm for micrometer head feed
Graduation = 0.01mm
Base size = 63.5 x 16mm or 101.6 x 16mm, select when ordering
Flatness of reference face = 1.3μm for 63.5mm base, 2μm for 101.6mm base
Flatness of measuring face rod = 0.3μm
Parallelism = (4+L/50)μm L=Max measuring length (mm)
Rod diameter = 4mm
Item weight: 7.1 ounce
Material: Carbide
Brand: Mitutoyo

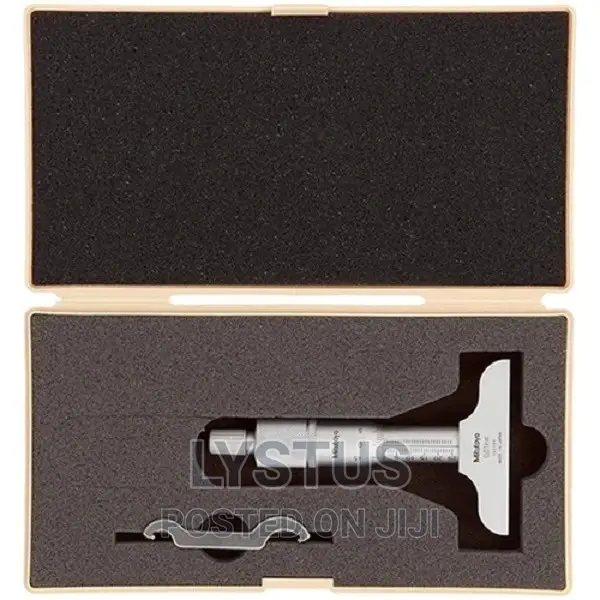

Case = includes fitted plastic case.
Mitutoyo Part # = 128-101, 128-102
