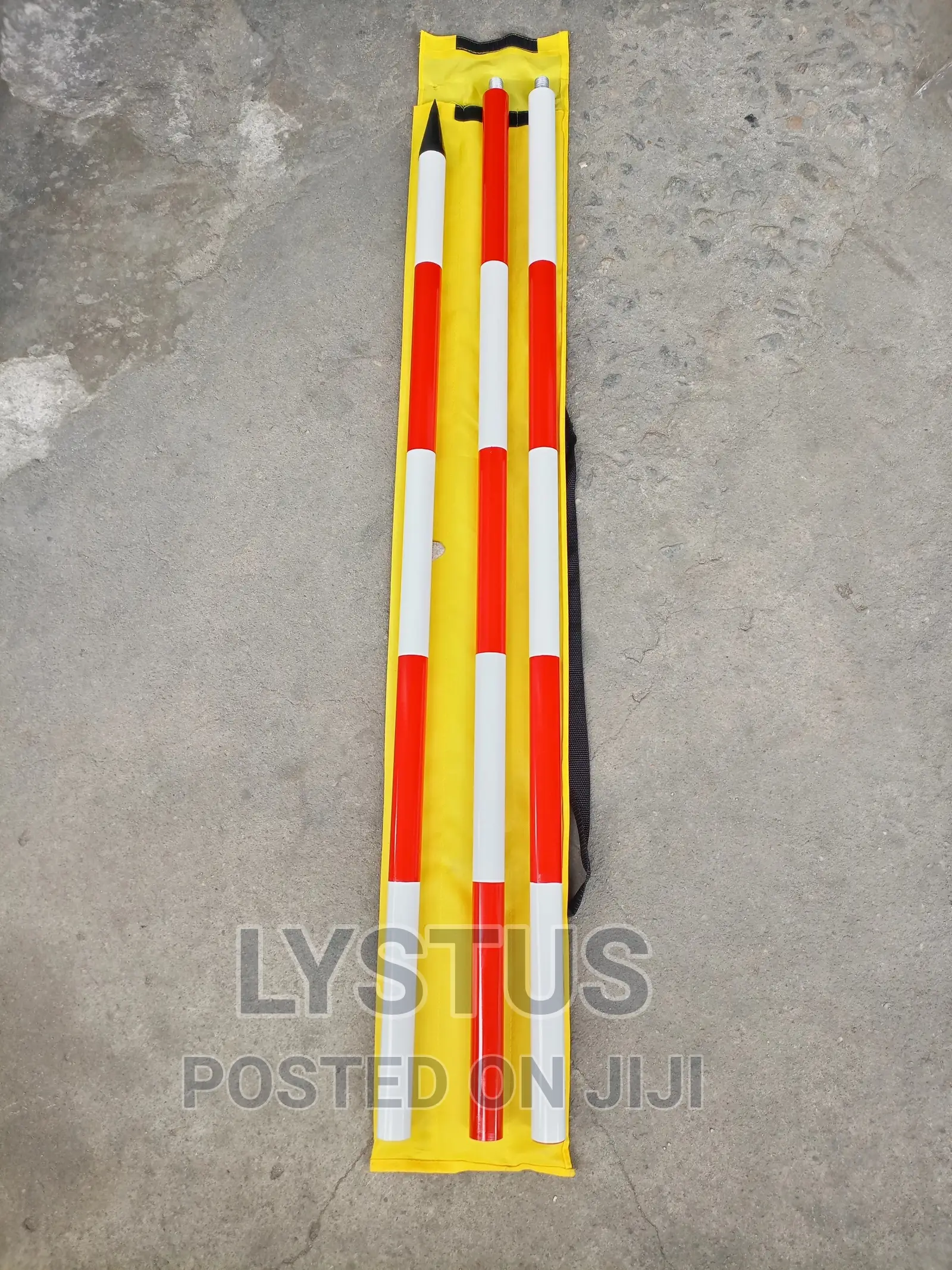

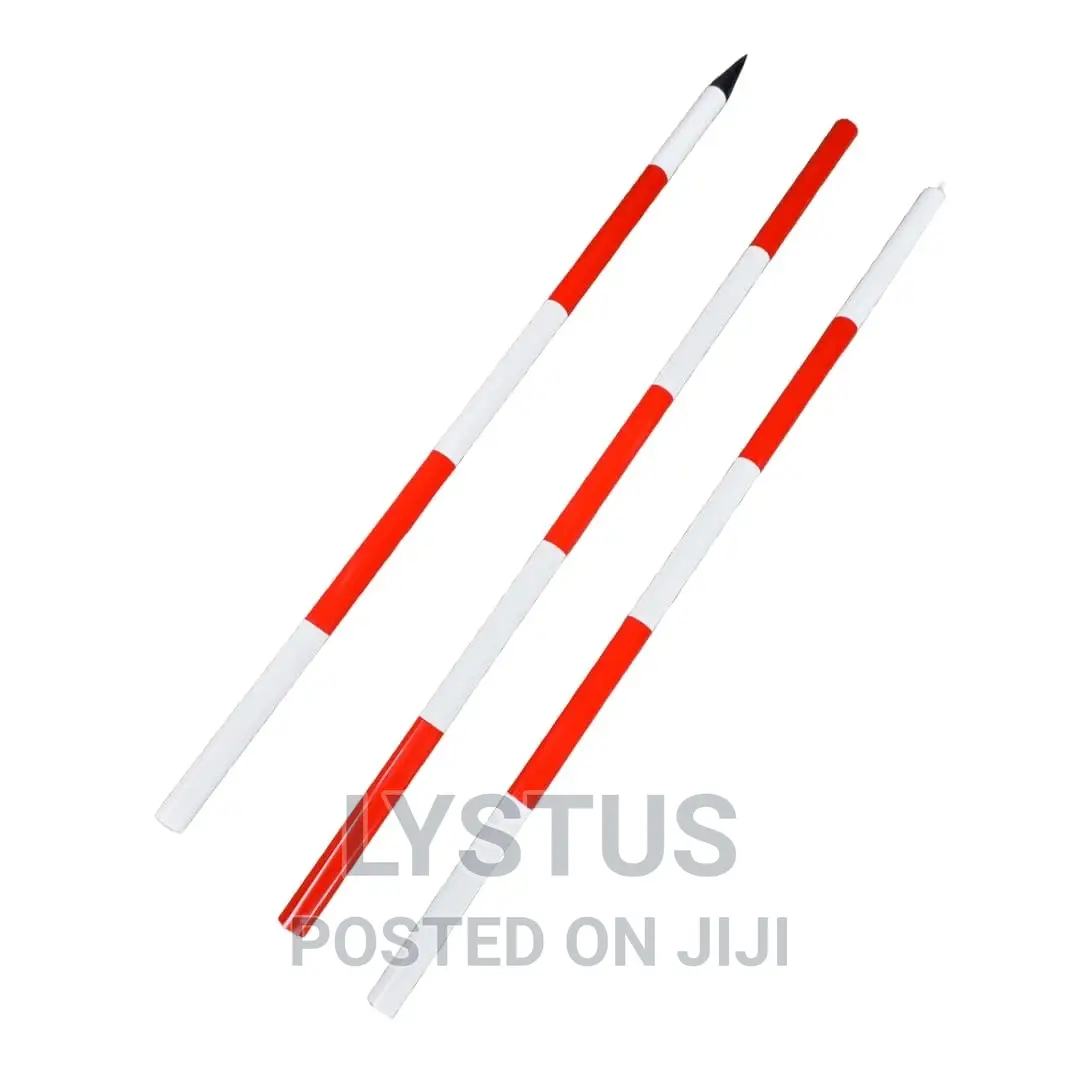

3m X 3 Sections Aluminium Range Pole for Surveying Marks
Brand New
Condition
Other
Brand
Other
Type
Store address
Rivers State • Port-Harcourt
No 11 Trans Amadi Industrial layout Bedkana yard opposite Zenith Bank plc
09:00-18:00
Range Poles are survey instruments that are used for spotting and marking the position of survey stations. They can also be used to range straight lines. If a range rod is longer than 12 feet, it’s called a ranging pole. And it can be used for measuring long survey lines along property boundaries.
1.Alumkinum Range Pole
2.Screw-in Locking (S)
3.3m (9.8ft), 2 sections
4.Red and white marking
5.Red Carrying Bag
6.w/o. Adapter
Specifications
Model: ARP/S3-3
1.Locking Style: screw-in
2.Maximum Length: extended to 3m (9.8ft)
3.Minimum Length: disassembled to 1m (3.3ft)
4.Sections: 3 sections
5.Tube Diameter: 28mm (1.1")
6.Tube Thickness: 1mm
7.Color: alternating red and white
8.Accuracy: 1)Full Length: ±2mm; 2)Per Meter: ±1mm; 3)Vertical: ±0.5mm/m
