5" NPT 150mm Long Sch40 Barrel Nipple

+1

Brand New

Condition

Other

Type

Store address

Rivers State • Port-Harcourt

Block H Shop No. 6 Building Material Line, Mile 3 Port Harcourt.

Mile 3 Building Materials Off UST Roundabout. Company Reg. No -2432536

Closed now

• Mon - Sat, 08:00-18:00

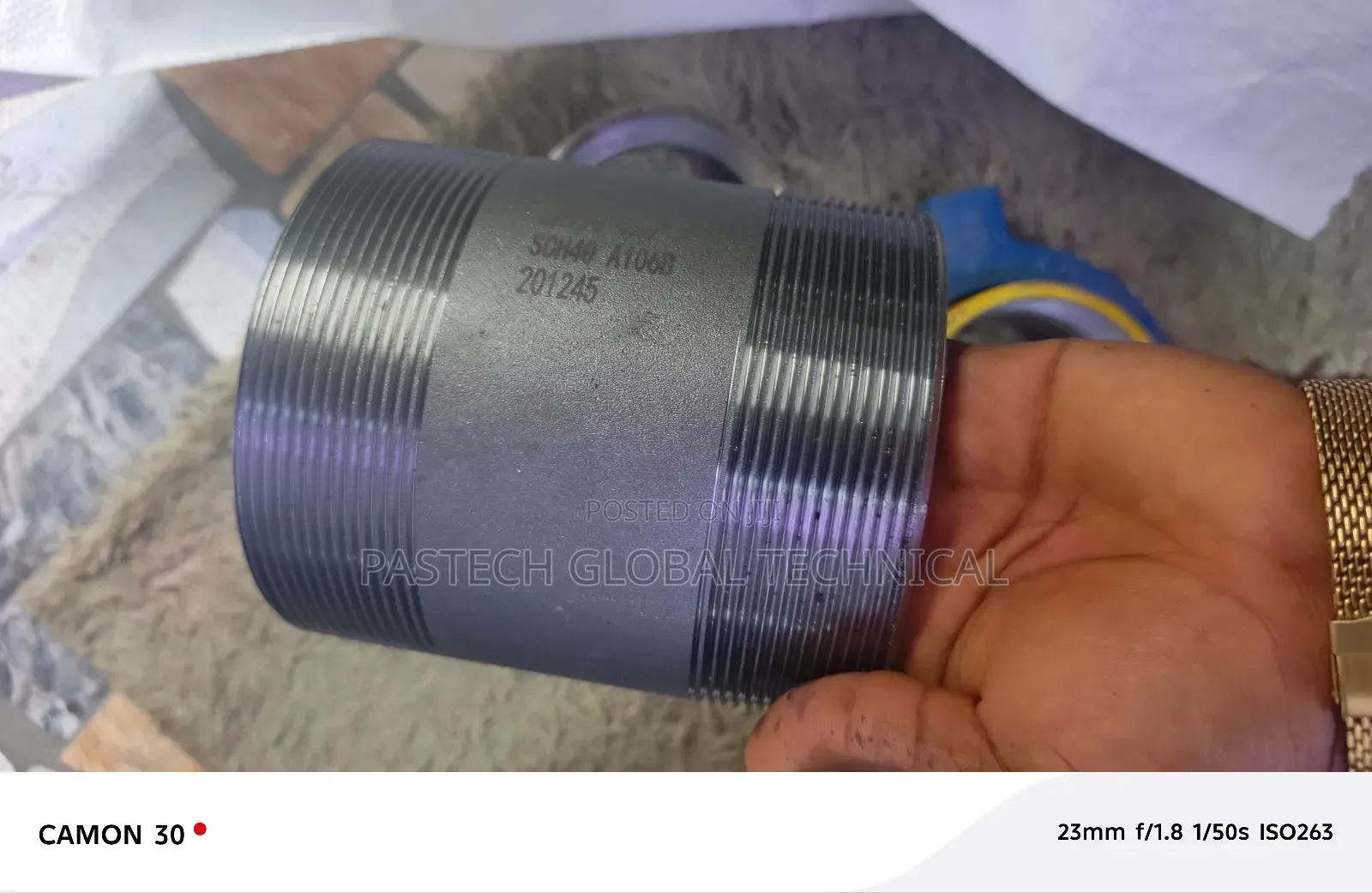

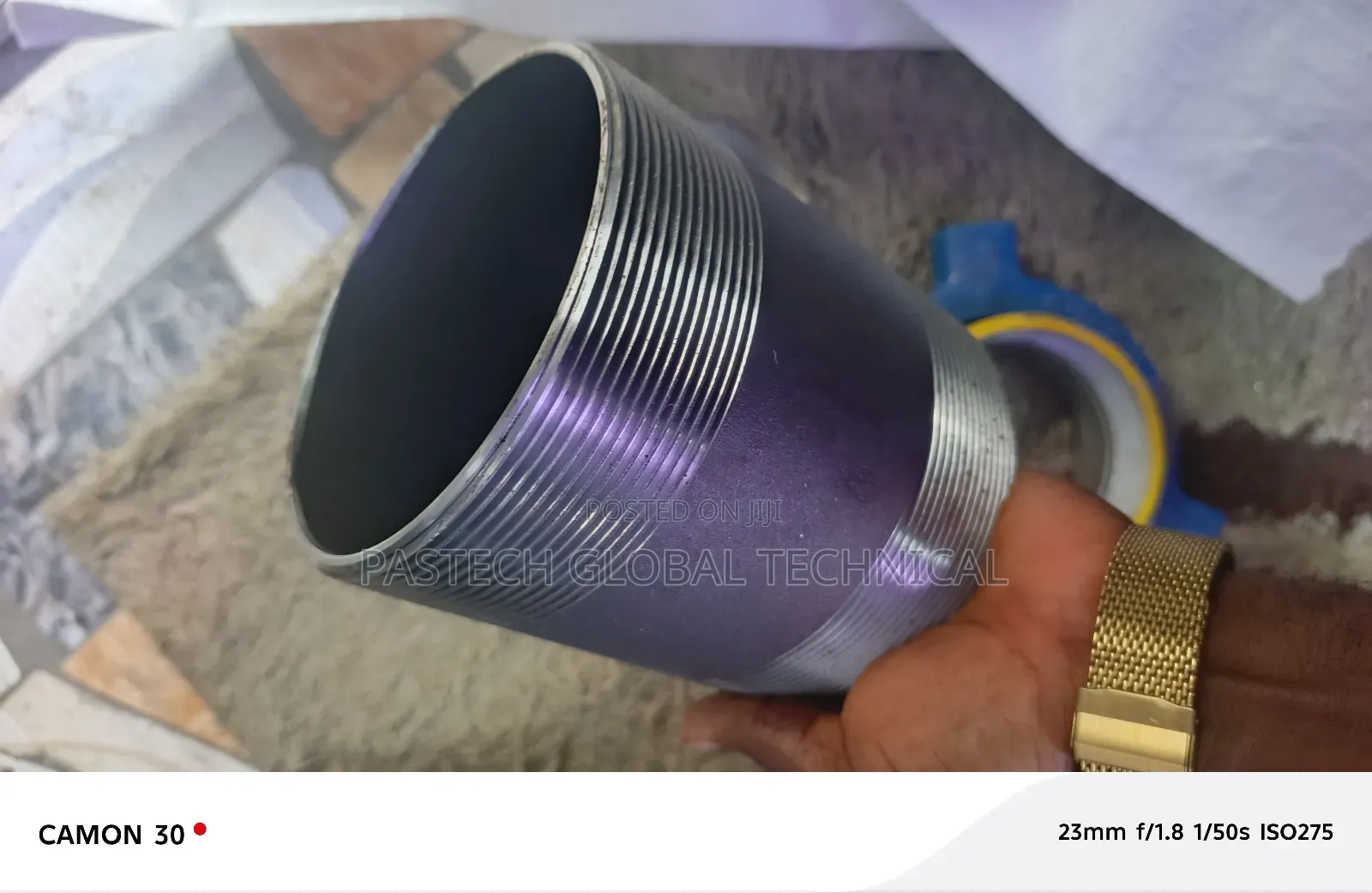

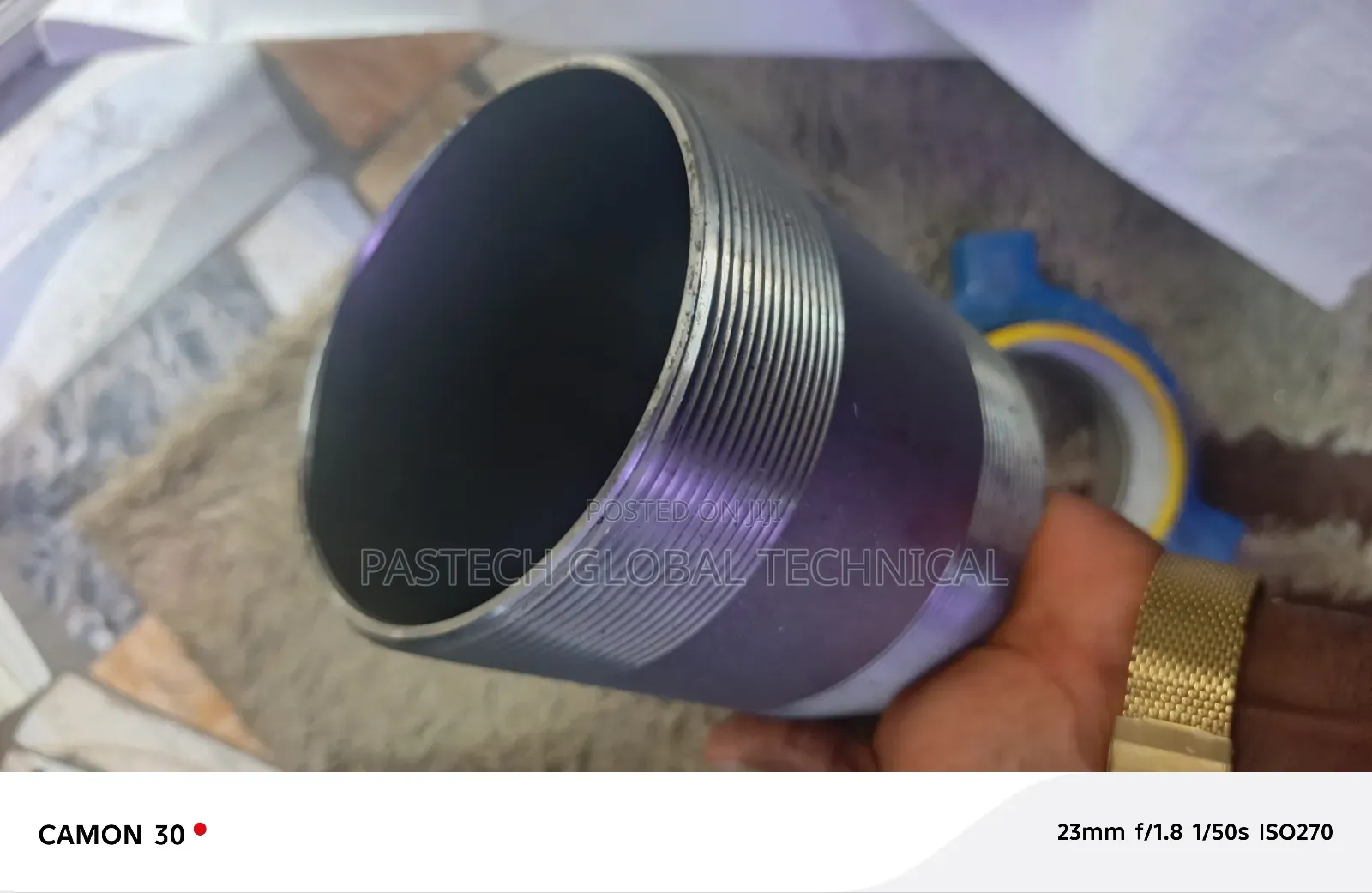

5" NPT 150 mm Long Schedule 40 Barrel Nipple is a short length of pipe with male NPT threads on both ends, used to connect two female-threaded fittings or equipment in a piping system. General Description Type: Barrel nipple (also called a pipe nipple) Size: 5-inch nominal pipe size (NPS) Length: 150 mm (approximately 6 inches) Ends: Both ends threaded with NPT (National Pipe Thread) per ASME B1.20.1 Schedule: 40 (standard wall thickness for medium-pressure applications) Dimensions & Weight Outside Diameter (OD): ~141.3 mm (for 5" NPS pipe) Wall Thickness (SCH 40): ~6.55 mm Inside Diameter (ID): ~128.2 mm Length: 150 mm overall, with threaded portions on both ends Carbon Steel (ASTM A106 Gr. B / ASTM A53)
