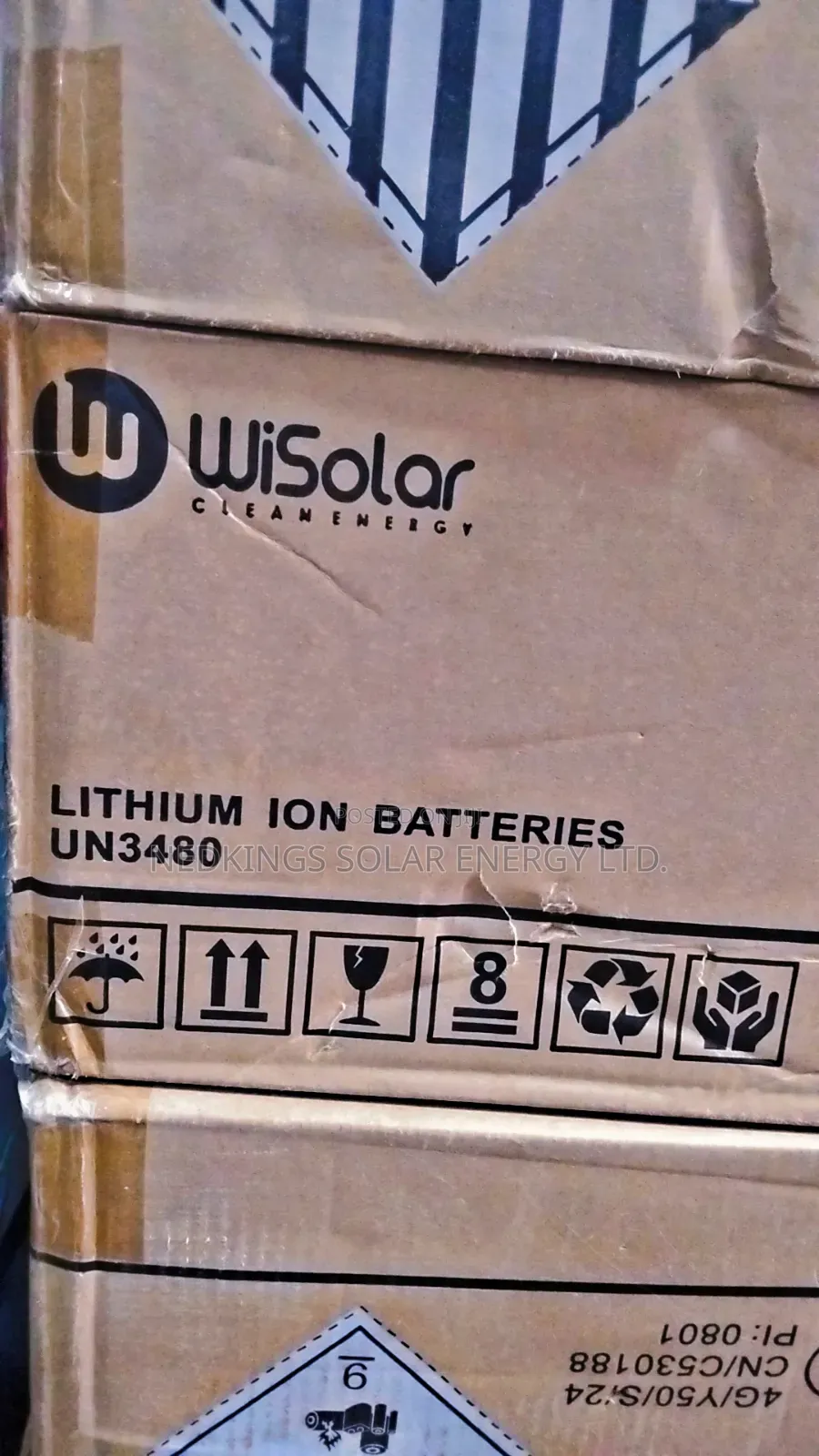

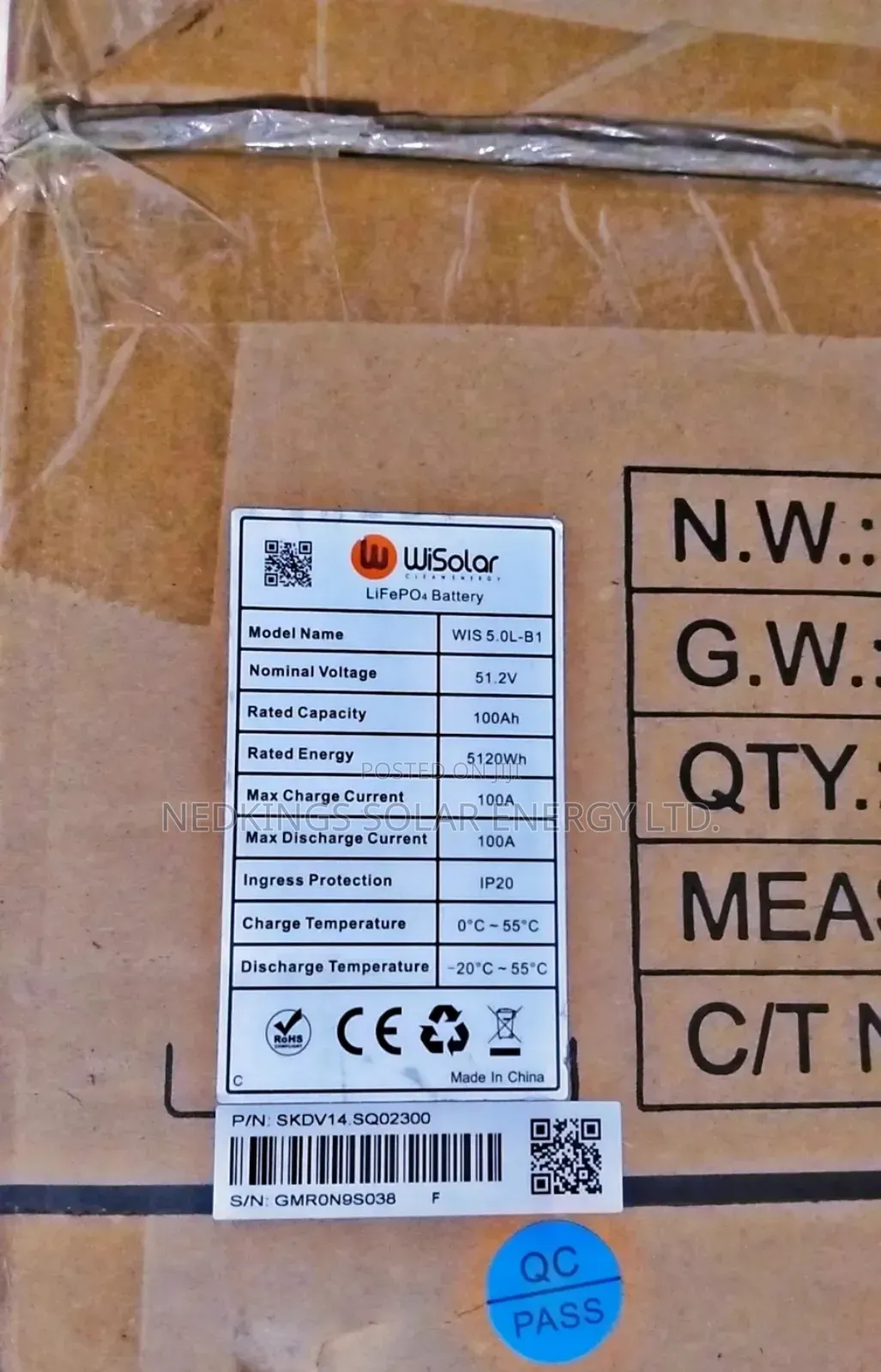

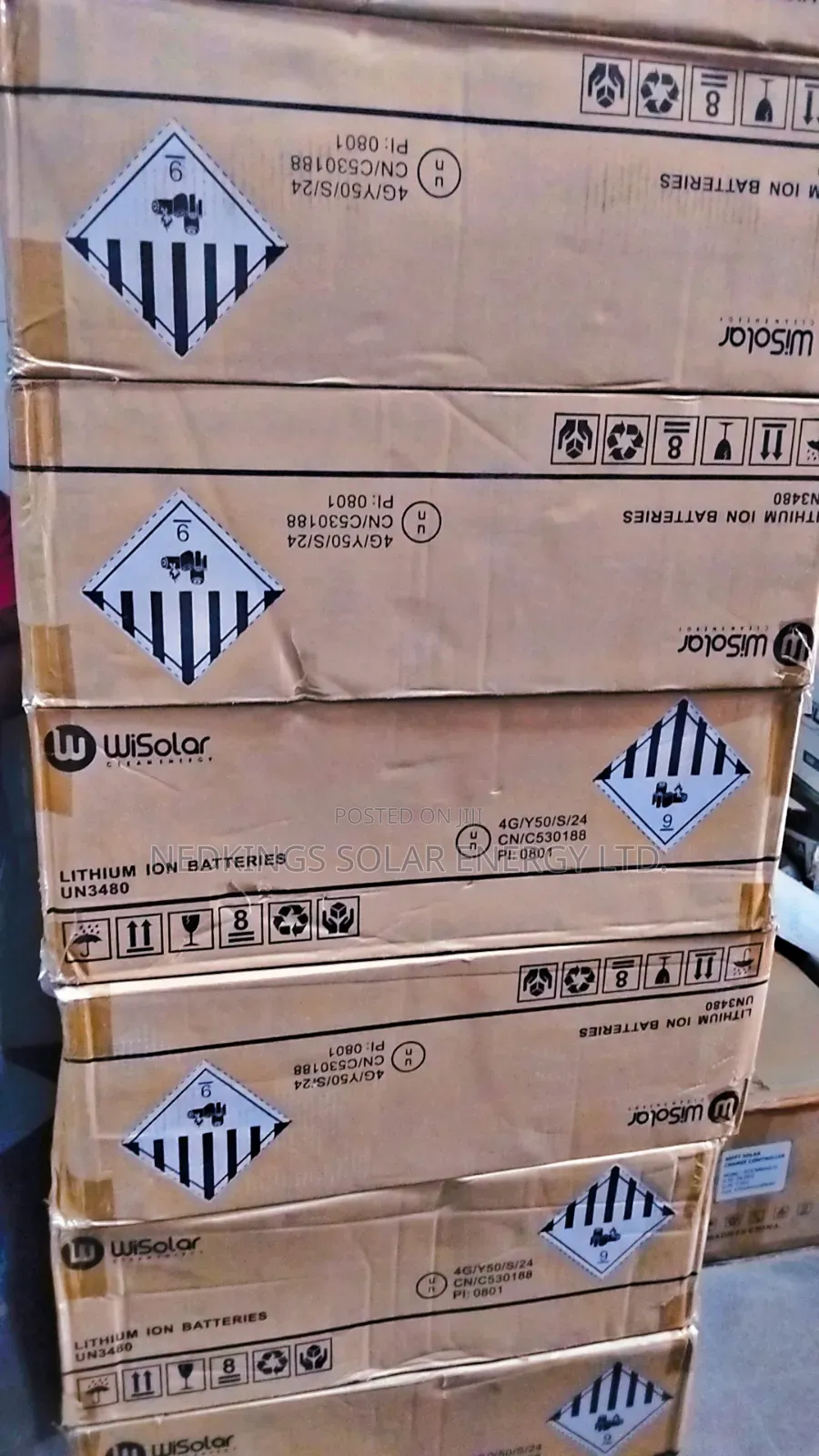

The wisolar 5kwh 51.2v lithium battery is a high-performance lithium iron phosphate (lifepo4) energy storage unit designed for residential and commercial solar systems. it typically features a 100ah capacity and provides a long service life of over 6,000 cycles at 80-90% depth of discharge (dod).
technical specifications:-
feature specification
nominal energy 5.12 kwh
nominal voltage 51.2v
nominal capacity 100ah
battery chemistry lithium iron phosphate (lifepo4)
cycle life ≥ 6,000 cycles @ 80% dod
max charge voltage 58.4v
discharge cut-off voltage 40v – 45.6v
max continuous charge/discharge current 100a
parallel scalability up to 15 or 16 units
