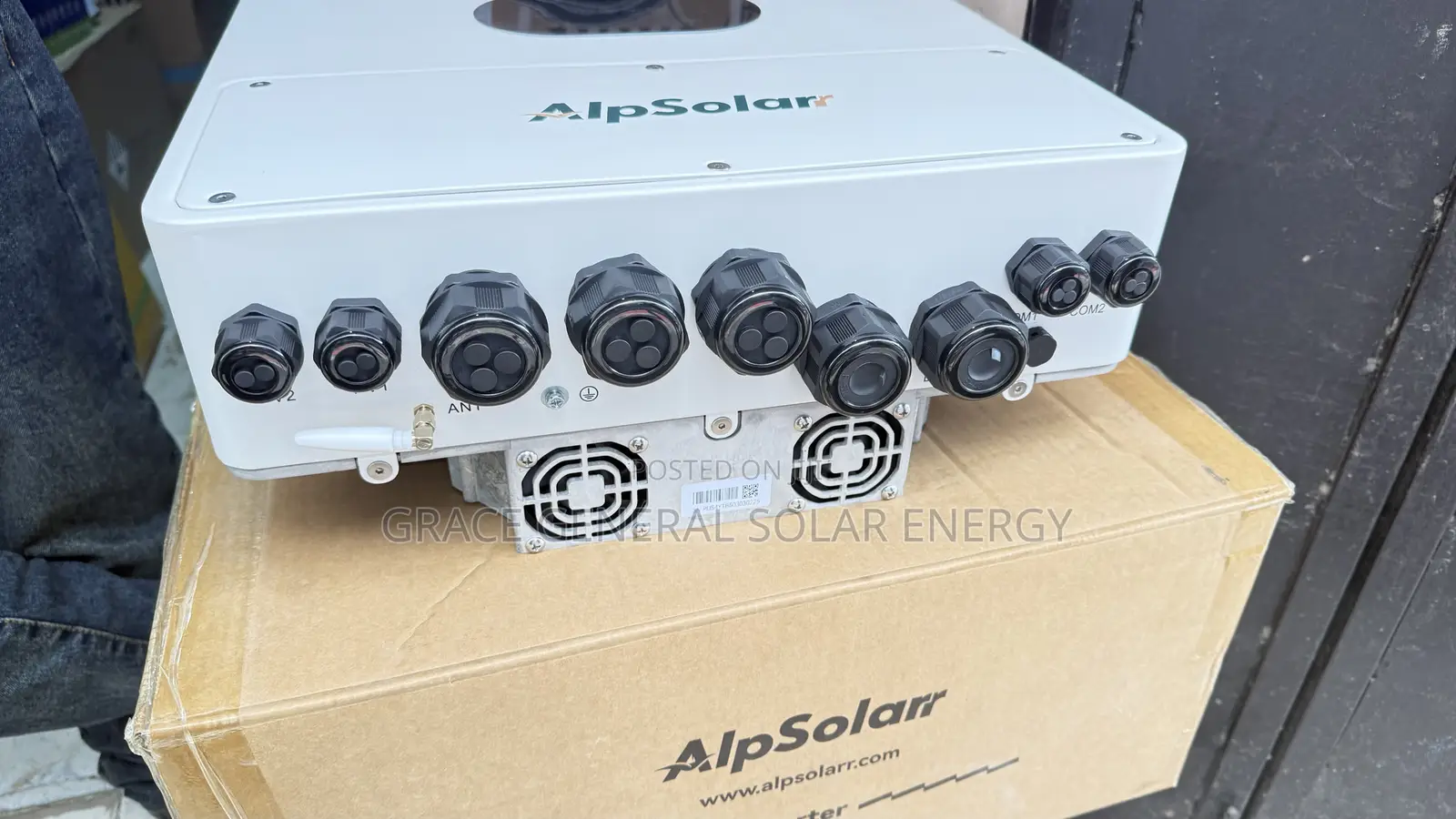

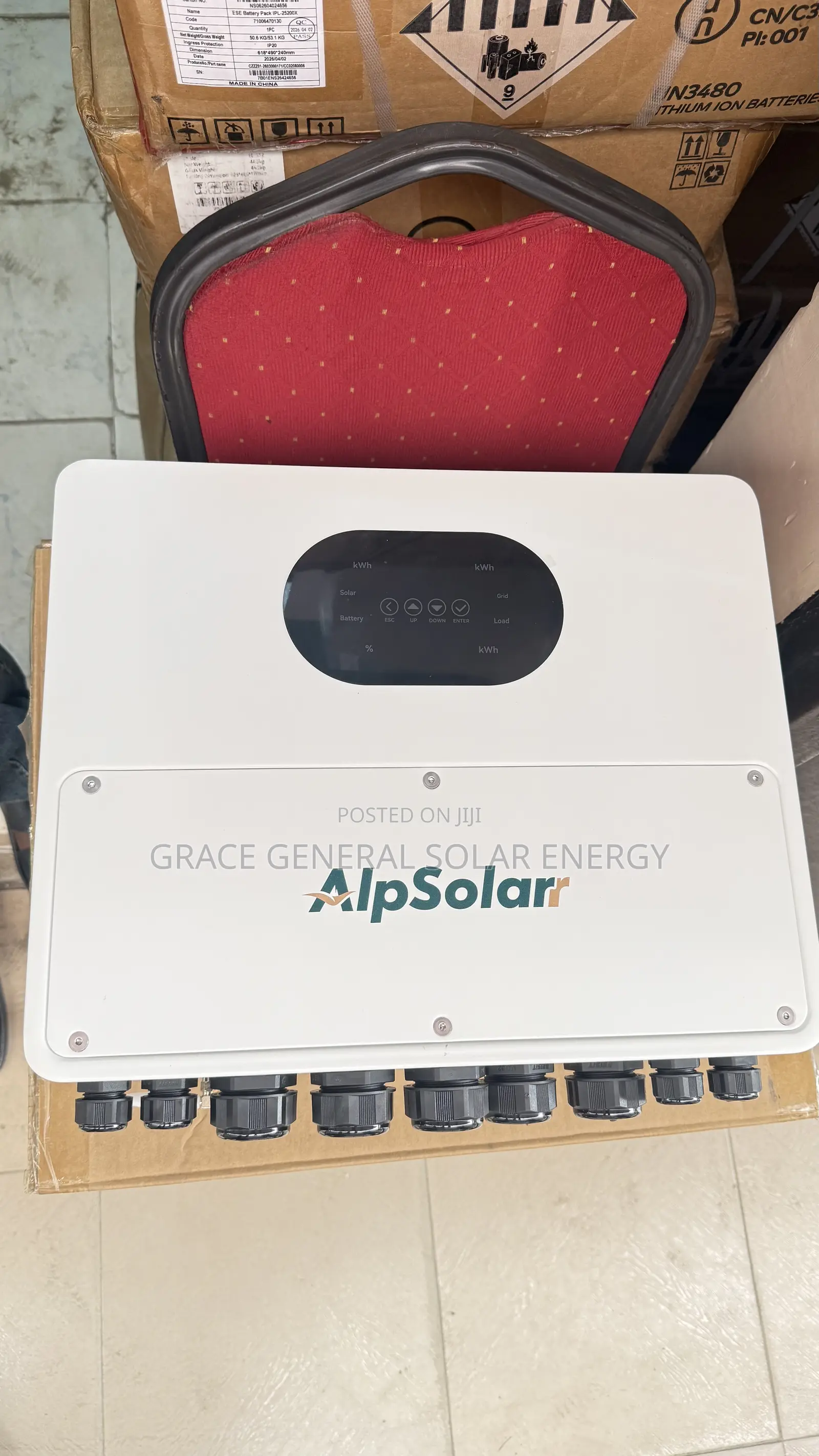

8kw Alpsolar Hybrid Inverter
Alpsolar
Brand
Inverters
Type
Hybrid Inverter
Inverter Type
50/60 Hz Auto
Frequency
Brand New
Condition
15000watts
Rated Power Output
18500watts
Peak Power
Store address
Verified
Verified
4
Lagos State • Ojo
[C27 century mall beside wema bank old one
Closed now
• Mon - Sat, 09:00-18:00

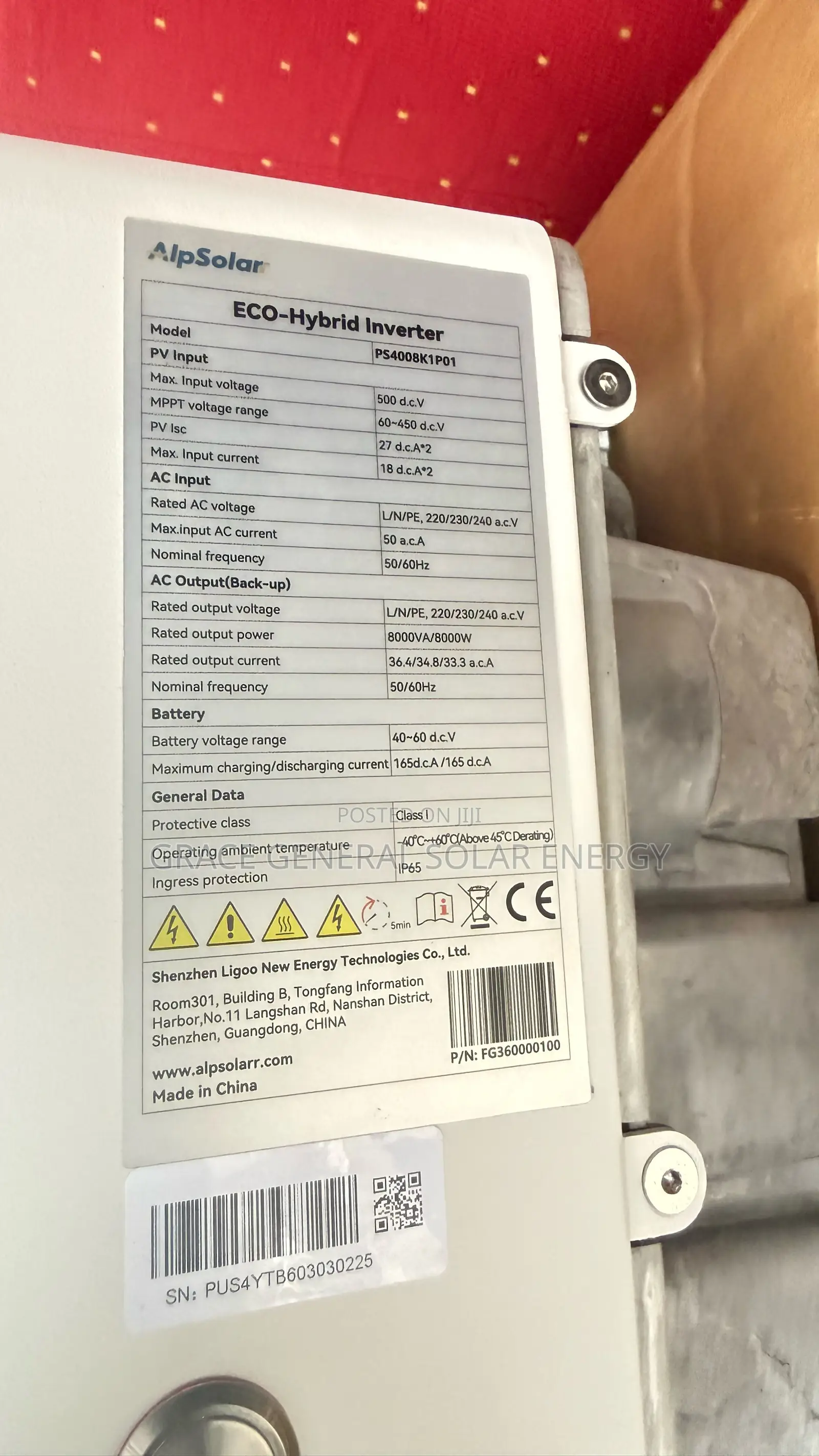

Here are the key specifications for the 8kw alpsolarr pulse s4 model:
battery & dc input
· battery type: compatible with lithium-ion & lead-acid .
· rated voltage: 48v dc .
· voltage range: 40v – 60v dc .
pv input (solar)
· max pv access power: 15,000w (18,500w for some variants) .
· max mppt input power: 12,000w – 15,000w .
· max input voltage: 500v dc .
· mppt voltage range: 60v – 450v dc .
· mppt trackers: 2 (strings: 1+1) .
ac output (load)
· rated output power: 8,000w / 8,000va .
· rated output current: 37a (or 35a depending on the source) .
· output frequency: 50/60 hz .
· peak efficiency: 97% .
· switch time: 10ms (computer load) / 20ms (home appliances) .
protection & general
· overload capacity: 100ms @ >200%; 5s @ 150-200%; 10s @ 110-150% .
· ingress protection: ip66 (highly water/dust resistant)
