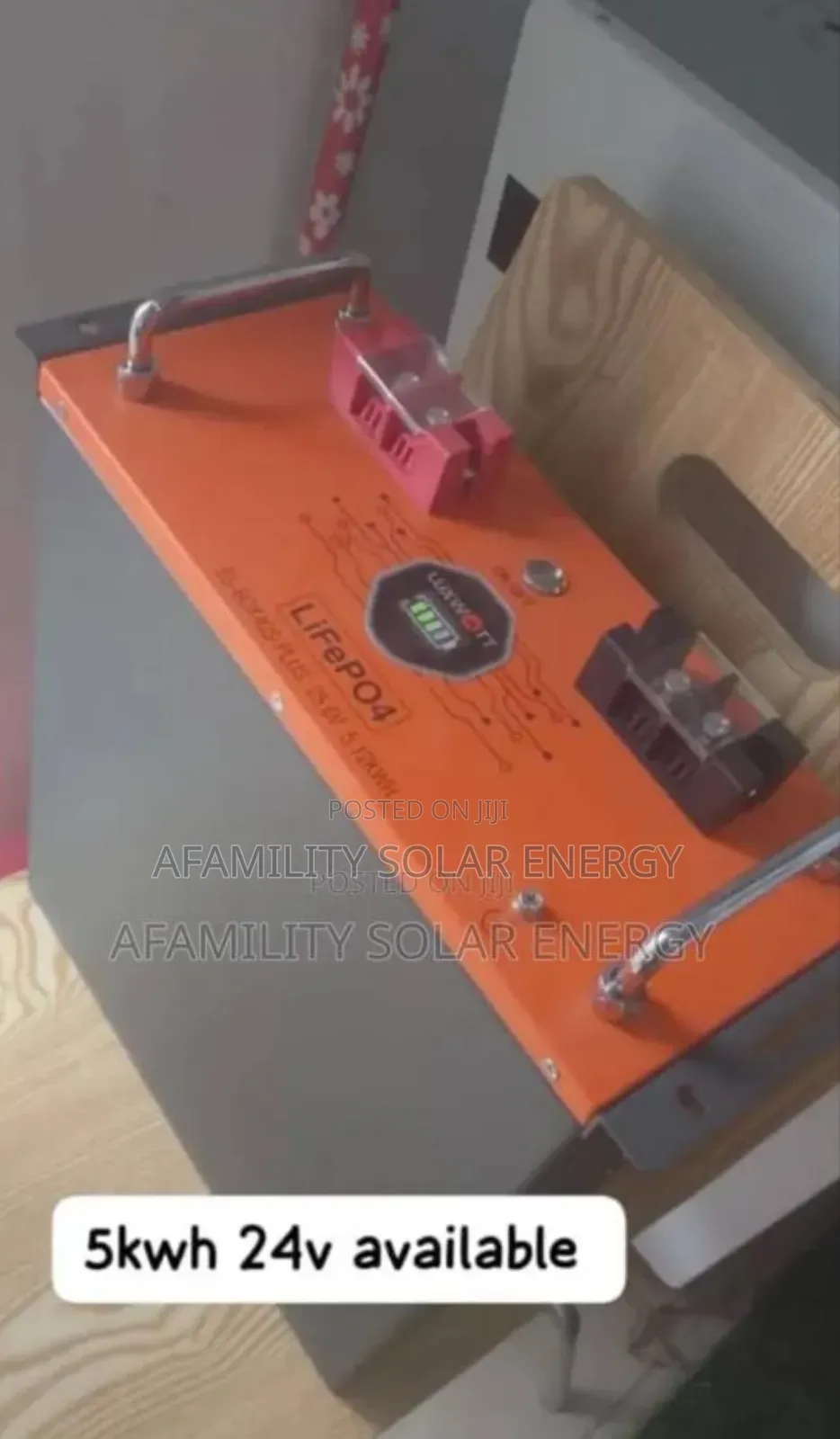

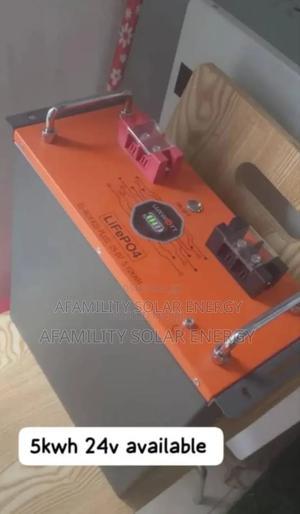

24V 5 kWh LiFePO4 batteries, which are likely close to what the LuxWatt unit has or should have:
Parameter Approximate Spec
Nominal Voltage ~ 24 V (often actual 25.6 V when fully charged)
Capacity (Ah) ~ 200 Ah (because 5 kWh ÷ ~25 V = ~200 Ah)
Charge Voltage (Float / Full‐charge) ~ 28.8 V
Discharge Cut‐off Voltage Typically ~ 20‐22 V (to avoid damaging cells)
Max Continuous Discharge Current Probably around 100 A or less (≈ 2.4 kW output)
Recommended Discharge Current Lower, maybe ~ 50‐80 A, for longer life and safe operation
Max Charge Current Similar order as discharge recommendation, maybe ~ 50‐80 A
Cycle Life ≥ 5,000‐6,000 cycles at ~80% DoD, in good temperature conditions
Operating Temp. Range Discharge: maybe from ~ ‐10 °C up to ~ 50‐60 °C; Charge somewhat narrower (0‐55 °C)
