30kva Deye High Voltage Inverter 3phase
Deye
Brand
Inverters
Type
Hybrid Inverter
Inverter Type
50/60 Hz Auto
Frequency
Brand New
Condition
30000watts
Rated Power Output
30000watts
Peak Power
Store address
Verified
Verified
4
Lagos State • Ojo
[C27 century mall beside wema bank old one
Closed now
• Mon - Sat, 09:00-18:00

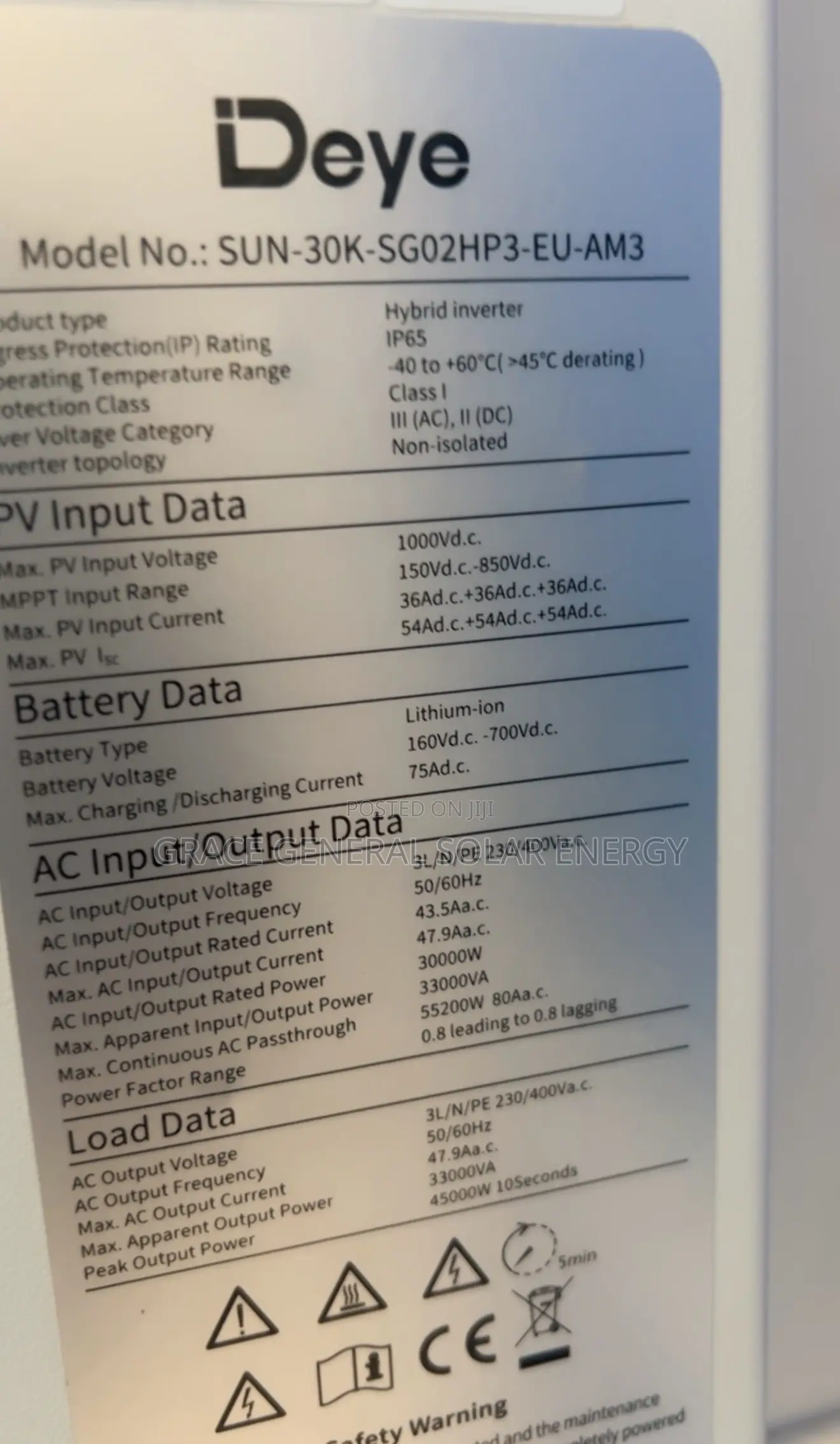

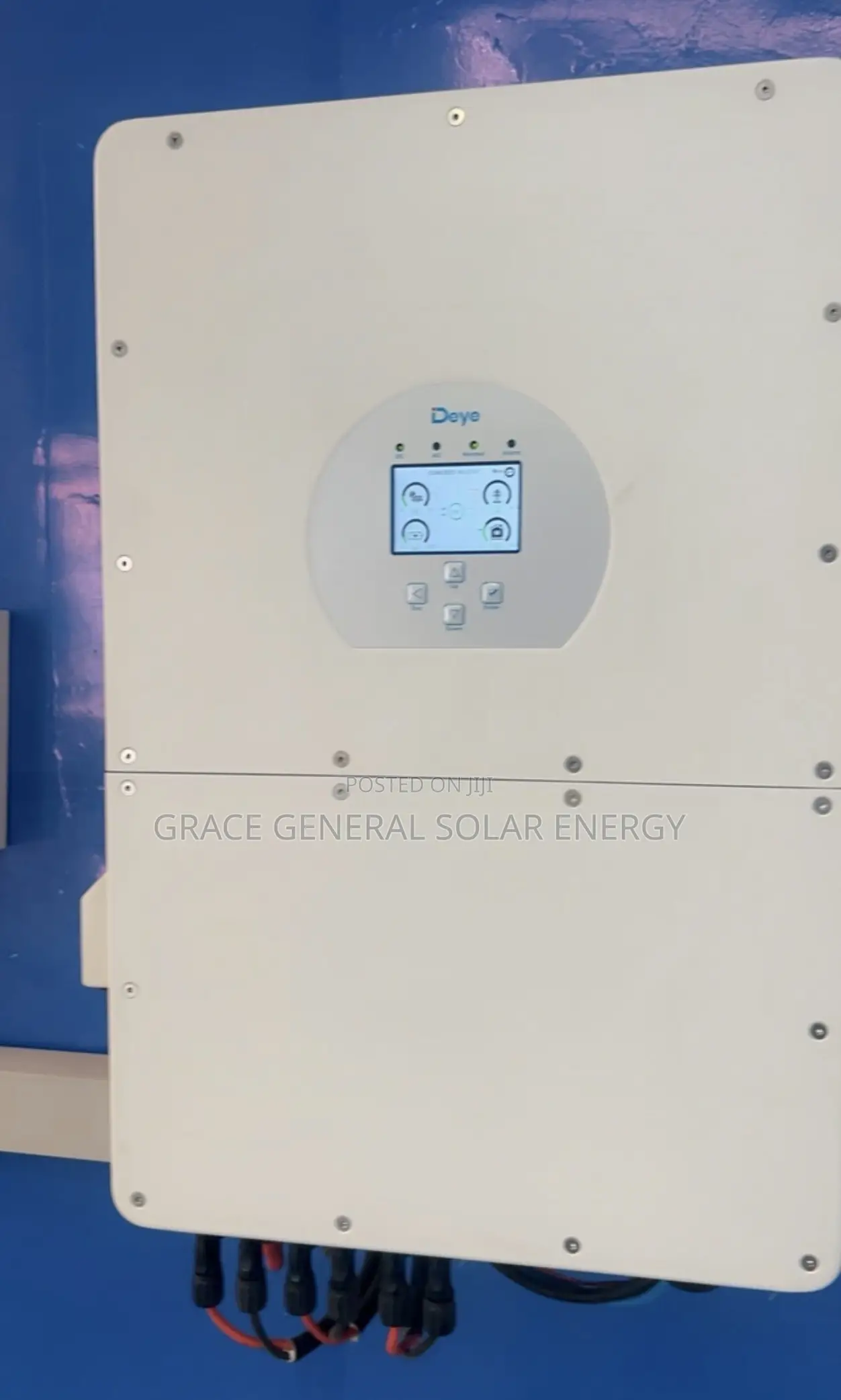

The Deye 30kW inverter (model SUN-30K-SG02HP3-EU-AM3) is a three-phase hybrid unit designed for commercial solar and energy storage systems.
Key Specifications
· Battery Input: Lithium-ion, 160–700V range,
· PV Input: 60,000W max access power, 1000V max voltage, 3 MPPT trackers (2+2+2 strings).
· AC Output: 30,000W rated active power, 33,000VA max apparent power, 220/380V or 230/400V (3L+N+PE).
· Efficiency: Max 98.5%, MPPT >99%.
· Protection: IP65 rating, Type II (DC/AC) surge protection, integrated AFCI (optional), anti-islanding.
Notable Features
· Scalability: Supports up to 10 units in parallel for both on-grid and off-grid operation, with multiple battery support.
· AC Coupling: Can retrofit existing solar systems and supports storing energy from a diesel generator.
· Unbalanced Output: Capable of 100%
. Warranty: 5years
