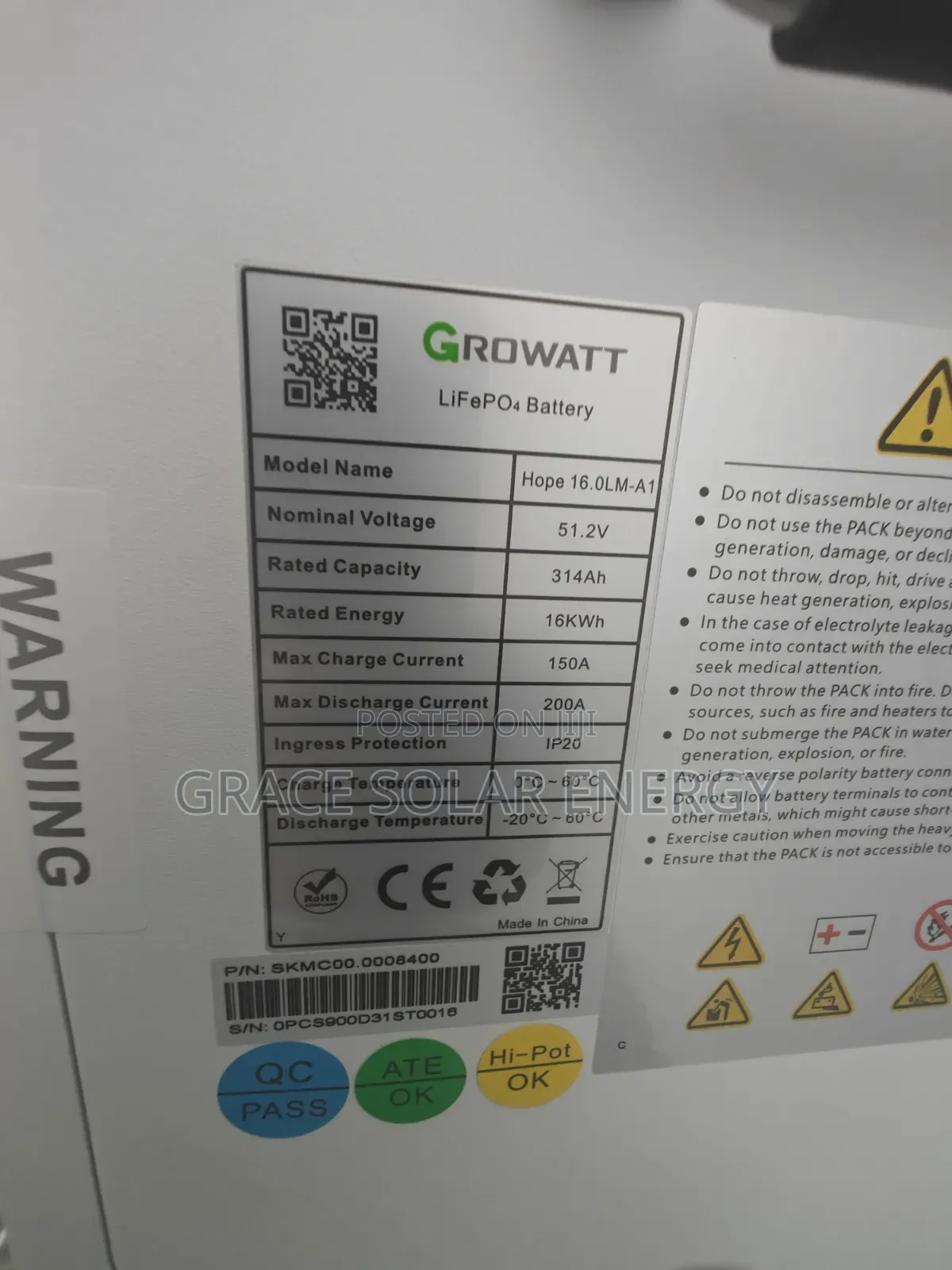

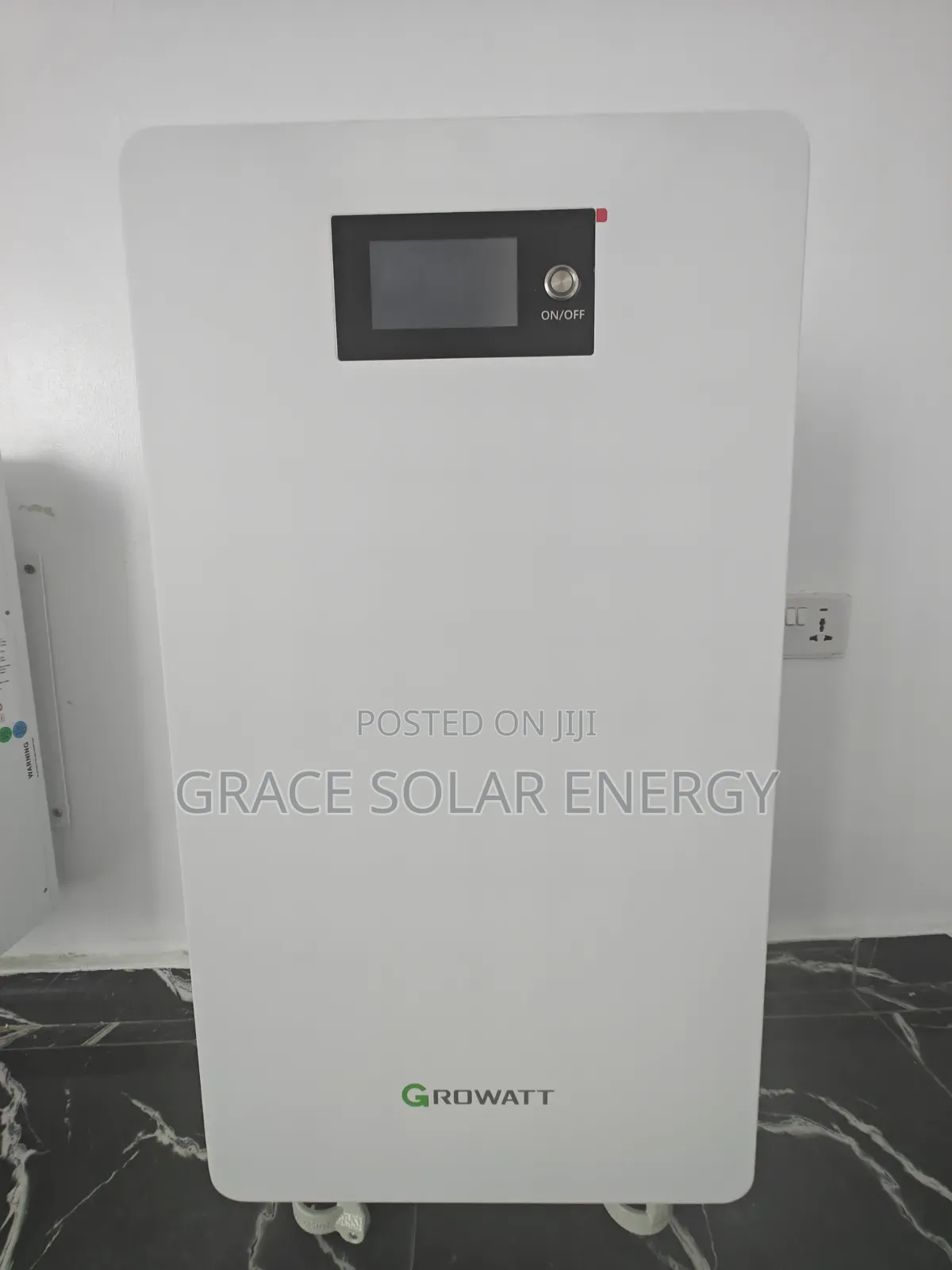

Growatt Hope 16.0LM-A1 LiFePO4 battery:
· Model Name: Hope 16.0LM-A1
· Battery Type: LiFePO4 (Lithium Iron Phosphate)
· Rated Energy: 16kWh (16,000Wh)
· Rated Capacity: 314Ah
· Nominal Voltage: 51.2V
· Charge Temperature: 0°C to 60°C
· Discharge Temperature: -20°C to 60°C
· Capacity & Voltage: 16 kWh nominal, ~15.3 kWh usable. Nominal voltage is 51.2V, with a 40–58.4V operating range.
· Performance: Max charge current 150A, discharge current 200A (the A2 version has 150A for both). Offers over 6000 cycles at 80-95% DoD.
· Physical & Environment: Weighs ~120 kg; dimensions 440 x 894 x 265 mm (W/H/D). Rated IP20 (indoor use only).
· Installation: Floor-standing. Supports parallel connection of up to 48 units for a max 768 kWh capacity.
· Other: Features CAN/RS485 communication and usually comes with a 10-year warranty.
