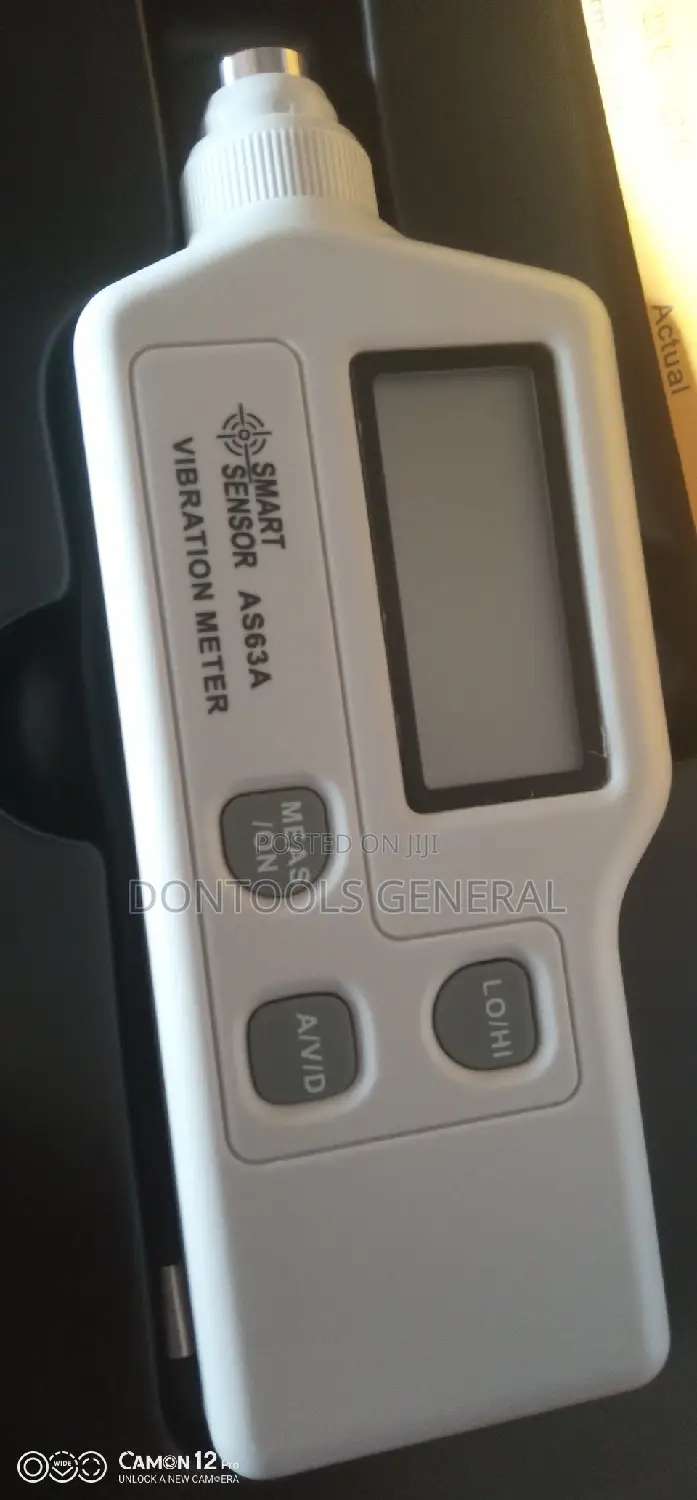

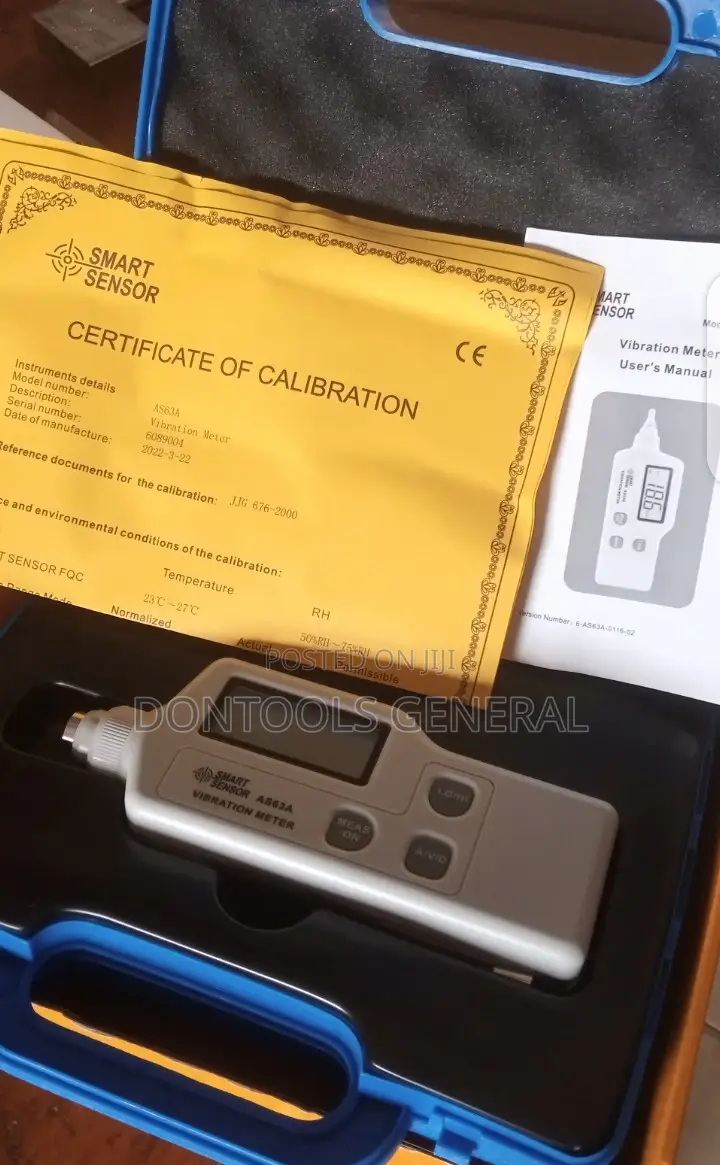

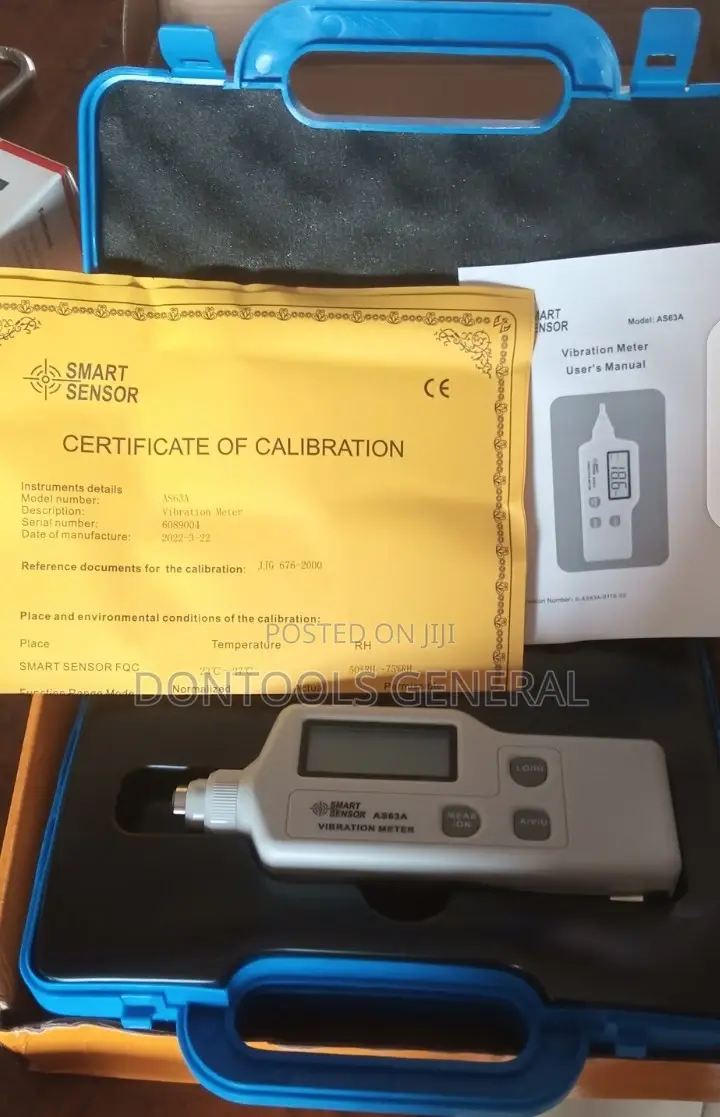

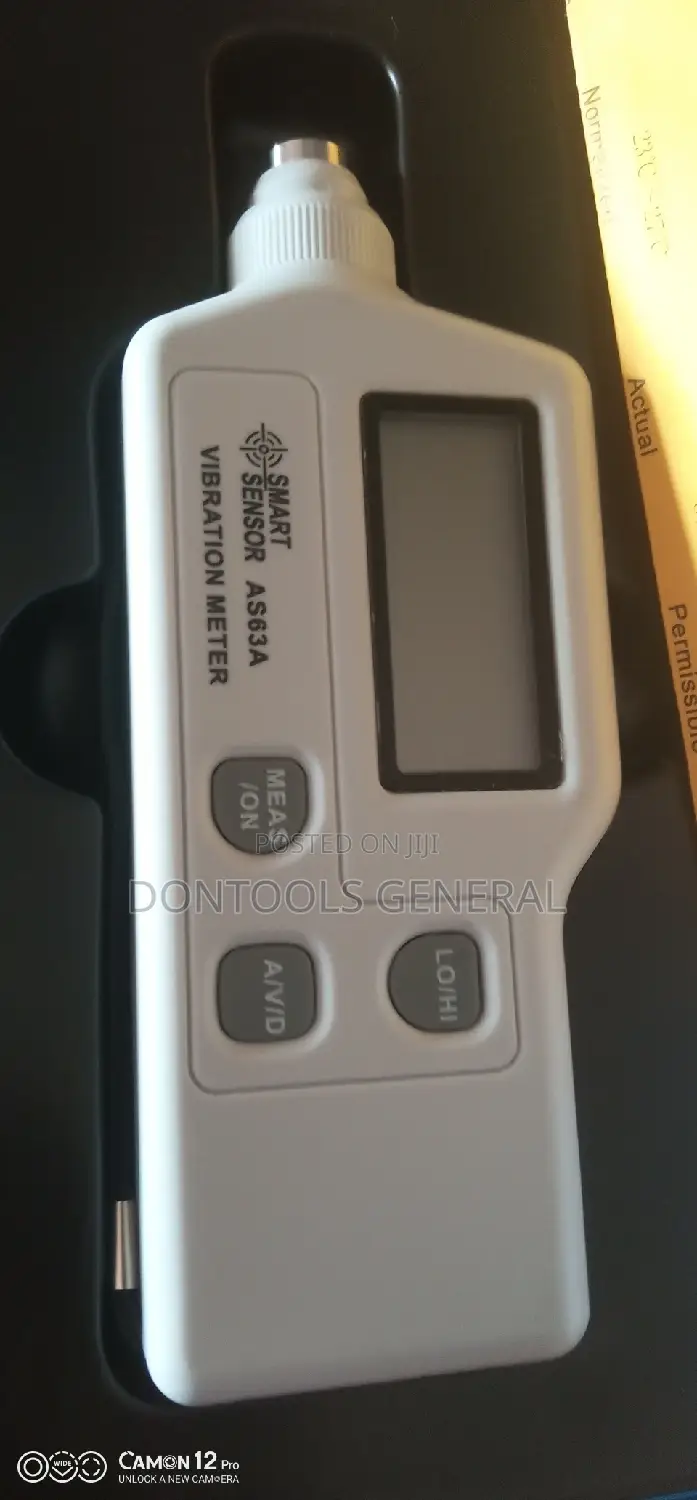

Smart Sensor As63a Digital Vibration Meter Analyzer Handheld

+1

Brand New

Condition

Other

Type

Store address

4

+1

images

Lagos State • Ojo

Progress Plaza No 14 Tools and Hardware Center Lagos Trade Fair Complex Badagrey Express Way

Closed

• Mon - Sat, 09:00-18:00

Description Features: 1. Equipped with AC signal output interface 2. Low power indication function and auto power-off function 3. LCD backlight for easy reading Condition: 100% Brand New Technical specification Vibration pickup Piezoelectric ceramic accelerometer (shear-type) Measurement range of acceleration: 0.1-199.9m/s2 peak Measurement range of velocity: 0.1-199.9mm/s rms Measurement range of displacement: 0.001-1.999mm p-p (Velocity and displacement range is limited by acceleration199.9m/s2) Measurement accuracy: ±10%+2digits Measurement frequency range of acceleration: 10Hz-1KHz (LO) 1KHz-15KHz (HI) Measurement frequency range of velocity: 10Hz-1KHz (LO) Measurement frequency range of displacement: 10Hz-1KHz (LO) Displays update cycle: 1 seconds LCD display: 3 1/2 digits display Single output: AC output 2 V peak
