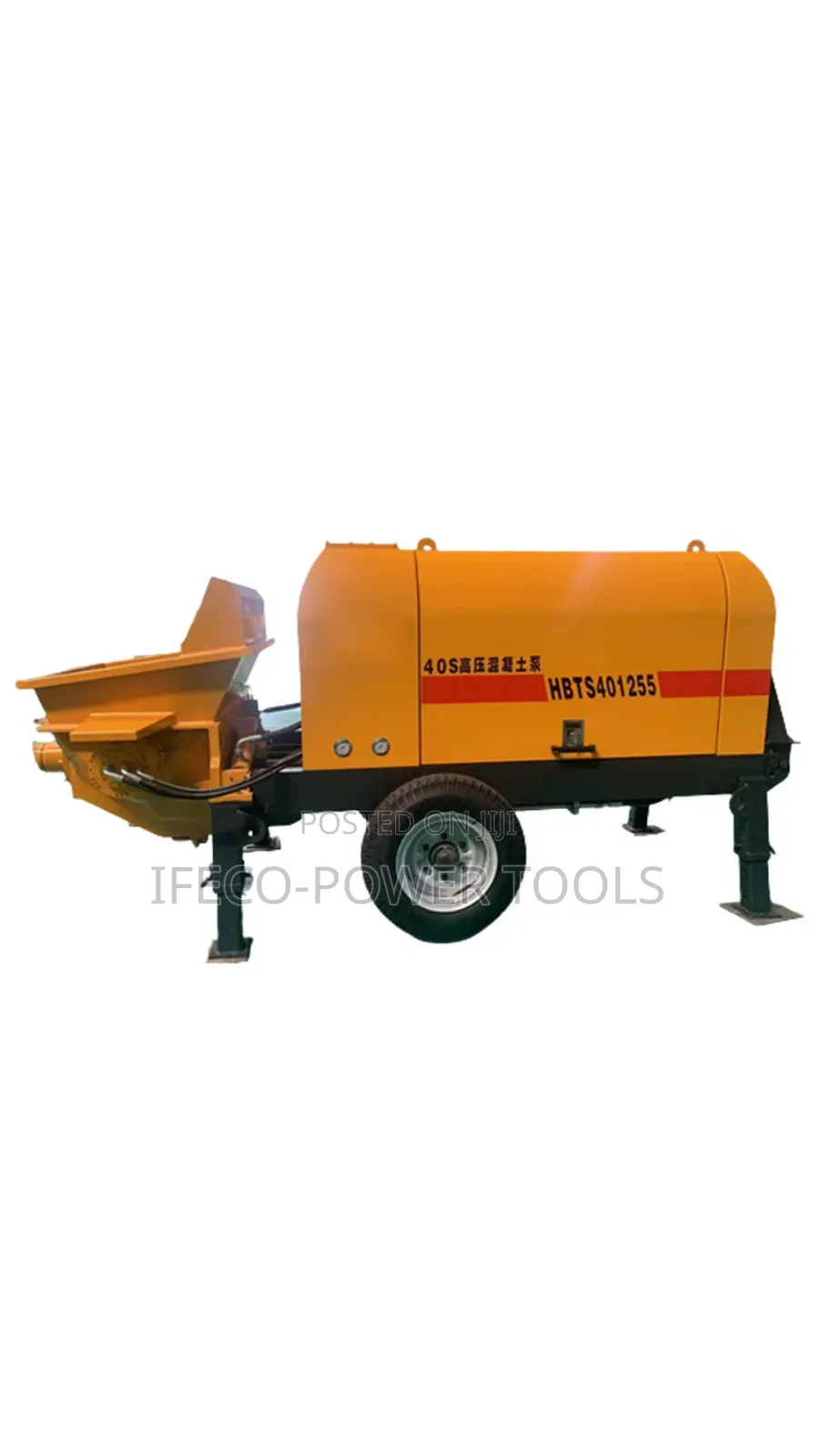

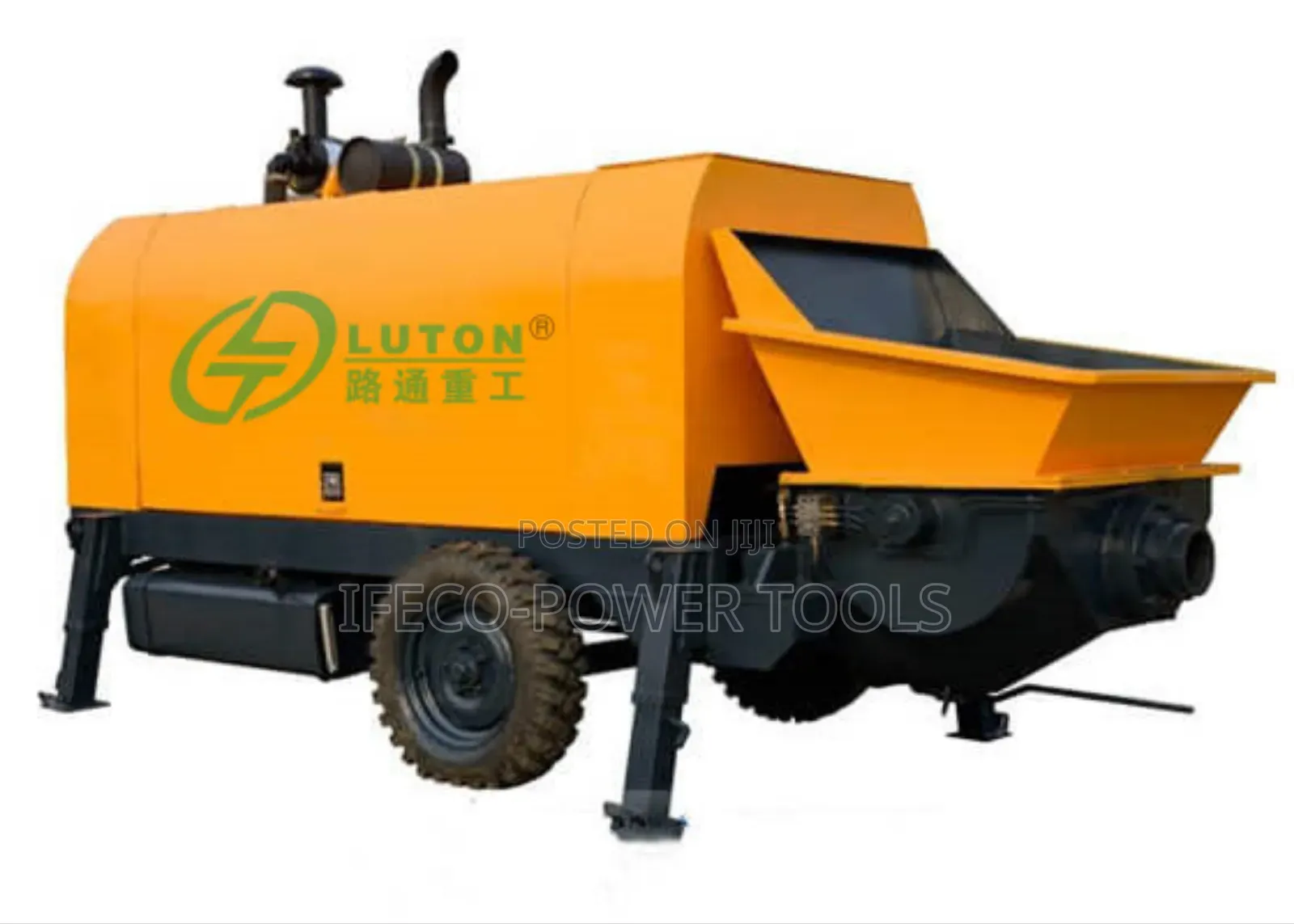

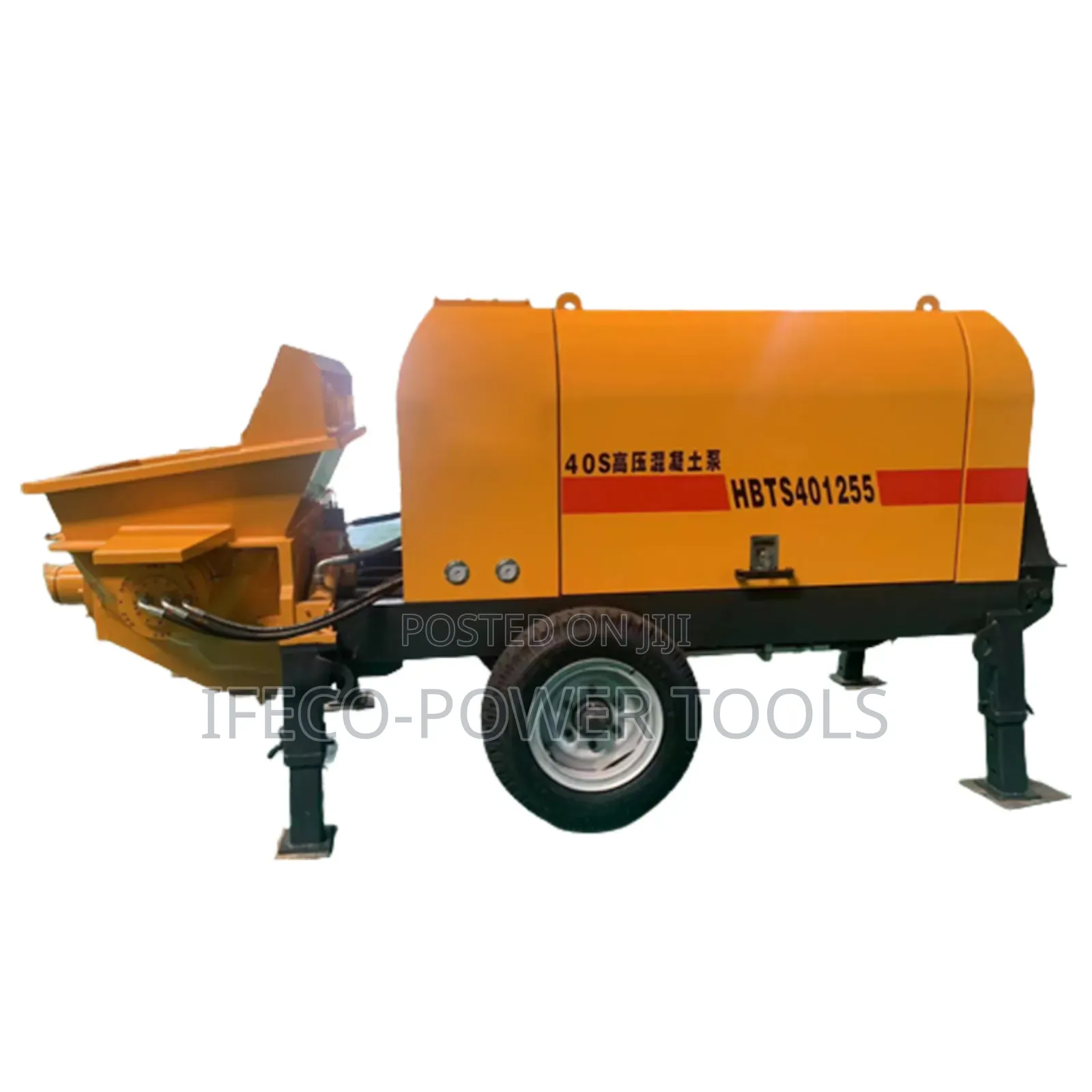

Concrete Pump 40cbm/Hr
Other
Type
Other
Make
565
Model
Brand New
Condition
2025
Year of Manufacture
Store address
Verified
Lagos State • Surulere
F 13A Alaba international market Ojo Lagos Nigeria
Closed now
• Mon - Sat, 08:00-18:00
A 40cbm/hr (40 cubic meters per hour) concrete pump is a medium-capacity machine commonly used for residential, commercial, and infrastructure construction projects. It is frequently designed as a combined concrete mixer and pump (trailer-mounted), which enables on-site mixing and pumping in a single, mobile unit.
Key Technical Specifications (Typical)
Based on common JBS40/HBT40 models:
Maximum Theoretical Output: 40 m3/h
Concrete Pumping Pressure: 8–13 MPa
Max Conveying Distance: Vertical 70–120m / Horizontal 300–500m
Maximum Aggregate Size: Up to 40mm (gravel) or 20-30mm
Power Source: Diesel engine (e.g., DEUTZ, Weichai, 66kW-85kW) or Electric motor
Structure: S-valve hydraulic system
Weight: Approx. 4,000–6,000 kg
Mixer Capacity: 0.56m3 (feeding), 0.45m3 (discharge)
