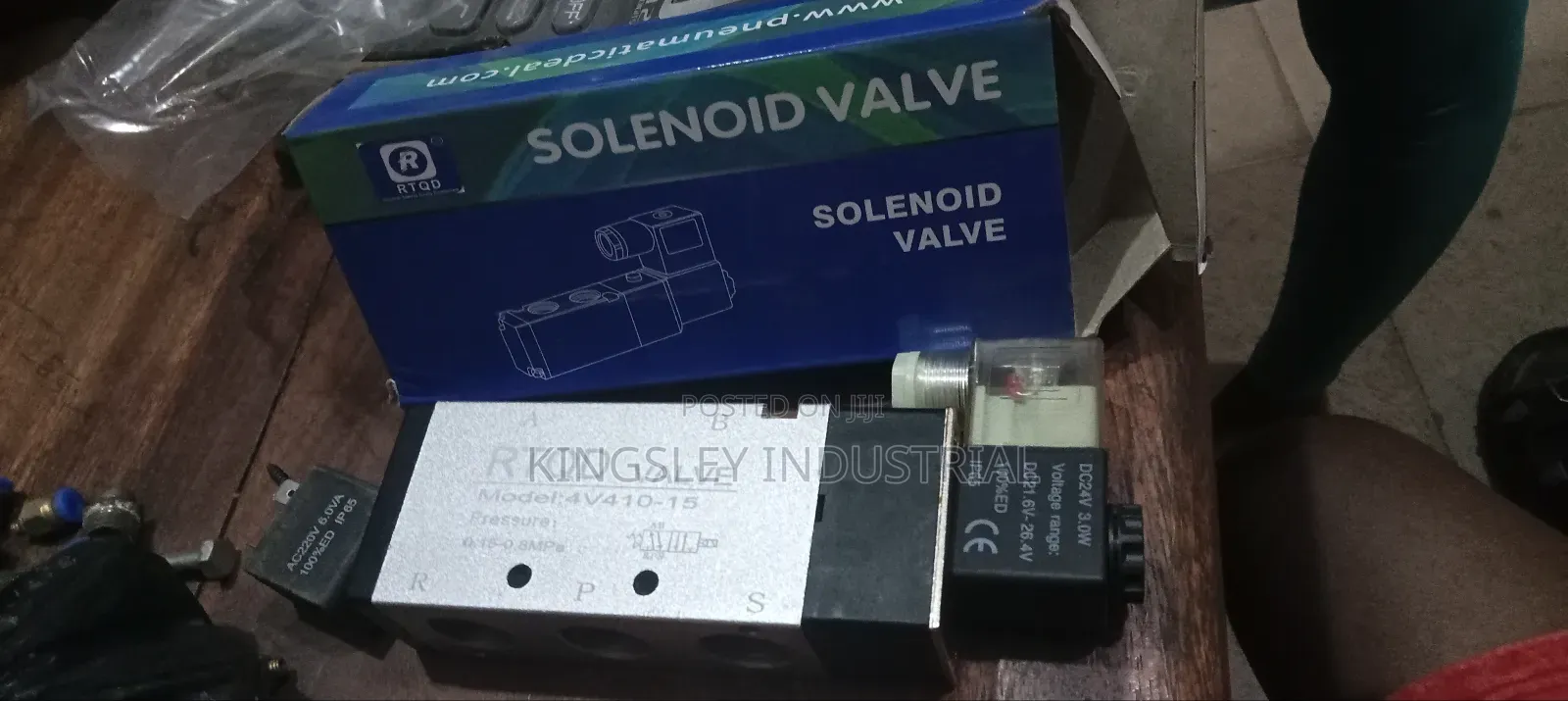

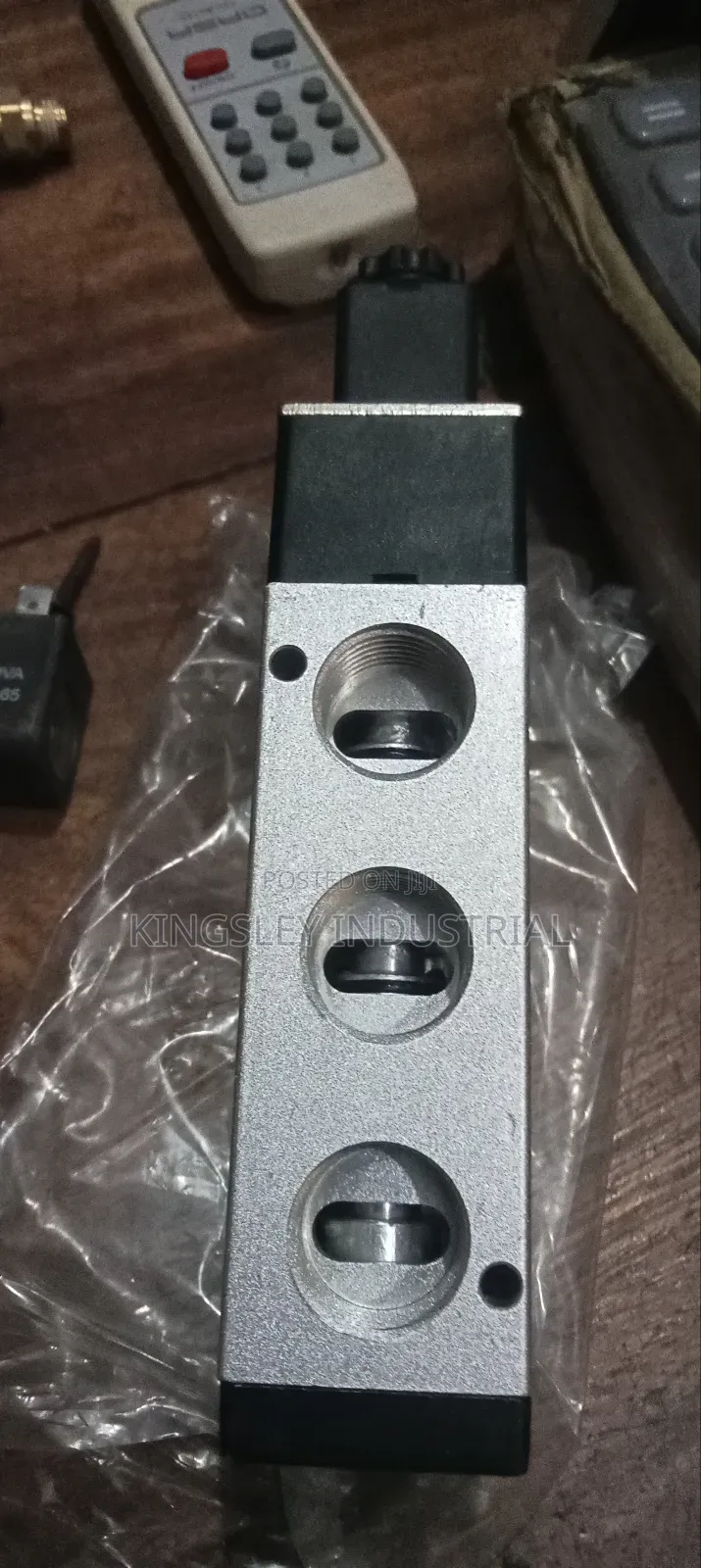

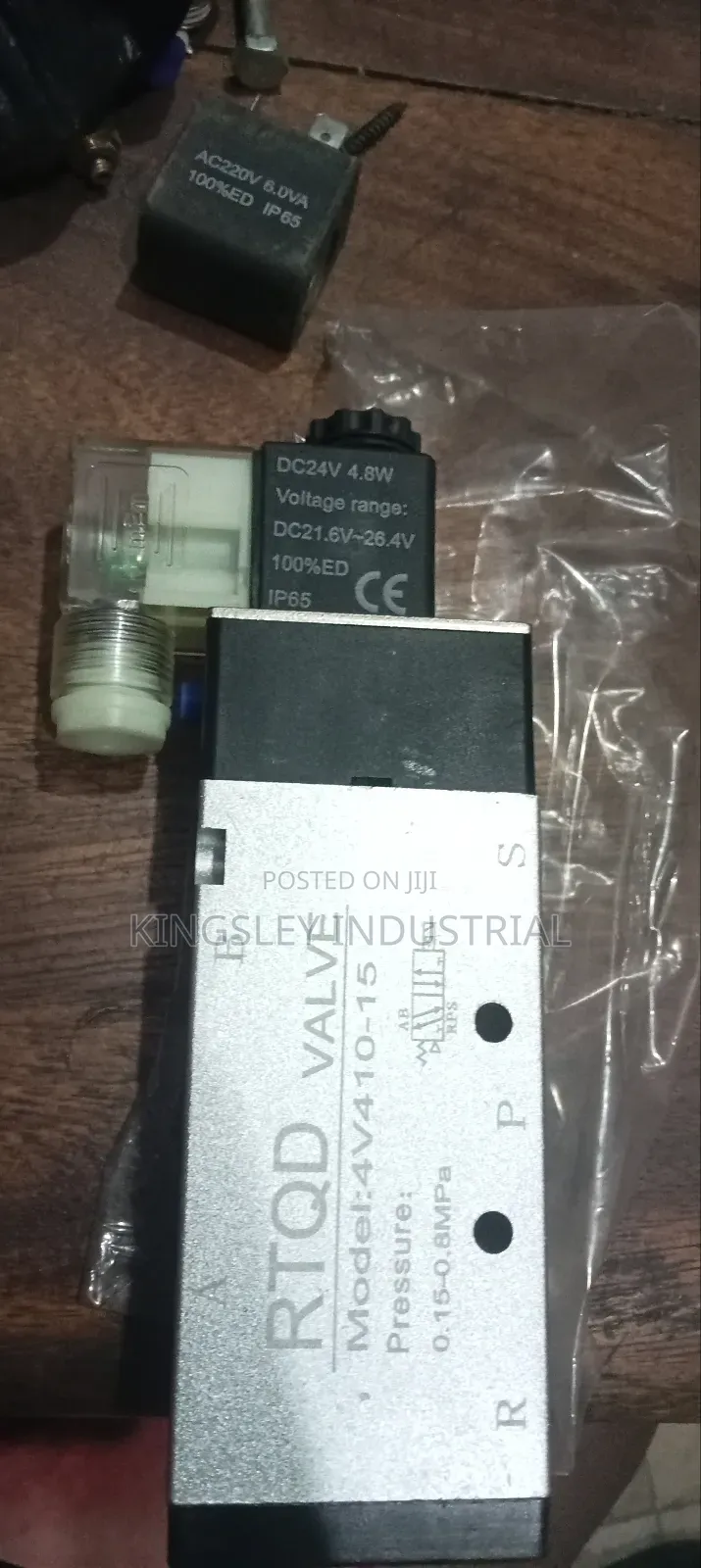

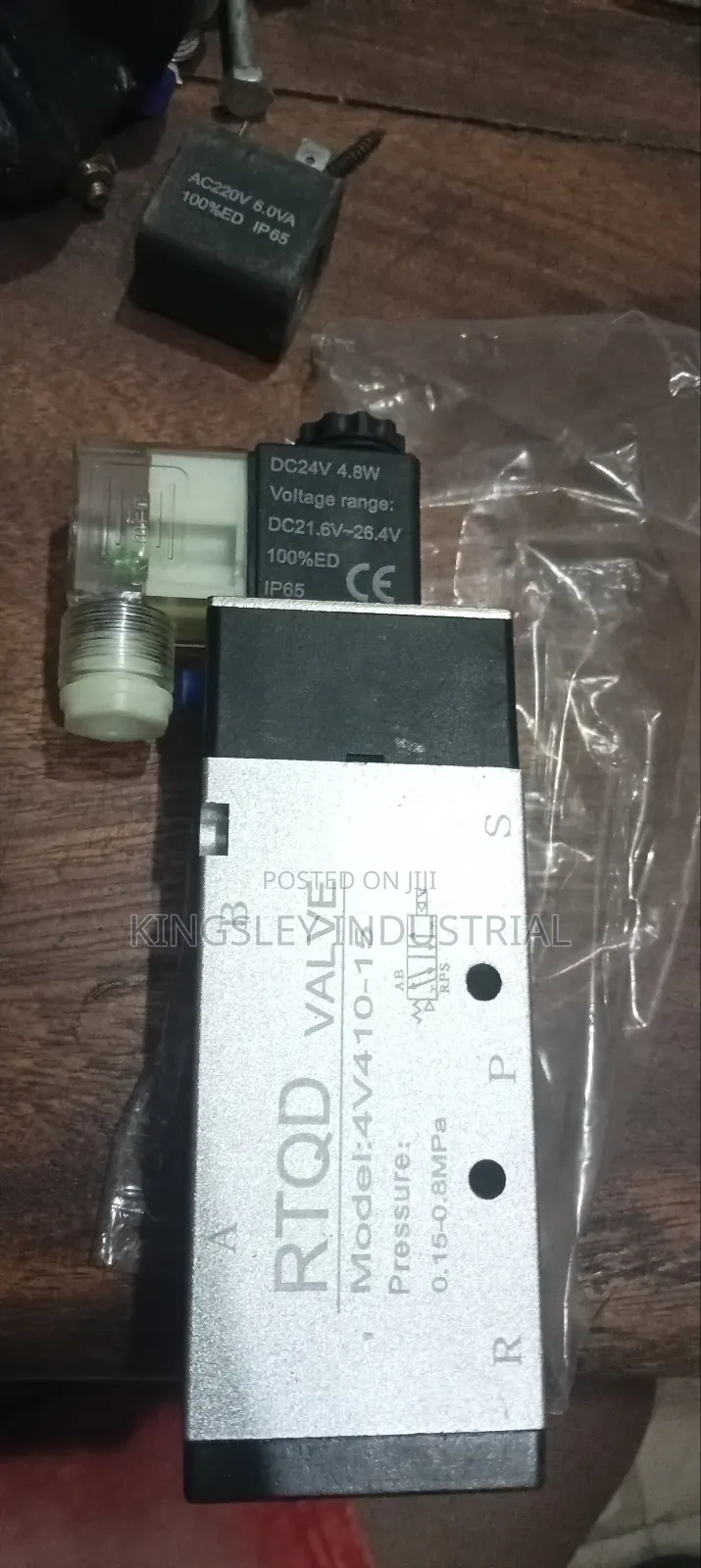

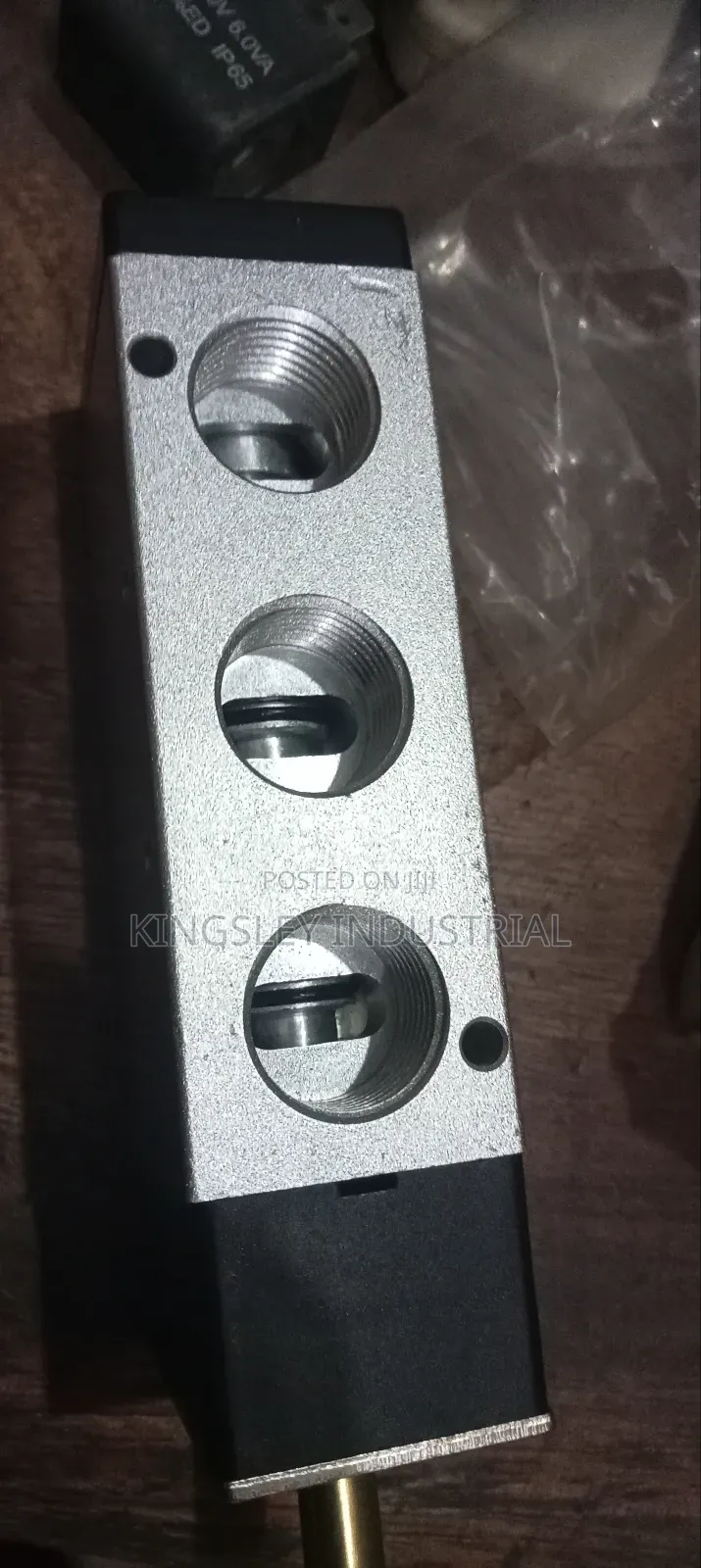

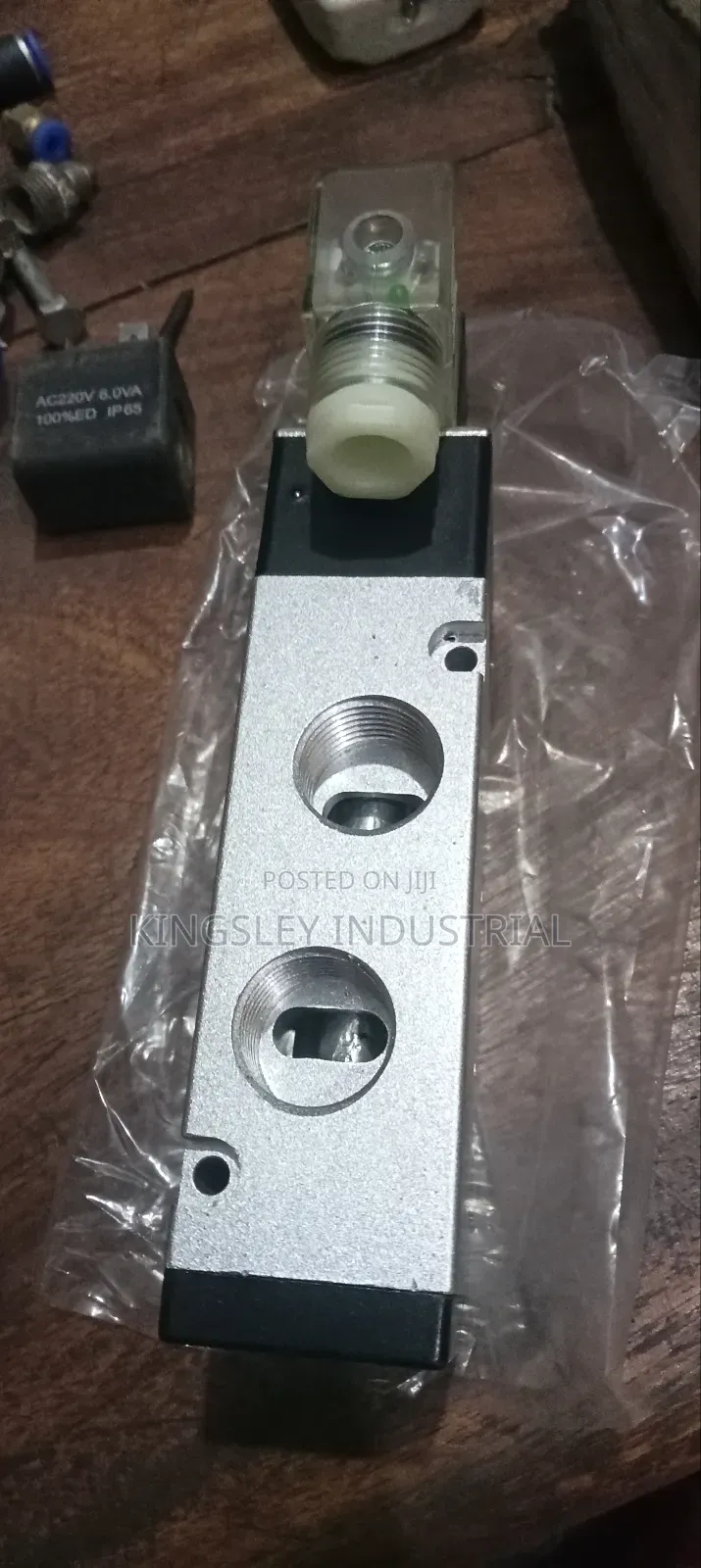

The component shown is a RTQD 4V410-15 Pneumatic Solenoid Valve. It is used to control the direction or flow of compressed air in pneumatic systems. Key features and specifications include:
Model: 4V410-15
Pressure: 0.15-0.8 MPa (21-114 PSI)
Voltage: Typically DC24V, but can vary (e.g., AC110V, AC220V)
Port Size: PT1/2"
Type: 5-way, 2-position
Function: Controls air flow to actuators like cylinders
Features:
Sliding column structure for good sealing and response
Can be integrated with a base for space-saving
Manual override for easy installation and testing
