High-quality
with 60 cells and 3 bypass diodes in power classes from 280 to 315 wp for grid connected systems.
Reliable
the high quality level of era solar guarantees long life-time and high earnings.
Solid
an aluminium hollow-chamber frame on each side combined with low-iron and tempered solar glass ensures high load capacity resistance.
Performance guarantee
era solar grants a power guarantee of 90% of nominal power output up to 10 years and 80% up to 25 years.

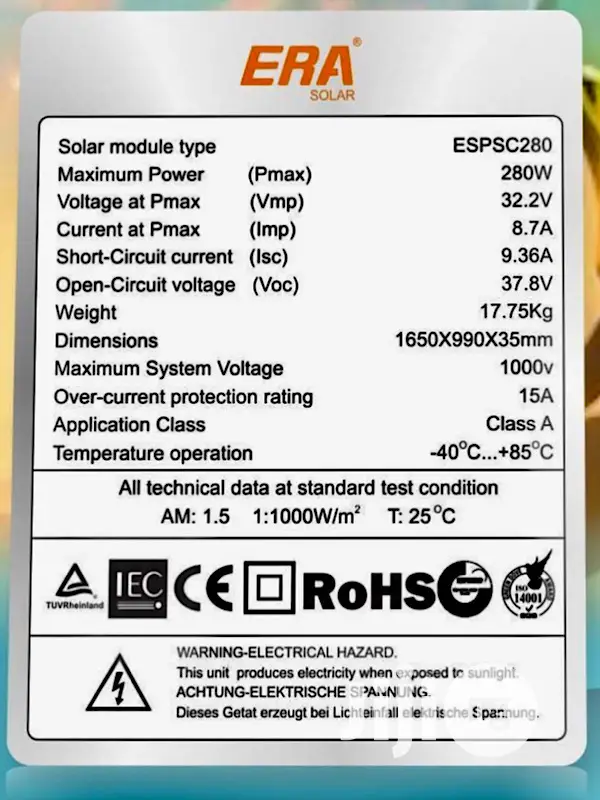

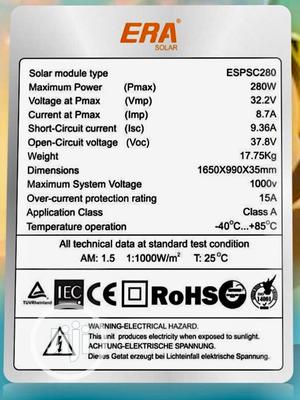

Specifications
power class 280w bis 315w
module effiency 17.2% bis 19.2%
dimensions 1640 x 992 x 35 mm
dimensions 1650 x 990 x 35 mm
weight 17.75 kg
frame aluminium hollowchamber
frame on each side
glass low-iron and tempered
glass 3.2 mm
cells 60 pcs monocrystalline
si-cells (156 x 156 mm)
cell embedding eva
back-foil tpt / tpe / bbf
junction box tuv certified
