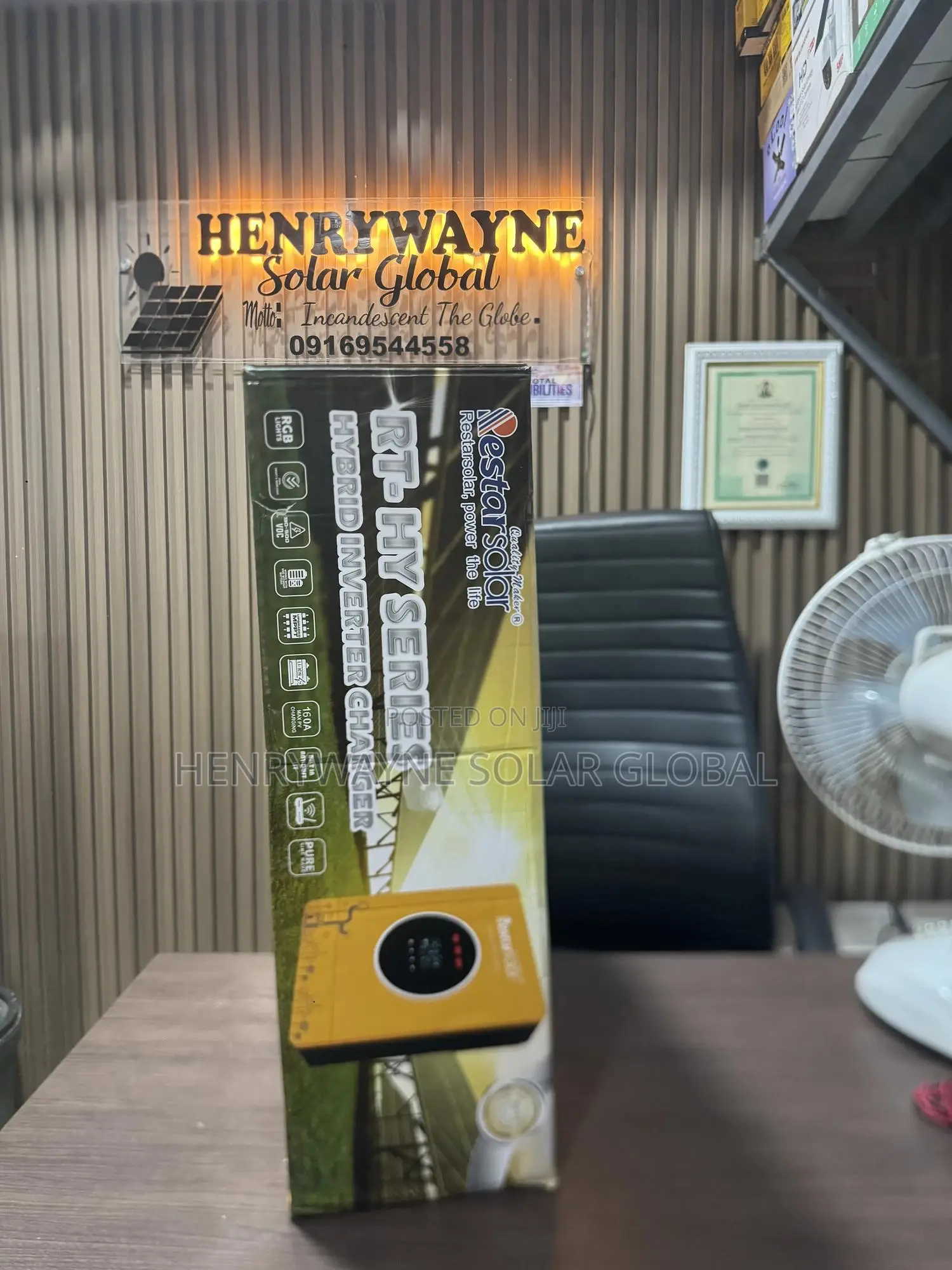

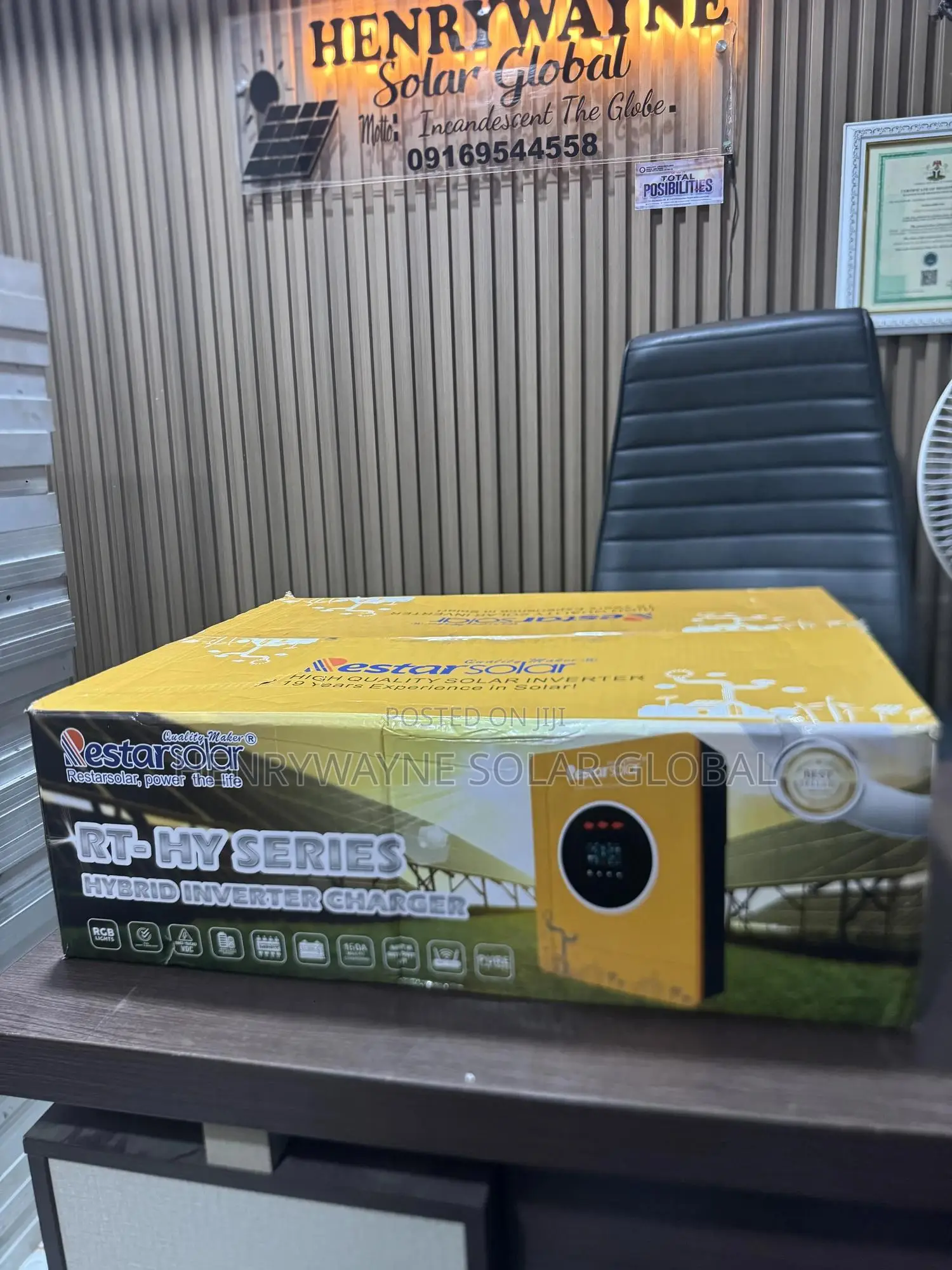

10.2kva 48v hybrid inverter,product of restar with

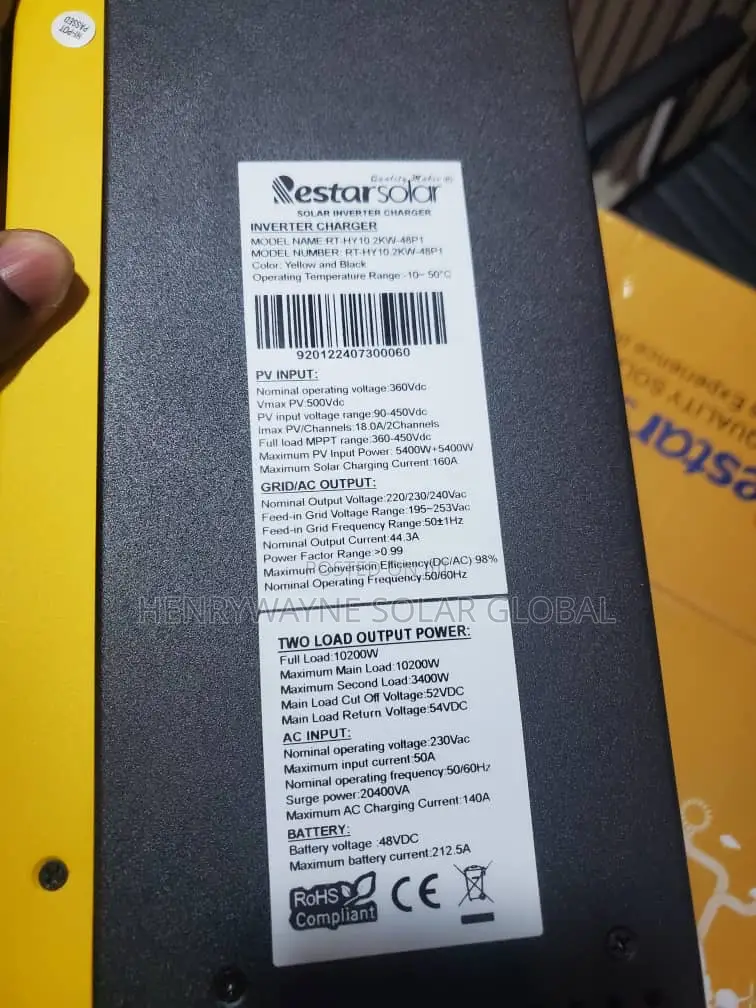

pv input:
nominal operating voltage 360vdc
vmax pv 500vde
pv input voltage range 90-450vdc
imax pv/channels 18,0a/2channels
full load mppt range 360.450vdc
maximum pv input power 5400w+5400w
maximum solar charging current 160a
two load output power:
full load 10200w
maximum main load: 10200w
maximum second load: 3400w
main load cut off voltage 52vdc
main load return voltage:54vdc
ac input:
nominal operating voltage 230vac
maximum input current 50a
nominal operating frequency 50/60hz
surge power 20400va
maximum ac charging current 140a
