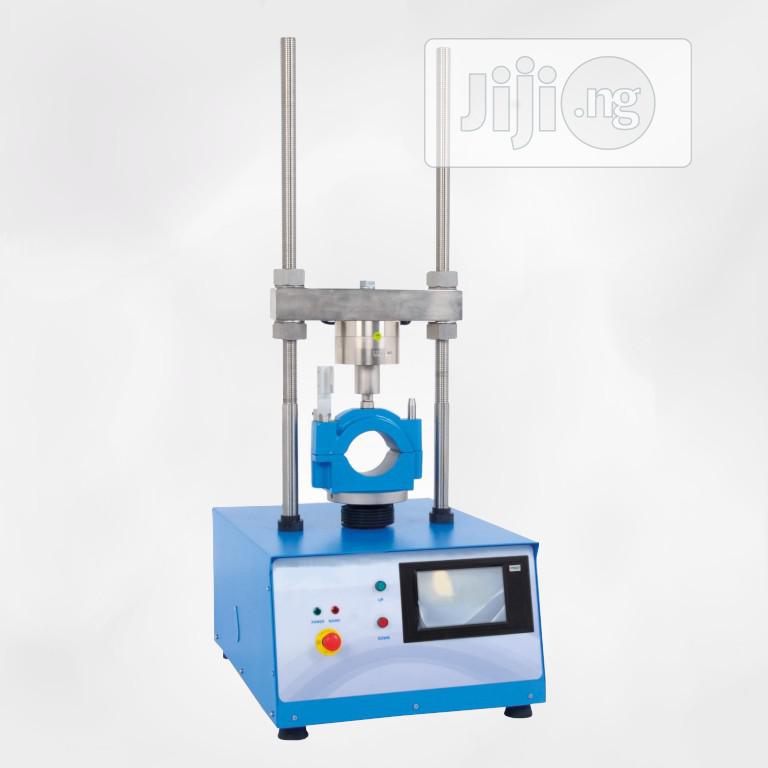

Marshall Stability Test Apparatus

+1

Store address

Lagos State • Amuwo-Odofin

23 Prudence Plaza Tools & Hardware Center Ojo Trade fair Complex Badagry Exp way Lagos

From Lagos island or ikeja get to mile 2, from mile 2 get to trade fair Complex Badagry Exp way Lago

Open

• Mon - Sat, 09:00-18:00

4

+1

images

Lagos State • Surulere

Shop12 Justice plaza tools and hardwares trade fare international market

Open

• Mon - Sat, 09:00-17:00

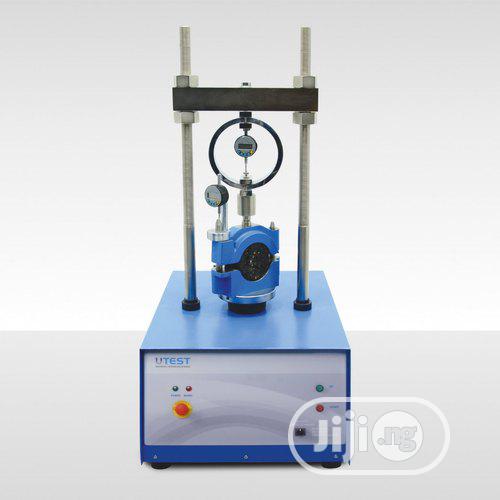

The UTAS-1052 50 kN capacity Marshall Stability Test Machine with Proving Ring is used to determine the maximum load and flow values of bituminous mixtures. The UTAS-1052 comprises a robust and compact two column frame with adjustable upper cross beam. The unit is a bench mounted compression frame with motor and worm gear housed within the base unit. The mechanical jack raises the lower platen at a constant speed of 50.8 mm/min as required in the relevant standard. For safety, the up and down travel of the lower platen movement is limited by limit switches. Rapid adjustment of the platen is also provided using the control buttons on the front panel of the machine. The measuring system consists of a 50 kN capacity load ring, digital flow meter (dial gauge) fitted to the breaking head. The UTAS-1052 Marshall Stability Machine is also suitable for testing 6” dia. specimens (152.4 mm) conforming to ASTM D5581.
