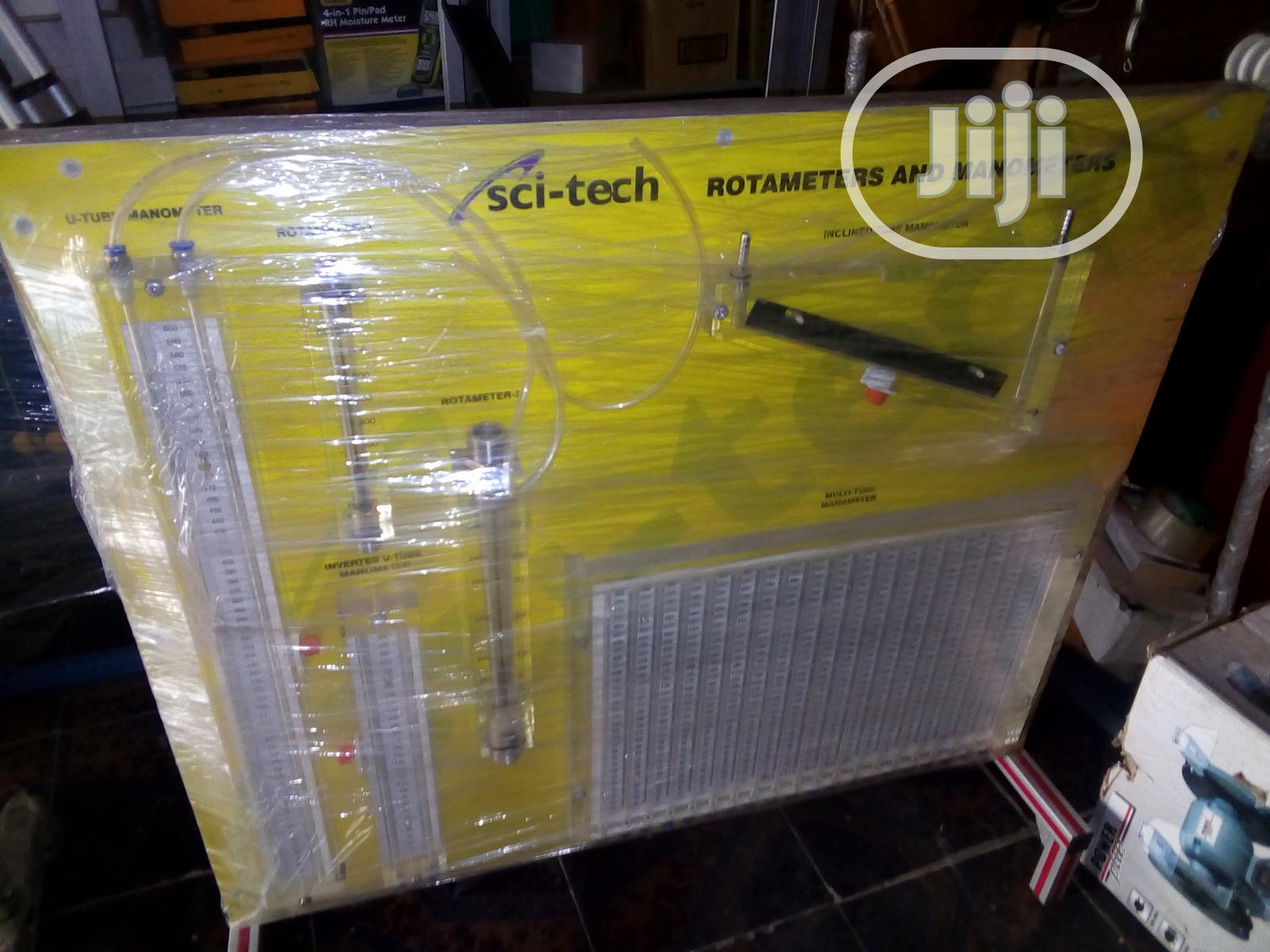

Flow Meter Demonstration Apparatus
Store address
Lagos State • Amuwo-Odofin
23 Prudence Plaza Tools & Hardware Center Ojo Trade fair Complex Badagry Exp way Lagos
From Lagos island or ikeja get to mile 2, from mile 2 get to trade fair Complex Badagry Exp way Lago
Open now
• Mon - Sat, 09:00-18:00
4
Lagos State • Surulere
Shop12 Justice plaza tools and hardwares trade fare international market
Open now
• Mon - Sat, 09:00-17:00
Various devices are available to measure the fluid flow rate. Majority of these devices use the Bernoulli’s theorem which states that the sum of pressure head, velocity head and the potential head is constant along a stream line for a steady, in viscid and incompressible flow of fluid. Measurement of fluid flow rate is important to the students of mechanical, chemical, civil and several other branches of engineering. The apparatus consists of a piping net work with flow meters located suitably and instrumented with static pressure taps. Provision is made to calibrate and determine the co-efficient of discharge of venture meter and orifice plate. The turbine flow meter is used as a reference. The flow meters are calibrated by static pressure measurements using manometers and actual flow measurements using graduated measuring tank of the hydraulic bench. Wall pressure tapings are provided along the converging and diverging portions of the venture-meter to measure the static
