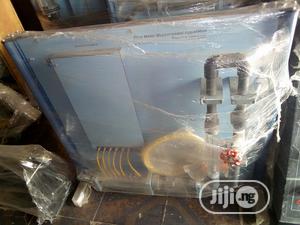

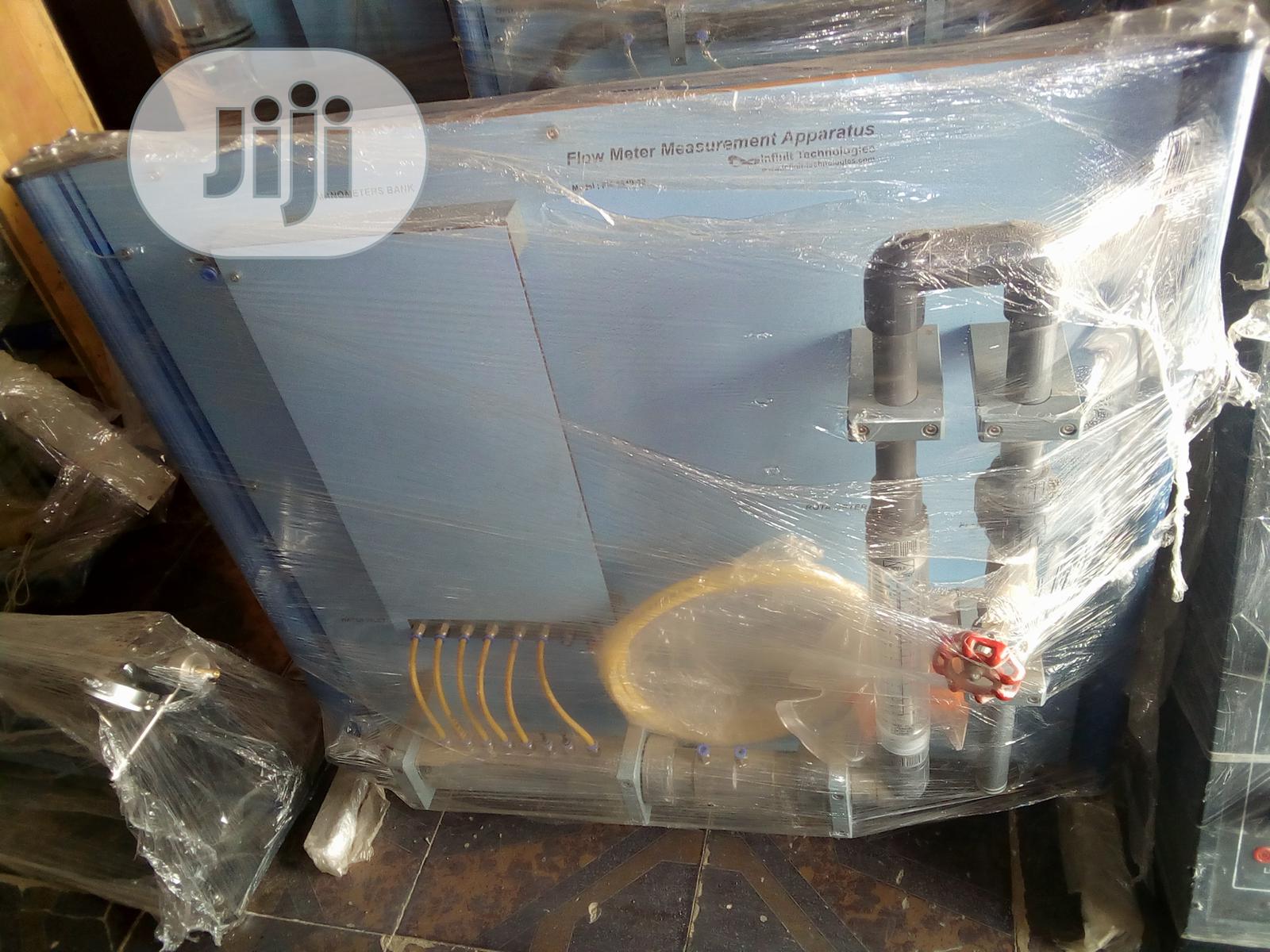

Flow Measurement Apparatus

+1

2

Store address

Lagos State • Amuwo-Odofin

23 Prudence Plaza Tools & Hardware Center Ojo Trade fair Complex Badagry Exp way Lagos

From Lagos island or ikeja get to mile 2, from mile 2 get to trade fair Complex Badagry Exp way Lago

Closed

• Mon - Sat, 09:00-18:00

4

+1

images

Lagos State • Surulere

Shop12 Justice plaza tools and hardwares trade fare international market

Closed

• Mon - Sat, 09:00-17:00

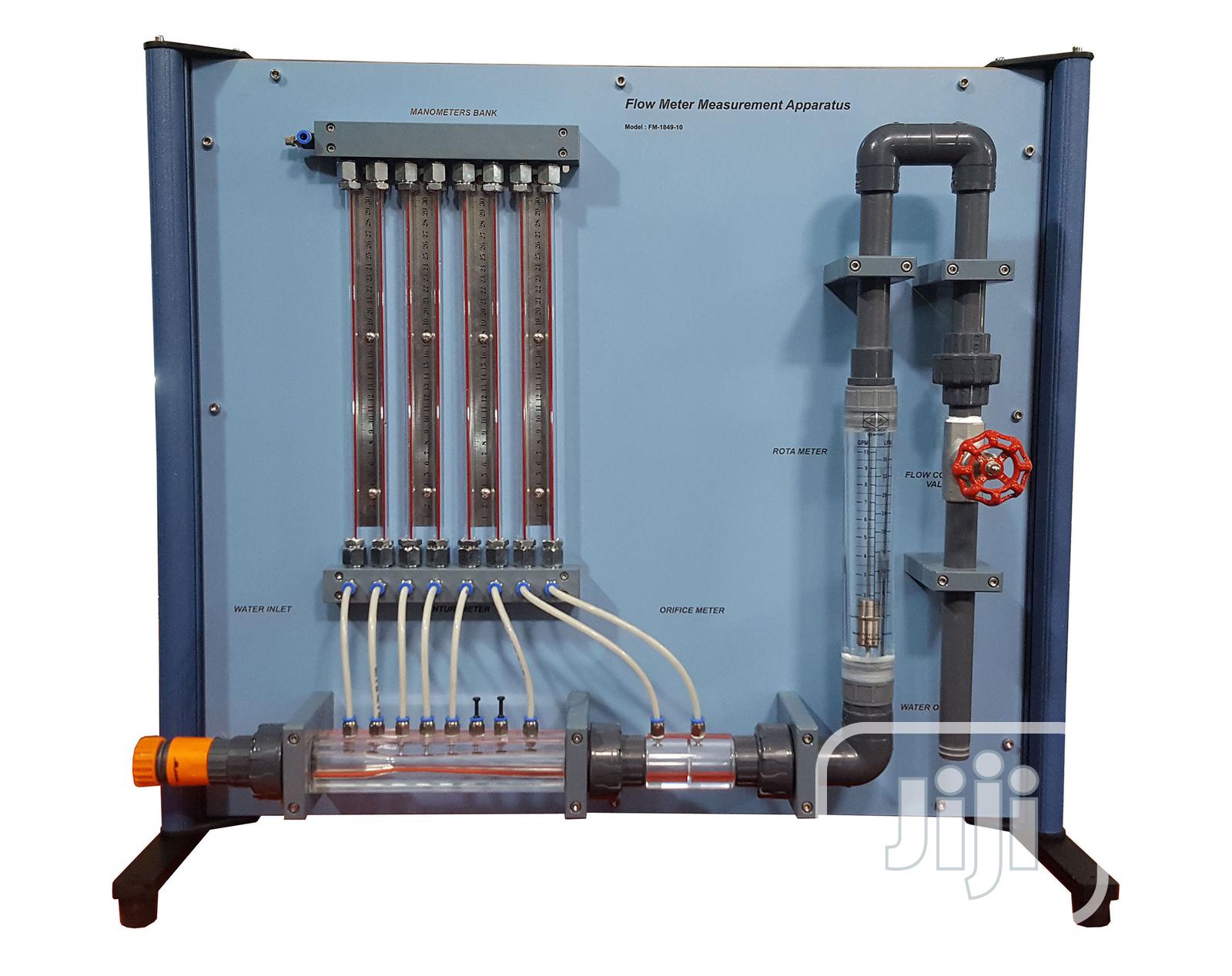

The apparatus consists of three very important flow measuring devices which are Venturi meter, orifice meter and rotameter. All three flow meters are extensively used in industrial sector. Flowmeter Measurement Apparatus is designed to operate together with a basic hydraulic bench or any water supply. It is to familiarize the students with typical methods of flow measurement of an incompressible fluid. The apparatus is able to demonstrate the flow measurement comparison by using a venturi device, orifice device and rotameter (Variable Area Flowmeter). The flow comparison can be further be used to compare against the flow measurement of the hydraulics bench which can be either by gravimeteric or Volumetric Method, depending on the type of hydraulics bench in use.
