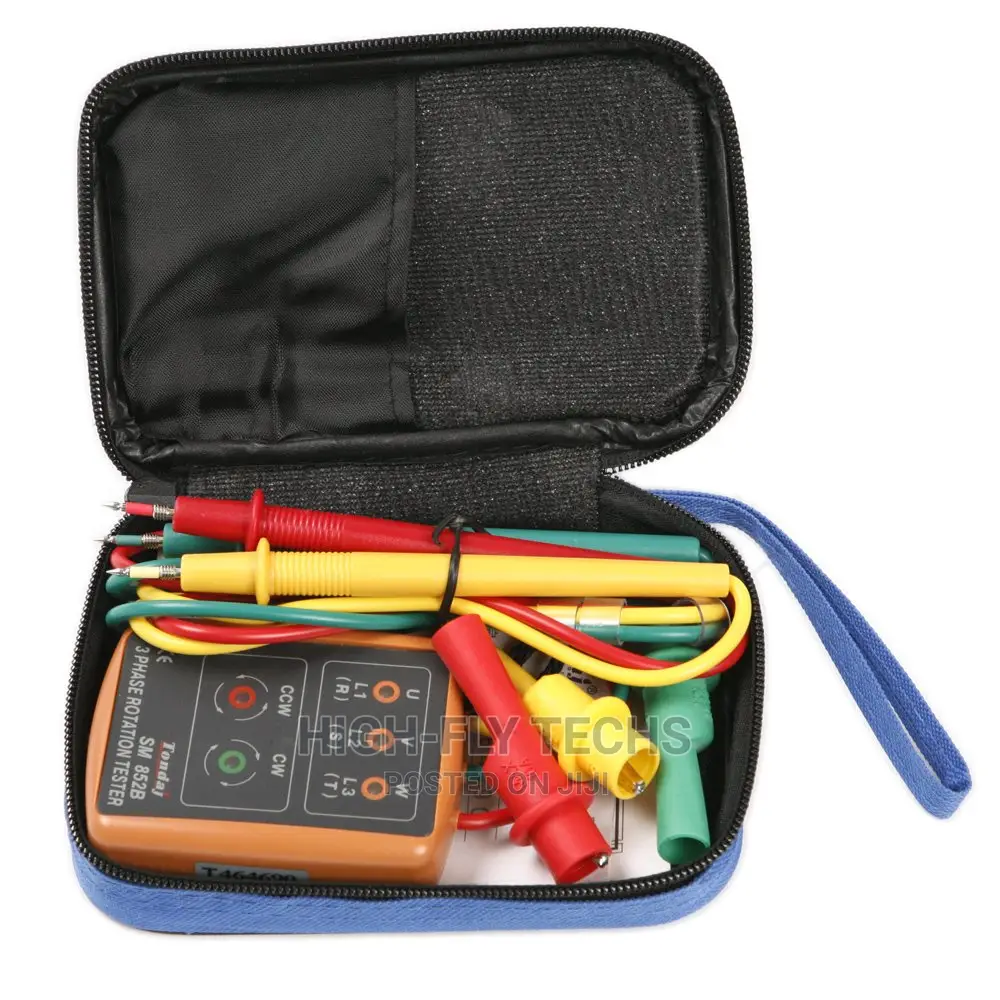

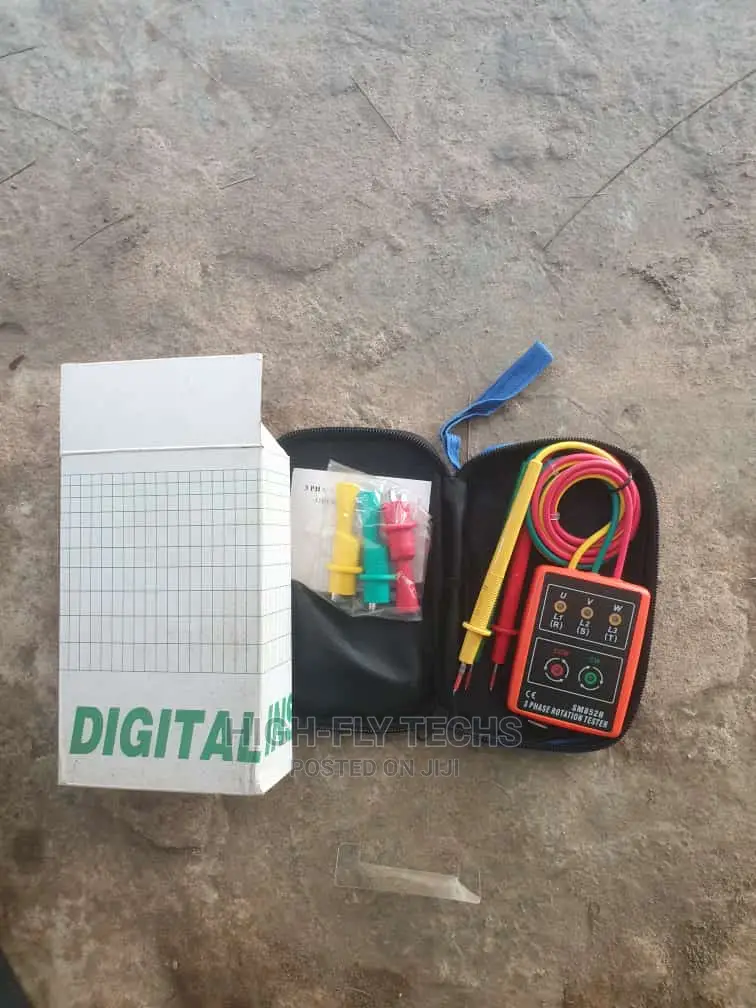

ATOPLEE 3 Phase Sequence Presence Rotation Tester

+1

Brand New

Condition

Atoplee

Brand

Detector meter

Type

Store address

Verified

4

+1

images

Lagos State • Apapa

Shop 35, No 10 ibomo Street Off Agarawu

Closed

• Mon - Sat, 08:00-18:00

View on map

This is a very useful instrument for checking the phase sequence with indication by LED's and Buzzer at the same time It is featured with the fast and ccurate measurement to check of the presence of open phase and phase sequence condition Operation Voltage : 60V ~ 600V AC, three phase Limit Support Voltage : 2000 V/min Operating Frequency Range : 20 Hz ~ 400 Hz Limit Time for Continuous Use: 60 minutes maximum at 60V AC 4 minutes maximum at 600V AC Test Leads: Double insulation Length of test leads: approx. 1 meter long (3.3 feet) Protection Level: 2000 V (impulse voltage4000 V) Operating Temperature: -10 ~ 60C (14 ~ 140F) dimension: approx. 85 (L) x 64 (W) x 23 (D)mm (3.2 x 2.5 x 0.9 inch)
