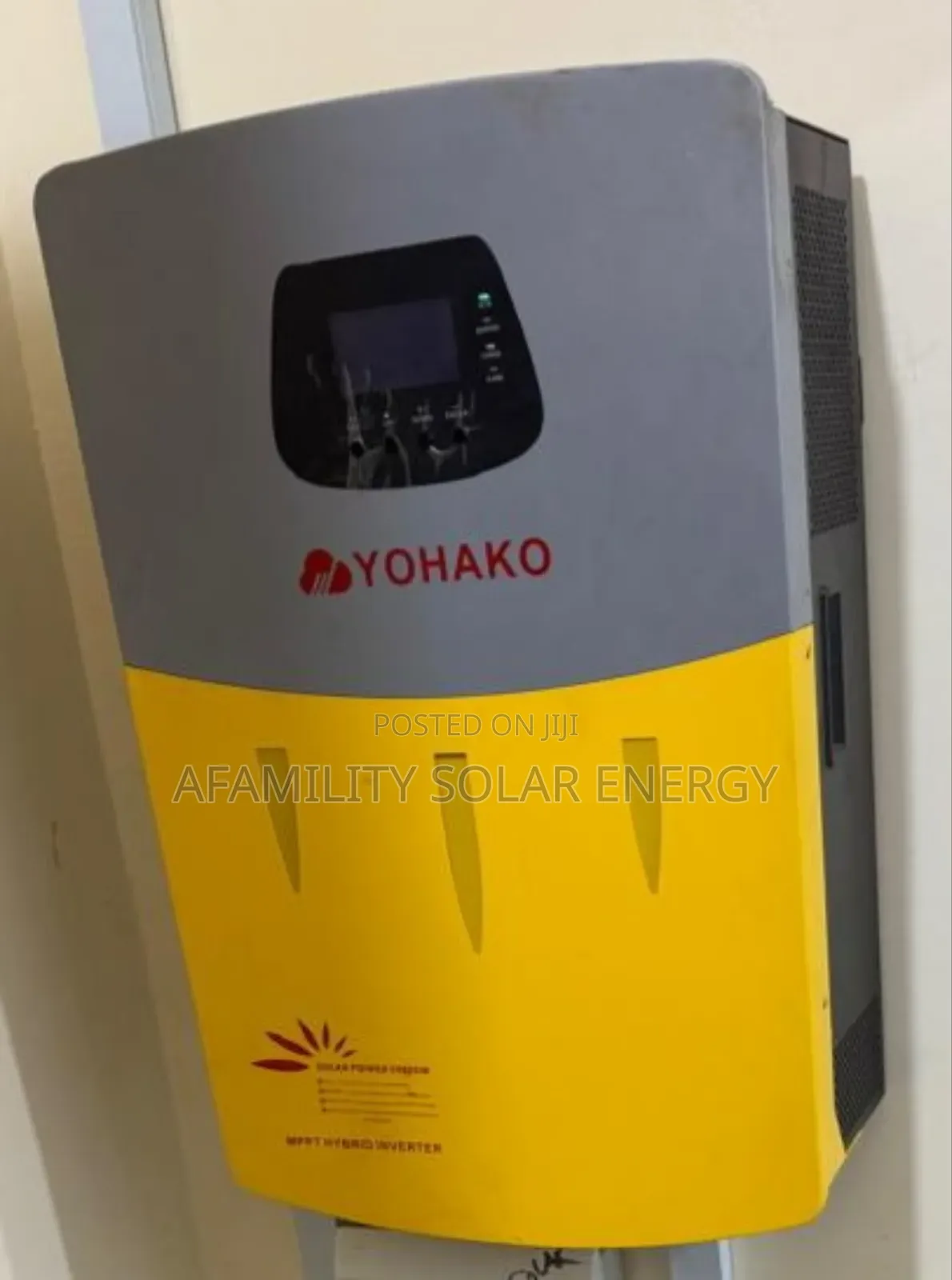

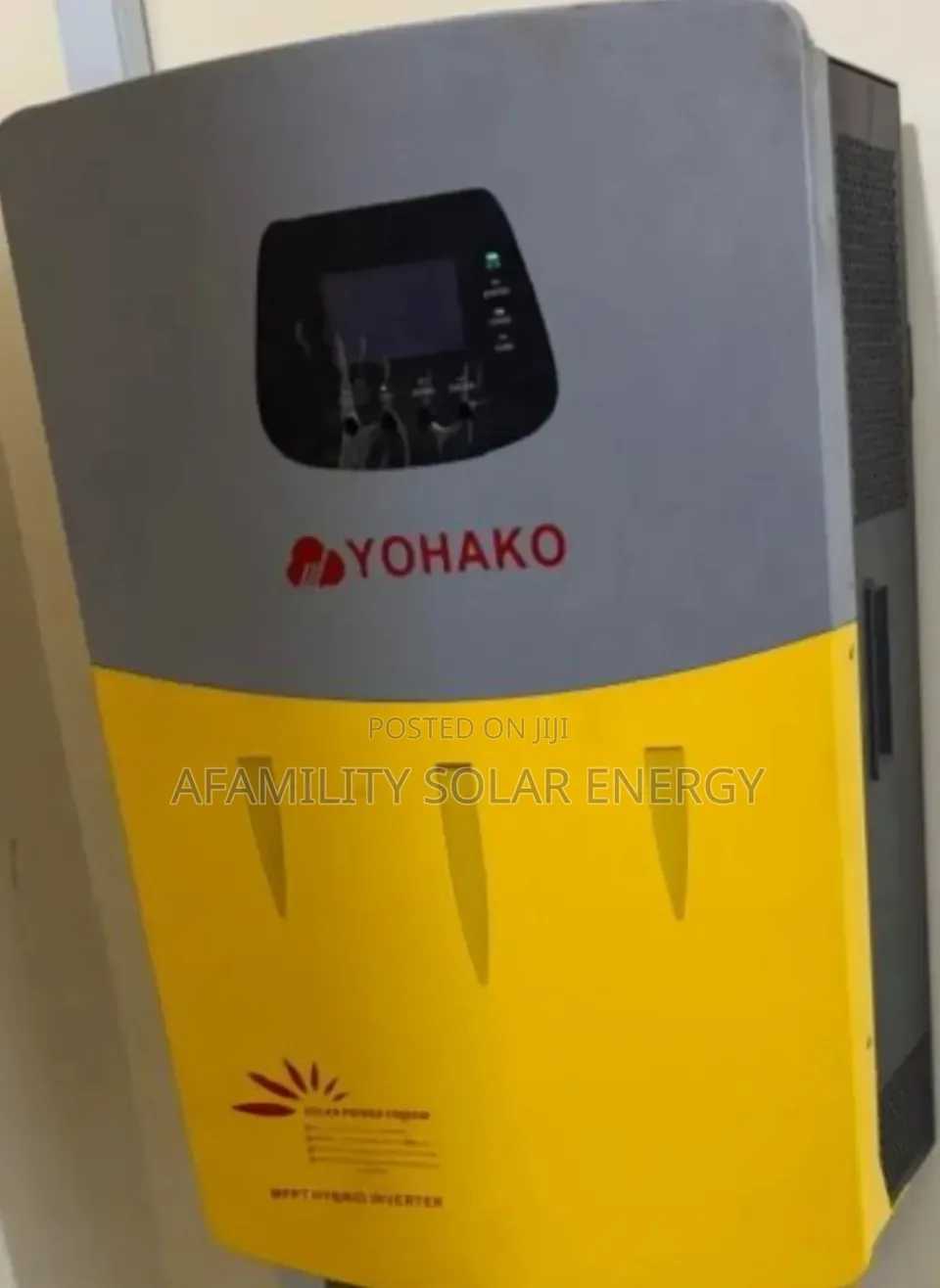

12kva 48v Hybrid Transformer Base

+1

Yohako

Brand

Yohako inverter

Type

Brand New

Condition

Store address

Lagos State • Ojo

G13 upstairs Alaba rango junction ojo Alaba international market opposite union bank

Behind union bank

Open

• Mon - Sun, 08:00-18:00

Rated output power: 12,000w (12kva) nominal dc input voltage: 48v ac output voltage: 220/230/240v (selectable) ac output frequency: 50/60hz (adjustable) surge power: approximately 24,000w (for 5 seconds) battery voltage range: 40–60v dc battery type compatibility: lifepo4, lead-acid, and gel batteries maximum battery charge/discharge current: up to 230a mppt operating voltage range: 85–450v dc maximum pv open-circuit voltage: 500v dc number of mppts: 2 maximum input current per mppt: 27a ups transfer time: 10ms typical (ups mode); 20ms typical (appliance mode) peak efficiency: approximately 93% cooling system: intelligent fan control operating temperature range: 0°c to 50°c protection features: overload, short circuit, overcharge, warranty: typically 12 months from authorized deale
