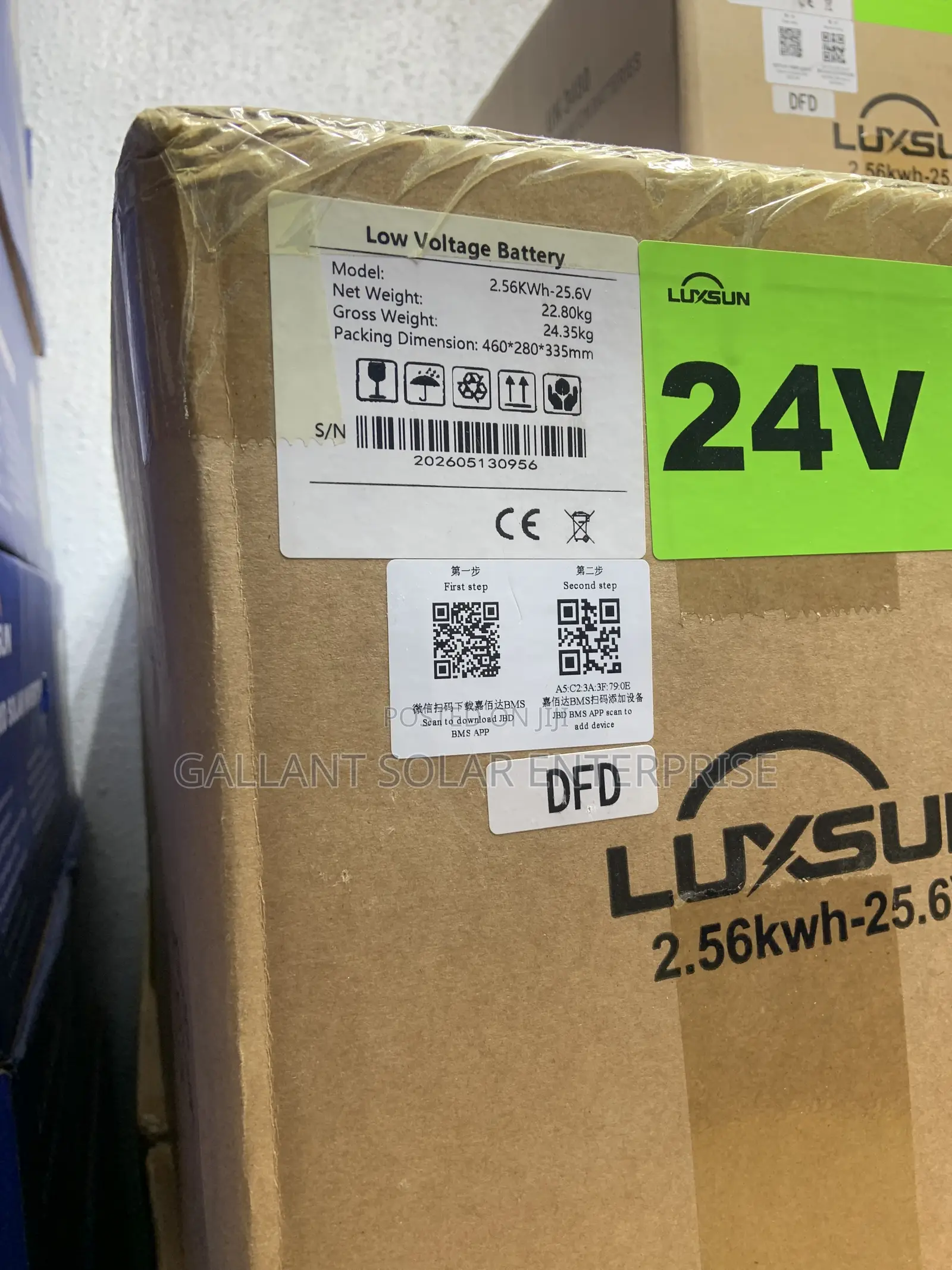

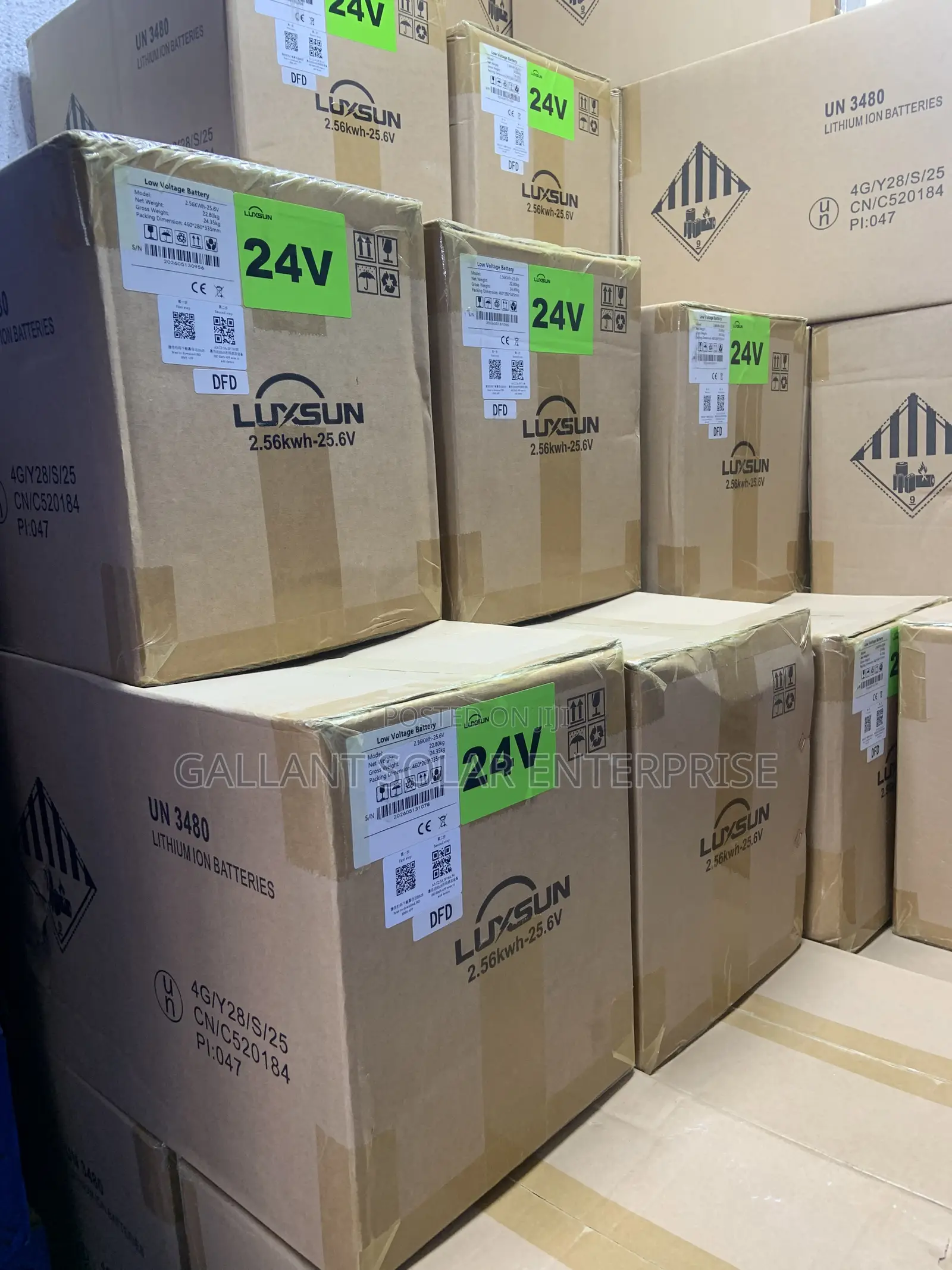

Luxsun 2.5kwh Lithium Battery 24v
Luxsun
Brand
Deep Cycle Batteries
Type
100aH
Battery Capacity
Brand New
Condition
24 V
Rated Voltage
25.6v nominal, 24v system
• capacity: 2.56kwh = 100ah @ 25.6v
• usable energy: 2.3kwh @ 90% dod
• battery type: lifepo4 prismatic cells grade a
• cycle life: 6000 cycles @ 80% dod. ∼10 years
• bms: 100a smart bms built-in with active balancing
charge / discharge
• max charge current: 50a
• max discharge current: 100a continuous, 120a peak 10s
• max charge voltage: 28.8v - 29.2v
• low voltage cut-off: 22v - 23v
• charging time: 2-2.5hrs with 50a charger/solar
• self discharge: <3% per month
communication & safety
• communication: rs485, can, rs232 + bluetooth + mobile app "luxsun bms"
• protection: overcharge, over-discharge, overcurrent, short circuit, high/low temp, cell balance
• parallel: up to 16 units parallel = 40.9kwh
• ip rating: ip20 indoor. wall mount
• operating temp: -10°
• warranty: 5 years
