Industrial Warehouse Design
Qudlaw design concepts
Company Name
Domestic & Industrial
Service Type
Architectural Drawing
Type
Other drawing programs, Using SolidWorks, Using AutoCAD, Using ArchiCAD, Hand drawing
Drawing Execution Technology
more than 5 years
Architectural Drawing Work Experience
Need a functional warehouse that saves space and looks professional?
**what you get - complete 2d package for approval:**

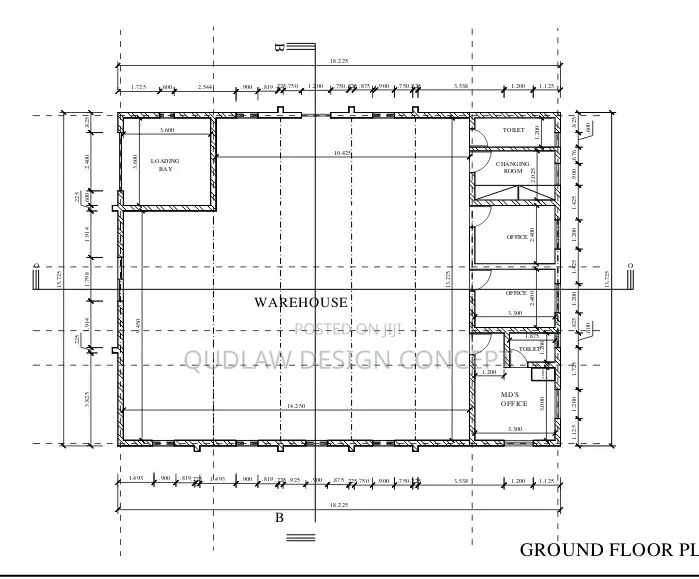

**ground floor plan**: full dimensions, room labels, wall thicknesses as shown
**site plan**: building positioning, truck access, parking, drainage
**roof plan**: industrial roof structure + drainage layout

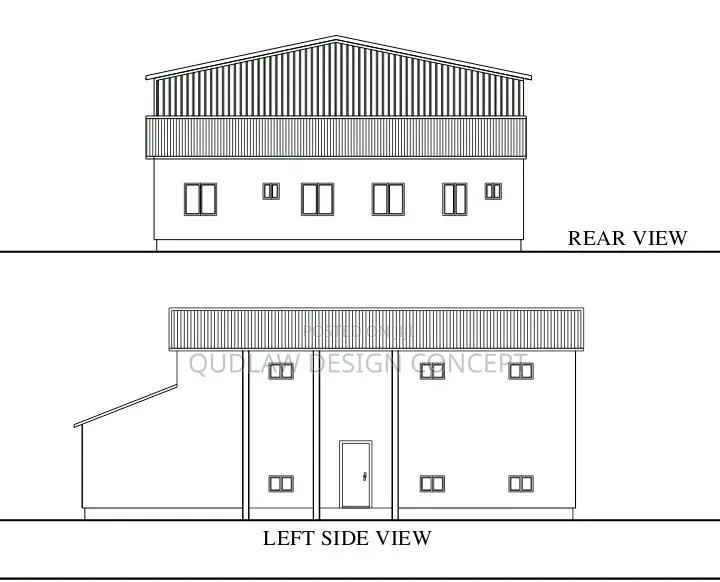

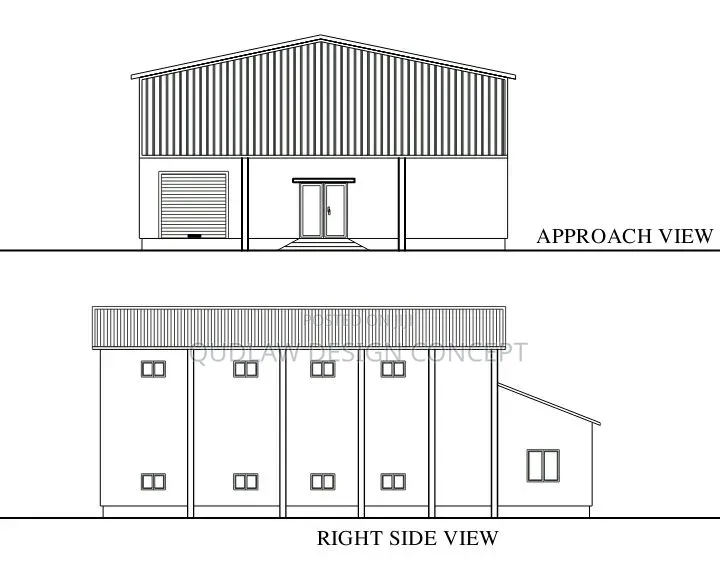

**all 4 elevations**: front, rear, side views with cladding/finish details

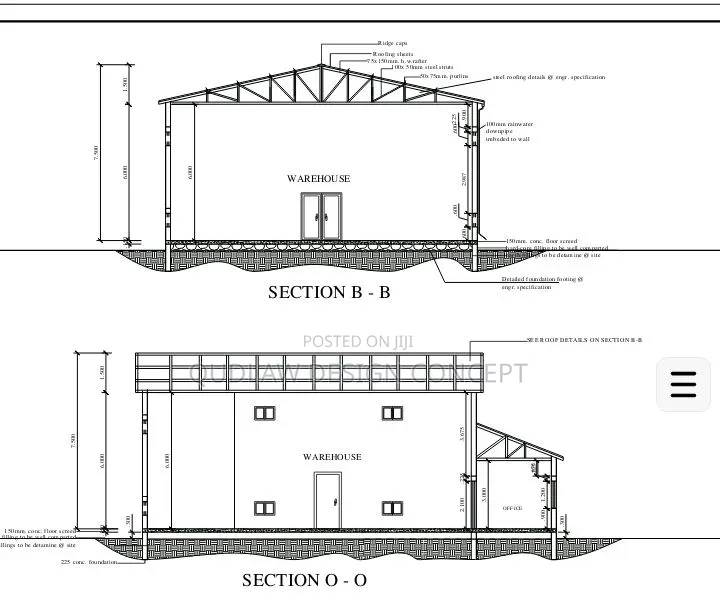

**sectional views**: foundation to roof details for builders
whatsapp/call: [] for quotation.
Contact for price
