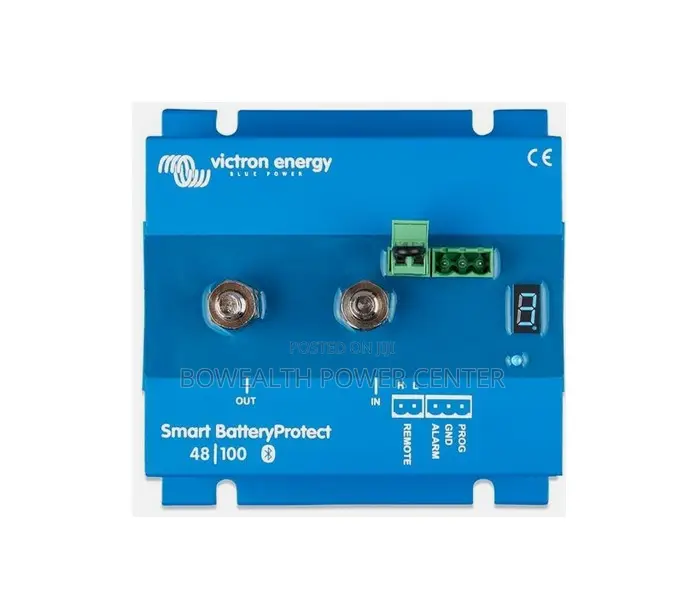

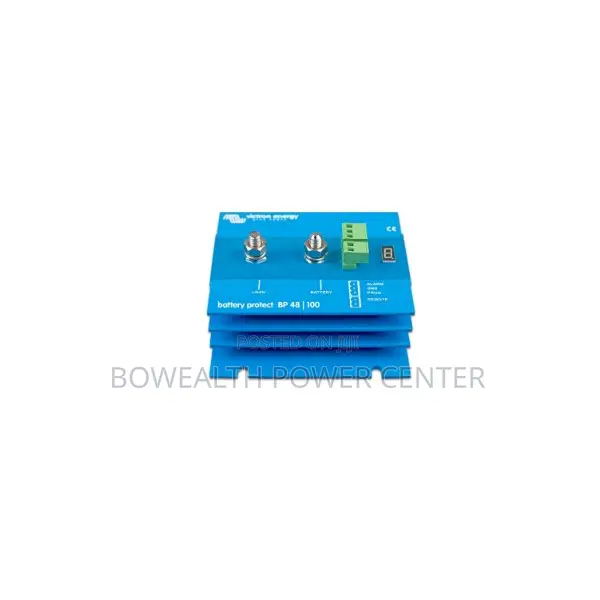

Victron Energy Battery Protect 48v-100a
Victron Energy
Brand
Fuses
Type
48V
Fuse Voltage
100amps
Amperage
Brand New
Condition
Store address
Lagos State • Ikeja
22, Abeokuta Street Anifwosose Ikeja
Off Oba Akran
Open now
• Mon - Sun, 07:00-23:59
Maximum continuous load current* 100A
Peak current 250A
Operating voltage range 24 –64V
Current consumption When on: 2 mA When off or low voltage shutdown: 1,5 mA
Alarm output delay 12 seconds
Maximum load on alarm output 50 mA (short circuit proof)
Load disconnect delay 90 seconds (immediate if triggered by the VE.Bus BMS)
Load reconnect delay 30 seconds
Default thresholds Disengage: 42V Engage: 48V
Operating temperature range Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
IP rating Electronics: IP67 (potted) Connections: IP00
Weight 0,8 kg 1.8 lbs
Connection M8
Mounting torque 9 Nm
Dimensions (hxwxd) 62 x 123 x 120 mm 2.5 x 4.9 x 4.8 inch
* The BatteryProtect is not designed for reverse currents from charging sources
